  • Page 1 User Guide User Guide R3000 LG Industrial LoRaWAN Gateway Low Power Consumption & Long Rang Communication Guangzhou Robustel LTD www.robustel.com...
  • Page 2 The contents of this document are subject to change without notice due to continued progress in methodology, design and manufacturing. Robustel shall have no liability for any error or damage of any kind resulting from the use of this document.
  • Page 3 Robustel accepts no responsibility for damages of any kind resulting from delays or errors in data transmitted or received using the gateway, or for failure of the gateway to transmit or receive such data.
  • Page 4 Robustel R3000 LG User Guide Protecting Your Gateway To ensure error-free usage, please install and operate your gateway with care. Do remember the following: Do not expose the gateway to extreme conditions such as high humidity / rain, high temperature, direct sunlight, ...
  • Page 5 Robustel R3000 LG User Guide Regulatory and Type Approval Information Table 1: Directives 2011/65/EC Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and...
  • Page 6 Robustel R3000 LG User Guide Document History Updates between document versions are cumulative. Therefore, the latest document version contains all updates made to previous versions. Date Firmware Version Document Version Change Description 16 Oct., 2017 1.0.0 v.1.0.0 Initial release 20 Dec., 2017 1.0.0...

  • Page 7: Table Of Contents

    Robustel R3000 LG User Guide Contents Chapter 1 Product Overview ........................... 9 Key Features ............................... 9 Package Contents ............................. 10 Specifications ............................12 Dimensions ............................... 15 Ordering Information ..........................15 Chapter 2 Hardware Installation ........................16 PIN Assignment ............................16 LED Indicators ............................
  • Page 8 Robustel R3000 LG User Guide 3.27 Services > GPS ............................95 3.28 Services > Web Server ..........................98 3.29 Services > Advanced ..........................99 3.30 System > Debug ............................101 3.31 System > Update ............................ 102 3.32 System > App Center ..........................102 3.33...

  • Page 9: Chapter 1 Product Overview

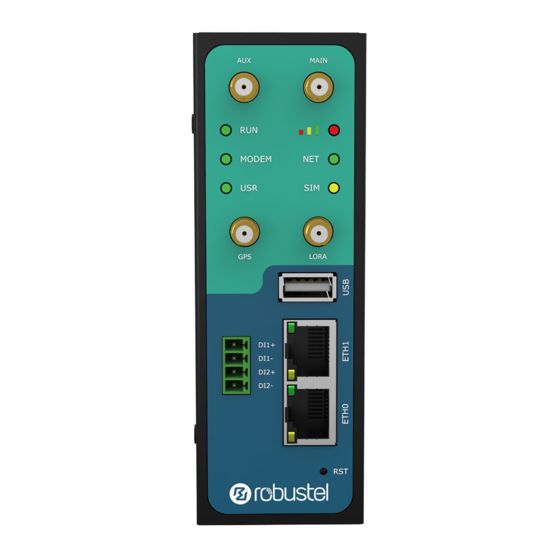

    R3000 LG allows access to various types of LoRa application nodes, and supports wired Ethernet and wireless 4G/3G/2G access to the cloud platform, mainly for LoRaWAN data transmission between LoRa node and cloud platform.

  • Page 10: Package Contents

    1 x 4-pin 3.5 mm male terminal block for digital input interface  1 x Quick Start Guide with download link of other documents or tools Note: If any of the above items is missing or damaged, please contact your Robustel sales representative. RT_UG_R3000 LG_v.1.0.4 19 Jul., 2018...
  • Page 11 Robustel R3000 LG User Guide Optional Accessories (sold separately)  3G/4G SMA cellular antenna (stubby/magnet optional) Stubby antenna Magnet antenna  RP-SMA LoRa stubby antenna  GPS antenna  Wall mounting kit  35 mm DIN rail mounting kit RT_UG_R3000 LG_v.1.0.4 19 Jul., 2018...

  • Page 12: Specifications

    Robustel R3000 LG User Guide  Ethernet cable  AC/DC power adapter (12V DC, 1.5 A; EU/US/UK/AU plug optional) 1.3 Specifications LoRa Interface Number of antennas: 1  Connector: SMA female with 50 ohms impedance  Standards: 433-434 MHz (Europe) ...
  • Page 13 Robustel R3000 LG User Guide WCDMA/TD-SCDMA: max DL/UL = 2.8 Mbps/384 Kbps EVDO: max DL/UL = 5.4 Mbps/14.7 Kbps HSPA+: max DL/UL = 21/5.76 Mbps, fallback to 2G DC-HSPA+: max DL/UL = 42/5.76 Mbps, fallback to 2G FDD LTE: max DL/UL = 100/50 Mbps, fallback to 2G/3G...
  • Page 14  App Center (Available Apps for RobustOS) Apps*: L2TP, PPTP, DMVPN, RobustVPN, VRRP, QoS, SNMP, Language, RobustLink  *Request on demand. For more Apps please visit www.robustel.com. Power Supply and Consumption Connector: 3-pin 5 mm female socket with lock ...

  • Page 15: Dimensions

    Operating -40 to +75 °C -40 to +75 °C Environment 5 to 95% RH 5 to 95% RH *For more information about 4G frequency bands in different countries, please contact your Robustel sales representative. RT_UG_R3000 LG_v.1.0.4 19 Jul., 2018 15/133...

  • Page 16: Chapter 2 Hardware Installation

    Robustel R3000 LG User Guide Chapter 2 Hardware Installation 2.1 PIN Assignment Debug RS-232 RS-485 Direction Gateway  Device  Gateway Device  Data+(A) Gateway Device Gateway  Device Data+(B)  Gateway Device Gateway  Device Polarity Positive Negative Direction Gateway ...

  • Page 17: Led Indicators

    Robustel R3000 LG User Guide 2.2 LED Indicators The R3000 LG has been designed to be placed on a desktop. Below is the front view of the R3000 LG. Name Color Status Description Green On, fast blinking Gateway is powered on...

  • Page 18: Usb Interface

    Robustel R3000 LG User Guide Yellow On, solid Connection to 3G network is established On, solid Connection to 2G network is established Connection to network is not established or establishing Green On, blinking Backup card is being used Main card is being used Note: You can choose the display type of USR LED.

  • Page 19: Reset Button

    Robustel R3000 LG User Guide 2.4 Reset Button Function Operation Press and hold the RST button for 2 to 7 seconds under the Reboot operating status. Restore to Wait for 3 seconds after powering up the gateway, press and factory default...

  • Page 20: Ethernet Port

    Robustel R3000 LG User Guide 2.5 Ethernet Port There are two Ethernet ports on R3000 LG, including ETH0 and ETH1. Each Ethernet port has two LED indicators. The yellow one is a link indicator, while the green one is a speed indicator. For details about status, see the table below.

  • Page 21: Insert Or Remove Sim Card/Micro Sd Card

    Robustel R3000 LG User Guide 2.6 Insert or Remove SIM Card/Micro SD Card Insert or remove the SIM/Micro SD card as shown in the following steps. Insert SIM card/Micro SD card  Make sure gateway is powered off. To remove slot cover, loosen the screws associated with the cover by using a screwdriver and then find the SIM card slot/Micro SD card slot.

  • Page 22: Attach External Antenna (Sma Type)

    Robustel R3000 LG User Guide Do not touch the metal of the card surface in case information in the card will lose or be destroyed. Do not bend or scratch the card. Keep the card away from electricity and magnetism.

  • Page 23: Mount The Gateway

    Robustel R3000 LG User Guide 2.8 Mount the Gateway The gateway can be placed on a desktop or mounted to a wall or a 35 mm DIN rail. Two methods for mounting the gateway  Wall mounting (measured in mm) Use 3 pcs of M3*4 flat head Phillips screws to fix the wall mounting kit to the gateway, and then use 2 pcs of M3 drywall screws to mount the gateway associated with the wall mounting kit on the wall.

  • Page 24: Ground The Gateway

    Robustel R3000 LG User Guide Use 3 pcs of M3*6 flat head Phillips screws to fix the DIN rail to the gateway, and then hang the DIN rail on the mounting bracket. It is necessary to choose a standard bracket.

  • Page 25: Power Supply

    2.10 Power Supply R3000 LG supports reverse polarity protection, but always refers to the figure above to connect the power adapter correctly. There are two cables associated with the power adapter. Following to the color of the head, connect the cable marked red to the positive pole through a terminal block, and connect the yellow one to the negative in the same way.

  • Page 26: Chapter 3 Initial Configuration

    Robustel R3000 LG User Guide Chapter 3 Initial Configuration The gateway can be configured through your web browser that including IE 8.0 or above, Chrome and Firefox, etc. A web browser is included as a standard application in the following operating systems: Linux, Mac OS, Windows 98/NT/2000/XP/Me/Vista/7/8, etc.
  • Page 27 Robustel R3000 LG User Guide Click Properties in the window of Local Area Connection Status. Choose Internet Protocol Version 4 (TCP/IPv4) and click Properties. RT_UG_R3000 LG_v.1.0.4 19 Jul., 2018 27/133...
  • Page 28 Robustel R3000 LG User Guide Two ways for configuring the IP address of PC. Obtain an IP address automatically: Use the following IP address: (Configured a static IP address manually within the same subnet of the gateway) Click OK to finish the configuration.

  • Page 29: Factory Default Settings

    Robustel R3000 LG User Guide 3.2 Factory Default Settings Before configuring your gateway, you need to know the following default settings. Item Description Username admin Password admin ETH0 192.168.0.1/255.255.255.0, LAN mode ETH1 192.168.0.1/255.255.255.0, LAN mode DHCP Server Enabled 3.3 Log in the Gateway To log in to the management page and view the configuration status of your gateway, please follow the steps below.

  • Page 30: Control Panel

    Robustel R3000 LG User Guide 3.4 Control Panel After logging in, the home page of the R3000 LG’s web interface is displayed, for example. Using the original password to log in the gateway, the page will pop up the following tab It is strongly recommended for security purposes that you change the default username and/or password.

  • Page 31: Status

    Robustel R3000 LG User Guide login web on this browser without a password before timeout. Submit Click to save the modification on current configuration page. Cancel Click to cancel the modification on current configuration page. Note: The steps of how to modify configuration are as bellow: Modify in one page;...
  • Page 32 Robustel R3000 LG User Guide Firmware Version Show the firmware version running on the gateway. Hardware Version Show the current hardware version. Kernel Version Show the current kernel version. Serial Number Show the serial number of your device. Internet Status...

  • Page 33: Interface > Link Manager

    Warm Backup: The inactive link is online on standby  Load Balancing: Use two links simultaneously Note: R3000 LG do not support warm backup and load balancing in the situation of two WWAN links. Revert Interval Specify the number of minutes that elapses before the primary link is checked if a backup link is being used in cold backup mode.
  • Page 34 Robustel R3000 LG User Guide Link Settings allows you to configure the parameters of link connection, including WWAN1/WWAN2 and WAN. It is recommended to enable Ping detection to keep the gateway always online. The Ping detection increases the reliability and also costs the data traffic.
  • Page 35 Robustel R3000 LG User Guide Link Settings (WWAN) Item Description Default General Settings Index Indicate the ordinal of the list. Type Show the type of the link. WWAN1 Description Enter a description for this link. Null WWAN Settings Automatic APN Click the toggle button to enable/disable the “Automatic APN Selection”...
  • Page 36 Robustel R3000 LG User Guide Link Settings (WWAN) Item Description Default Data Allowance Set the monthly data traffic limitation. The system will record the data traffic statistics when data traffic limitation (MiB) is specified. The traffic record will be displayed in Interface > Link Manager > Status > WWAN Data Usage Statistics.
  • Page 37 Robustel R3000 LG User Guide Gateway will obtain IP automatically from DHCP server if choosing “DHCP” as connection type. The window is displayed as below. The window is displayed as below when choosing “Static” as the connection type. The window is displayed as below when choosing “PPPoE” as the connection type.
  • Page 38 Robustel R3000 LG User Guide Link Settings (WAN) Item Description Default General Settings Index Indicate the ordinal of the list. Type Show the type of the link. Description Enter a description for this link. Null Connection Type Select from “DHCP”, “Static” or “PPPoE”.
  • Page 39 Robustel R3000 LG User Guide Enable Click the toggle button to enable/disable the ping detection mechanism, a keepalive policy of the gateway. Primary Server Gateway will ping this primary address/domain name to check that if the 8.8.8.8 current connectivity is active.
  • Page 40 Robustel R3000 LG User Guide Click the row of the link, and it will show the details information of the current link connection under the row. Click the button to clear SIM1 or SIM2 monthly data traffic usage statistics. Data statistics will be displayed only if enable the Data Allowance function in Interface >...

  • Page 41: Interface > Lan

    3.7 Interface > LAN This section allows you to set the related parameters for LAN port. There are two LAN ports on R3000 LG, including ETH0 and ETH1. The ETH0 and ETH1 can freely choose from lan0 and lan1, but at least one LAN port must be assigned as lan0.
  • Page 42 Robustel R3000 LG User Guide The window is displayed as below when choosing “Server” as the mode. The window is displayed as below when choosing “Relay” as the mode. Item Description Default DHCP Settings Enable Click the toggle button to enable/disable the DHCP function.
  • Page 43 Robustel R3000 LG User Guide Item Description Default IP Pool End Define the end of the pool of IP addresses which will be leased to 192.168.0.100 DHCP clients. Subnet Mask Define the subnet mask of IP address obtained by DHCP clients from 255.255.255.0...
  • Page 44 Robustel R3000 LG User Guide IP Settings Item Description Default Index Indicate the ordinal of the list. Interface Show the editing port. IP Address Set the multiple IP address of the LAN port. Null Netmask Set the multiple Netmask of the LAN port.
  • Page 45 Robustel R3000 LG User Guide Status This section allows you to view the status of LAN connection. Click the row of status, the details status information will be displayed under the row. Please refer to the screenshot below. RT_UG_R3000 LG_v.1.0.4 19 Jul., 2018...

  • Page 46: Interface > Ethernet

    3.8 Interface > Ethernet This section allows you to set the related parameters for Ethernet. There are two Ethernet ports on R3000 LG, including ETH0 and ETH1. The ETH0 on the gateway can be configured as either a WAN or a LAN port, while ETH1 can only be configured as a LAN port.

  • Page 47: Interface > Cellular

    3.9 Interface > Cellular This section allows you to set the related parameters of Cellular. The R3000 LG has two SIM card slots, but do not support two SIM cards online simultaneously due to its single-module design. If insert single SIM card at the first time, SIM1 slot and SIM2 slots are available.
  • Page 48 Robustel R3000 LG User Guide Click of SIM 1 to edit the parameters. The window is displayed as below when choosing “Auto” as the network type. The window is displayed as below when choosing “Specify” as the band select type.
  • Page 49 Robustel R3000 LG User Guide Cellular Item Description Default General Settings Index Indicate the ordinal of the list. SIM Card Show the currently editing SIM card. SIM1 Phone Number Enter the phone number of the SIM card. Null PIN Code Enter a 4-8 characters PIN code used for unlocking the SIM.
  • Page 50 Robustel R3000 LG User Guide Click the row of status, the details status information will be displayed under the row. Status Item Description Index Indicate the ordinal of the list. Modem Status Show the status of the radio module. Modem Model Show the model of the radio module.

  • Page 51: Interface > Usb

    Robustel R3000 LG User Guide Status Item Description Cell ID Show the current cell ID used for locating the gateway. IMEI Show the IMEI (International Mobile Equipment Identity) number of the radio module. Firmware Version Show the current firmware version of the radio module.

  • Page 52: Interface > Di

    3.11 Interface > DI This section allows you to set the DI parameters. Digital Input interface is a specific interface for R3000 LG, which can be used for triggering alarm. Click the right-most button of index 1 as below.
  • Page 53 Robustel R3000 LG User Guide General Settings @ DI Item Description Default Index Indicate the ordinal of the list. Enable Click the toggle button to enable/disable this DI. Mode Select from “ON-OFF” or “Counter”. ON-OFF  ON-OFF: DI interface support ON and OFF mode (high or low level electrical) trigger DI alarm.

  • Page 54: Interface > Serial Port

    Robustel R3000 LG User Guide 3.12 Interface > Serial Port This section allows you to set the serial port parameters. Serial port provides a way to transfer serial data to IP data, or vice versa, and transmit these data via wired or wireless network to achieve data transparent transmission. R3000 LG supports one RS-232 or one RS-485 across a 7-pin 3.5 mm male socket with lock.
  • Page 55 Robustel R3000 LG User Guide “57600” , “115200” or “230400”. Data Bits Select from “7” or “8”. Stop Bits Select from “1” or “2”. Parity Select from “None”, “Odd” or “Even”. None Flow control Select from “None”, “Software” or “Hardware”.
  • Page 56 Robustel R3000 LG User Guide The window is displayed as below when choosing “Transparent” as the application mode and “Robustlink” as the protocol.  The window is displayed as below when choosing “Modbus RTU Gateway” as the application mode and “TCP Client”...
  • Page 57 Robustel R3000 LG User Guide  The window is displayed as below when choosing “Modbus ASCII Gateway” as the application mode and “TCP Client” as the protocol. The window is displayed as below when choosing “Modbus ASCII Gateway” as the application mode and “TCP Server”...
  • Page 58 UDP: Gateway works as UDP client  Robustlink: Gateway will automatically upload the serial data to Robustlink platform under the Robustlink protocol. Robustlink is a management platform from Robustel. This function only available when Gateway is connects to Robustlink Server Address...

  • Page 59: Interface > Lora

    Robustel R3000 LG User Guide 3.13 Interface > LoRa This section allows you to set the LoRaWAN parameters. General Settings Click “General Settings > Gateway Settings” to configure your node parameters. Here takes an example as below. Gateway Settings Item...
  • Page 60 Robustel R3000 LG User Guide RF Settings Click to add a channel. The maximum count is 8. Use LoRa Standard channel to establish communication between nodes and gateway. RT_UG_R3000 LG_v.1.0.4 19 Jul., 2018 60/133...
  • Page 61 Robustel R3000 LG User Guide Use FSK modulation instead of LoRa. RF Settings Item Description Default RF Power Settings RF Power Limit Used to indicate the maximum transmit power limit for current No Limit gateway.  No_Limit: Transmit power is not limited, depending on the transmit power value sent by the LoRaWAN server ...
  • Page 62 Robustel R3000 LG User Guide RF Settings Item Description Default IF frequency Enter the IF frequency valued from -500000 to 500000, and measured in Hz. The offset between the center frequency of specific channel and the center frequency of chain 0/1.

  • Page 63: Network > Route

    Robustel R3000 LG User Guide Status Item Description Basic Status Show the LoRaWAN status of your gateway. Packet Forwarder (Protocol) Show the version of Packet forwarder. HAL Library Version Show the driver version of LoRaWAN chipset inside gateway. Uplink RF packets received Show the count of data packet from node to gateway.
  • Page 64 Robustel R3000 LG User Guide Click to add static routes. The maximum count is 20. Static Route Item Description Default Index Indicate the ordinal of the list. Description Enter a description for this static route. Null Destination Enter the IP address of destination host or destination network.

  • Page 65: Network > Firewall

    Robustel R3000 LG User Guide 3.15 Network > Firewall This section allows you to set the firewall and its related parameters, including Filtering, Port Mapping and DMZ. Filtering The filtering rules can be used to either accept or block certain users or ports from accessing your gateway.
  • Page 66 Robustel R3000 LG User Guide Filtering Item Description Default Enable Local SSH Access Click the toggle button to enable/disable this option. When enabled, the LAN user can access the gateway locally via SSH. Enable Remote Telnet Access Click the toggle button to enable/disable this option. When enabled, the Internet user can access the gateway remotely via Telnet.
  • Page 67 Robustel R3000 LG User Guide The window is displayed as below when choosing “TCP”, “UDP” or “TCP-UDP” as the protocol. Here take “TCP” as an example. Filtering Rules Item Description Default Index Indicate the ordinal of the list. Description Enter a description for this filtering rule.
  • Page 68 Robustel R3000 LG User Guide Click to add port mapping rules. The maximum rule count is 40. Port Mapping Rules Item Description Default Index Indicate the ordinal of the list. Description Enter a description for this port mapping. Null Remote IP Specify the host or network which can access the local IP address.
  • Page 69 Robustel R3000 LG User Guide Custom Iptables Rule Item Description Default Index Indicate the ordinal of the list. Description Enter a description for this rule. Null Rule Specify one iptables rule. e.g -I INPUT -s 192.168.0.2 -j ACCEPT Null DMZ Settings...

  • Page 70: Network > Ip Passthrough

    Robustel R3000 LG User Guide 3.16 Network > IP Passthrough Click Network > IP Passthrough > IP Passthrough to enable or disable the IP Pass-through option. If gateway enables the IP Pass-through, the terminal device (such as PC) will enable the DHCP Client mode and connect to LAN port of the gateway;...
  • Page 71 Robustel R3000 LG User Guide Tunnel Click to add tunnel settings. The maximum count is 3. General Settings @ Tunnel Item Description Default Index Indicate the ordinal of the list. Enable Click the toggle button to enable/disable this IPsec tunnel.
  • Page 72 Robustel R3000 LG User Guide The window is displayed as below when choosing “PSK” as the authentication type. The window is displayed as below when choosing “CA” as the authentication type. The window is displayed as below when choosing “xAuth PSK” as the authentication type.
  • Page 73 Robustel R3000 LG User Guide The window is displayed as below when choosing “xAuth CA” as the authentication type. IKE Settings Item Description Default IKE Type Select from “IKEv1” or “IKEv2” as IKE version. IKEv1 Negotiation Mode Select from “Main” and “Aggressive” for the IKE negotiation mode in phase 1.
  • Page 74 Robustel R3000 LG User Guide IKE Settings Item Description Default security gateway, e.g., test@robustel.com Remote ID Type Select from “Default”, “FQDN” and “User FQDN” for IKE negotiation. Default  Default: Use an IP address as the ID in IKE negotiation ...
  • Page 75 Robustel R3000 LG User Guide If choose AH as protocol, the window of SA Settings is displayed as below. SA Settings Item Description Default Encrypt Algorithm Select from “3DES”, “AES128” or “AES256” when you select “ESP” in 3DES “Protocol”. Higher security means more complex implementation and lower speed.
  • Page 76 Robustel R3000 LG User Guide SA Settings Item Description Default no DPD acknowledgment within the DPD packet retransmission interval, it retransmits the DPD hello. If the local end still receives no DPD acknowledgment after having made the maximum number of retransmission attempts, it considers the peer already dead, and clears the IKE SA and the IPsec SAs based on the IKE SA.

  • Page 77: Vpn > Openvpn

    Robustel R3000 LG User Guide x509 Item Description Default Certificate Files Index Indicate the ordinal of the list. Filename Show the imported certificate’s name. Null File Size Show the size of the certificate file. Null Last Modification Show the timestamp of that the last time to modify the certificate file.
  • Page 78 Robustel R3000 LG User Guide The window is displayed as below when choosing “P2P” as the mode. RT_UG_R3000 LG_v.1.0.4 19 Jul., 2018 78/133...
  • Page 79 Robustel R3000 LG User Guide The window is displayed as below when choosing “Preshared” as the authentication type. RT_UG_R3000 LG_v.1.0.4 19 Jul., 2018 79/133...
  • Page 80 Robustel R3000 LG User Guide The window is displayed as below when choosing “Password” as the authentication type. RT_UG_R3000 LG_v.1.0.4 19 Jul., 2018 80/133...
  • Page 81 Robustel R3000 LG User Guide The window is displayed as below when choosing “X509CA” as the authentication type. RT_UG_R3000 LG_v.1.0.4 19 Jul., 2018 81/133...
  • Page 82 Robustel R3000 LG User Guide The window is displayed as below when choosing “X509CA Password” as the authentication type. General Settings @ OpenVPN Item Description Default Index Indicate the ordinal of the list. Enable Click the toggle button to enable/disable this OpenVPN tunnel.
  • Page 83 Robustel R3000 LG User Guide General Settings @ OpenVPN Item Description Default Authentication Type Select from “None”, “Preshared”, “Password”, “X509CA” and “X509CA None Password”. Note: “None” and “Preshared” authentication type are only working with P2P mode. Username Enter the username used for “Password” or “X509CA Password”...
  • Page 84 Robustel R3000 LG User Guide Advanced Settings @ OpenVPN Item Description Default Enable HMAC Firewall Click the toggle button to enable/disable this option. Add an additional layer of HMAC authentication on top of the TLS control channel to protect against DoS attacks.

  • Page 85: Vpn > Gre

    Robustel R3000 LG User Guide Certificate Files Click on “Choose File” to locate the certificate file from your computer, and Null then import this file into your gateway. The correct file format is displayed as follows: @ca.crt @remote.crt @local.crt @private.key @crl.pem...

  • Page 86: Services > Syslog

    Robustel R3000 LG User Guide Tunnel Settings @ GRE Item Description Default Index Indicate the ordinal of the list. Enable Click the toggle button to enable/disable this GRE tunnel. Description Enter a description for this GRE tunnel. Null Remote IP Address Set the remote real IP address of the GRE tunnel.

  • Page 87: Services > Event

    Robustel R3000 LG User Guide The window is displayed as below when enabling the “Log to Remote” option. Syslog Settings Item Description Default Enable Click the toggle button to enable/disable the Syslog settings option. Syslog Level Select from “Debug”, “Info”, “Notice”, “Warning” or “Error”, which from low to Debug high.
  • Page 88 Robustel R3000 LG User Guide Click button to add an Event parameters. RT_UG_R3000 LG_v.1.0.4 19 Jul., 2018 88/133...
  • Page 89 Robustel R3000 LG User Guide General Settings @ Notification Item Description Default Index Indicate the ordinal of the list. Description Enter a description for this group. Null Sent SMS Click the toggle button to enable/disable this option. When enabled, the gateway will send notification to the specified phone numbers via SMS if event occurs.

  • Page 90: Services > Ntp

    Robustel R3000 LG User Guide Event Details Item Description Default Save Position Select the events’ save position from “RAM” or “NVM”.  RAM: Random-access memory  NVM: Non-Volatile Memory Filter Message Enter the filtering message based on the keywords set by users. Click the “Refresh”...

  • Page 91: Services > Sms

    Robustel R3000 LG User Guide This window allows you to view the current time of gateway and also synchronize the gateway time. Click button to synchronize the gateway time with the PC’s. 3.23 Services > SMS This section allows you to set SMS parameters. Gateway supports SMS management, and user can control and configure their gateways by sending SMS.

  • Page 92: Services > Email

    Robustel R3000 LG User Guide User can test the current SMS service whether it is available in this section. SMS Testing Item Description Default Phone Number Enter the specified phone number which can receive the SMS from gateway. Null Message Enter the message that gateway will send it to the specified phone number.

  • Page 93: Services > Ddns

    Robustel R3000 LG User Guide Email Settings Item Description Default Outgoing server Enter the SMTP server IP Address or domain name. Null Server port Enter the SMTP server port. Timeout Set the max time for sending email to SMTP server. When the server doesn’t receive the email over this time, it will try to resend.

  • Page 94: Services > Ssh

    Robustel R3000 LG User Guide Corresponding service provider. Hostname Enter the hostname provided by the DDNS server. Null Username Enter the username provided by the DDNS server. Null Password Enter the password provided by the DDNS server. Null Enter the URL customized by user.

  • Page 95: Services > Gps

    Robustel R3000 LG User Guide Import Authorized Keys Item Description Authorized Keys Click on “Choose File” to locate an authorized key from your computer, and then click “Import” to import this key into your gateway. Note: This option is valid when enabling the password logins option.
  • Page 96 Robustel R3000 LG User Guide The window is displayed as below when choosing “TCP Client” as the protocol. The window is displayed as below when choosing “TCP Server” as the protocol. The window is displayed as below when choosing “UDP” as the protocol.
  • Page 97 Robustel R3000 LG User Guide Server Settings Item Description Default Index Indicate the ordinal of the list. Enable Click the toggle button to enable/disable the GPS server settings. Protocol Select from “TCP Client”, “TCP Server” or “UDP”. TCP Client Server Address Set the address of the TCP Client.

  • Page 98: Services > Web Server

    Robustel R3000 LG User Guide GPS Status Item Description Speed Show the horizontal speed of gateway. Click “Map” column to view the current location of the gateway. 3.28 Services > Web Server This section allows you to modify the parameters of Web Server.

  • Page 99: Services > Advanced

    Robustel R3000 LG User Guide Web Server. HTTPS Port Enter the HTTPS port number you want to change in gateway’s Web Server. On a Web server, port 443 is the port that the server "listens to" or expects to receive from a Web client. If you configure the gateway with other HTTPS Port number except 443, only adding that port number then you can login gateway’s...
  • Page 100 Robustel R3000 LG User Guide System Settings Item Description Default Device Name Set the device name to distinguish different devices you have installed; valid gateway characters are a-z, A-Z, 0-9, @, ., -, #, $, and *. User LED Type Specify the display type of your USR LED.

  • Page 101: System > Debug

    Robustel R3000 LG User Guide 3.30 System > Debug This section allows you to check and download the syslog details. Syslog Item Description Default Syslog Details Log Level Select from “Debug”, “Info”, “Notice”, “Warn”, “Error” which from low to high.

  • Page 102: System > Update

    Robustel R3000 LG User Guide Click the button to refresh the syslog. Syslog Files Syslog Files List It can show at most 5 syslog files in the list, the files’ name range from message0 to message 4. And the newest syslog file will be placed on the top of the list.

  • Page 103: System > Tools

    Robustel R3000 LG User Guide App Center Item Description Default Note: File format should be xxx.rpk, e.g. R3000 LG-robustlink-1.0.0.rpk. Installed Apps Index Indicate the ordinal of the list. Name Show the name of the App. Null Version Show the version of the App.
  • Page 104 Robustel R3000 LG User Guide Traceroute Item Description Default Trace Address Enter the trace’s destination IP address or destination domain. Null Trace Hops Specify the max trace hops. Gateway will stop tracing if the trace hops has met max value no matter the destination has been reached or not.

  • Page 105: System > Profile

    Robustel R3000 LG User Guide Sniffer Item Description Default Interface Choose the interface according to your Ethernet configuration. Host Filter the packet that contain the specify IP address. Null Packets Request Set the packet number that the gateway can sniffer at a time.

  • Page 106: System > User Management

    Robustel R3000 LG User Guide XML Configuration File Click on to locate the XML configuration file from your computer, and then click to import this file into your gateway. Export Configuration File Ignore Disabled Features Click the toggle button as “OFF” to ignore the disabled features.
  • Page 107 Robustel R3000 LG User Guide Super User Settings Item Description Default New Username Enter a new username you want to create; valid characters are a-z, A-Z, 0-9, Null @, ., -, #, $, and *. Old Password Enter the old password of your gateway. The default is “admin”.

  • Page 108: Chapter 4 Configuration Examples

    Robustel R3000 LG User Guide Chapter 4 Configuration Examples 4.1 Interface 4.1.1 Console Port You can use the console port to manage the gateway via CLI commands, please refer to Chapter 5 Introductions for CLI. RT_UG_R3000 LG_v.1.0.4 19 Jul., 2018...

  • Page 109: Digital Input

    Robustel R3000 LG User Guide 4.1.2 Digital Input R3000 LG supports digital input with dry contact. Please check the connector interface of the gateway, you can easily find a mark “V-” at one pin of the power connector. Note: Do not connect In1/In2 directly and do not slide the switch to the port marked “GND”...

  • Page 110: Cellular

    Robustel R3000 LG User Guide 4.1.4 RS-485 R3000 LG supports one RS-485 for serial data communication. Please refer to the connection diagram at the right side. 4.2 Cellular 4.2.1 Cellular Dial-Up This section shows you how to configure the primary and backup SIM card for Cellular Dial-up. Connect the gateway correctly and insert two SIM, then open the configuration page.
  • Page 111 Robustel R3000 LG User Guide Click the edit button of WWAN1 to set its parameters according to the current ISP. When finished, click Submit > Save & Apply for the configuration to take effect. RT_UG_R3000 LG_v.1.0.4 19 Jul., 2018 111/133...

  • Page 112: Sms Remote Control

    Robustel R3000 LG User Guide The window is displayed below by clicking Interface > Cellular > Advanced Cellular Settings. Click the edit button of SIM1 to set its parameters according to your application request. When finished, click Submit > Save & Apply for the configuration to take effect.
  • Page 113 Robustel R3000 LG User Guide please refer to Chapter 5 Introductions for CLI. Note: Download the configure XML file from the configured web browser. The format of SMS control command can refer to the data of the XML file. to generate the XML file and click Go to System >...

  • Page 114: Network

    Robustel R3000 LG User Guide device_model = R3000 LG serial_number = 10201711101533 system_uptime = "0 days, 01:39:50" system_time = "Wed Oct 11 17:20:07 2017" admin:admin;reboot In this command, username is “admin”, password is “admin”, and the command is to reboot the Gateway.
  • Page 115 Robustel R3000 LG User Guide IPsec VPN_Server: Cisco 2811: RT_UG_R3000 LG_v.1.0.4 19 Jul., 2018 115/133...
  • Page 116 Robustel R3000 LG User Guide IPsec VPN_Client: The window is displayed as below by clicking VPN > IPsec > Tunnel. Click button and set the parameters of IPsec Client as below. RT_UG_R3000 LG_v.1.0.4 19 Jul., 2018 116/133...
  • Page 117 Robustel R3000 LG User Guide When finished, click Submit > Save & Apply for the configuration to take effect. The comparison between server and client is as below. RT_UG_R3000 LG_v.1.0.4 19 Jul., 2018 117/133...

  • Page 118: Openvpn

    Robustel R3000 LG User Guide 4.3.2 OpenVPN OpenVPN supports two modes, including Client and P2P. Here takes Client as an example. OpenVPN_Server: Generate relevant OpenVPN certificate on the server side firstly, and refer to the following commands to configuration the Server: local 202.96.1.100...
  • Page 119 Robustel R3000 LG User Guide OpenVPN_Client: Click VPN > OpenVPN > OpenVPN as below. Click to configure the Client01 as below. When finished, click Submit > Save & Apply for the configuration to take effect. RT_UG_R3000 LG_v.1.0.4 19 Jul., 2018...

  • Page 120: Gre Vpn

    Robustel R3000 LG User Guide 4.3.3 GRE VPN The configuration of two points is as follows. The window is displayed as below by clicking VPN > GRE > GRE. GRE-1 ： Click button and set the parameters of GRE-1 as below.
  • Page 121 Robustel R3000 LG User Guide GRE-2: Click button and set the parameters of GRE-2 as below. When finished, click Submit > Save & Apply for the configuration to take effect. The comparison between GRE-1 and GRE-2 is as below. RT_UG_R3000 LG_v.1.0.4 19 Jul., 2018...

  • Page 122: Chapter 5 Introductions For Cli

    Robustel R3000 LG User Guide Chapter 5 Introductions for CLI 5.1 What Is CLI Command-line interface (CLI) is a software interface providing another way to set the parameters of equipment from the SSH or through a telnet network connection. Route login:...

  • Page 123: How To Configure The Cli

    = "Wed Oct 11 17:20:07 2017" Example 2: Update firmware via tftp # tftpupdate (space+?) firmware New firmware # tftpupdate firmware (space+?) String Firmware name # tftpupdate firmware R3000 LG-firmware-sysupgrade-unknown.bin host 192.168.100.99 //enter a new firmware name Downloading RT_UG_R3000 LG_v.1.0.4 19 Jul., 2018 123/133...
  • Page 124 Robustel R3000 LG User Guide R3000 LG-firmware-s 100% |*******************************| 5018k 0:00:00 ETA Flashing Checking 100% Decrypting 100% Flashing 100% Verifying 100% Verfify Success upgrade success //update success # config save_and_apply // save and apply current configuration, make you configuration effect...
  • Page 125 Robustel R3000 LG User Guide # set link_manager primary_link wwan1 //select “wwan1” as primary_link //setting succeed # set link_manager link 1 type Type desc Description connection_type Connection Type wwan WWAN Settings static_addr Static Address Settings pppoe PPPoE Settings ping Ping Settings...
  • Page 126 Robustel R3000 LG User Guide dhcp { enable = true mode = server relay_server = "" pool_start = 192.168.0.2 pool_end = 192.168.0.100 netmask = 255.255.255.0 gateway = "" primary_dns = "" secondary_dns = "" wins_server = "" lease_time = 120 expert_options = ""...
  • Page 127 Robustel R3000 LG User Guide sim { id = 1 card = sim1 phone_number = "" extra_at_cmd = "" network_type = auto band_select_type = all band_gsm_850 = false band_gsm_900 = false band_gsm_1800 = false band_gsm_1900 = false band_wcdma_850 = false...
  • Page 128 Robustel R3000 LG User Guide band_lte_900 = false band_lte_1800 = false band_lte_1900 = false band_lte_2100 = false band_lte_2600 = false band_lte_1700 = false band_lte_700 = false band_tdd_lte_2600 = false band_tdd_lte_1900 = false band_tdd_lte_2300 = false band_tdd_lte_2500 = false # set(space+?)

  • Page 129: Commands Reference

    Robustel R3000 LG User Guide band_tdd_lte_2600 TDD LTE 2600 (band 38) band_tdd_lte_1900 TDD LTE 1900 (band 39) band_tdd_lte_2300 TDD LTE 2300 (band 40) band_tdd_lte_2500 TDD LTE 2500 (band 41) # set cellular sim 1 phone_number 18620435279 … # config save_and_apply // save and apply current configuration, make you configuration effect 5.3 Commands Reference...

  • Page 130: Glossary

    Robustel R3000 LG User Guide Glossary Abbr. Description Alternating Current Access Point Name ASCII American Standard Code for Information Interchange Conformité Européene (European Conformity) CHAP Challenge Handshake Authentication Protocol Command Line Interface for batch scripting Circuit Switched Data Clear to Send...
  • Page 131 Robustel R3000 LG User Guide Abbr. Description local area network Light Emitting Diode LoRa Long Range LoRaWAN LoRa Wide Area Network LPWAN Low Power Wide Area Network Machine to Machine Maximum Minimum Mobile Originated Mobile Station Mobile Terminated OpenVPN Open Virtual Private Network...
  • Page 132 Robustel R3000 LG User Guide Abbr. Description VLAN Virtual Local Area Network Virtual Private Network VSWR Voltage Stationary Wave Ratio Wide Area Network RT_UG_R3000 LG_v.1.0.4 19 Jul., 2018 132/133...
  • Page 133 Robustel R3000 LG User Guide Guangzhou Robustel LTD Add: 3rd Floor, Building F, Kehui Park, No.95 Daguan Road, Guangzhou, China 510660 Tel: 86-20-29019902 Email: info@robustel.com Web: www.robustel.com RT_UG_R3000 LG_v.1.0.4 19 Jul., 2018 133/133...

Table of Contents
