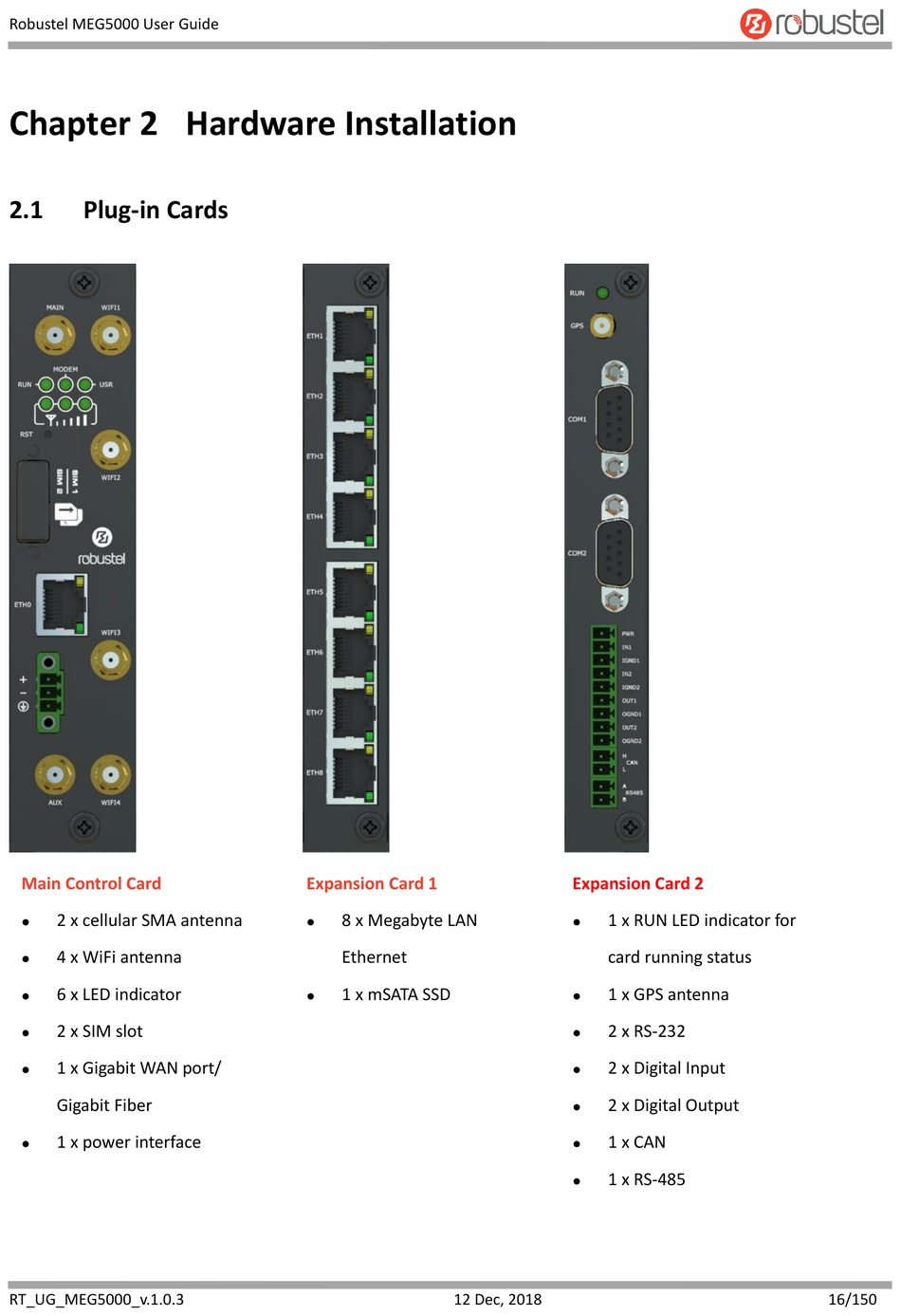

Chapter 2 Hardware Installation

2.1

Plug-in Cards

Main Control Card
2 x cellular SMA antenna
4 x WiFi antenna
6 x LED indicator
2 x SIM slot
1 x Gigabit WAN port/
Gigabit Fiber
1 x power interface
RT_UG_MEG5000_v.1.0.3
Expansion Card 1
8 x Megabyte LAN
Ethernet
1 x mSATA SSD
12 Dec, 2018
Expansion Card 2
1 x RUN LED indicator for
card running status
1 x GPS antenna
2 x RS-232
2 x Digital Input
2 x Digital Output
1 x CAN
1 x RS-485
