Robustel MEG5000 User Guide


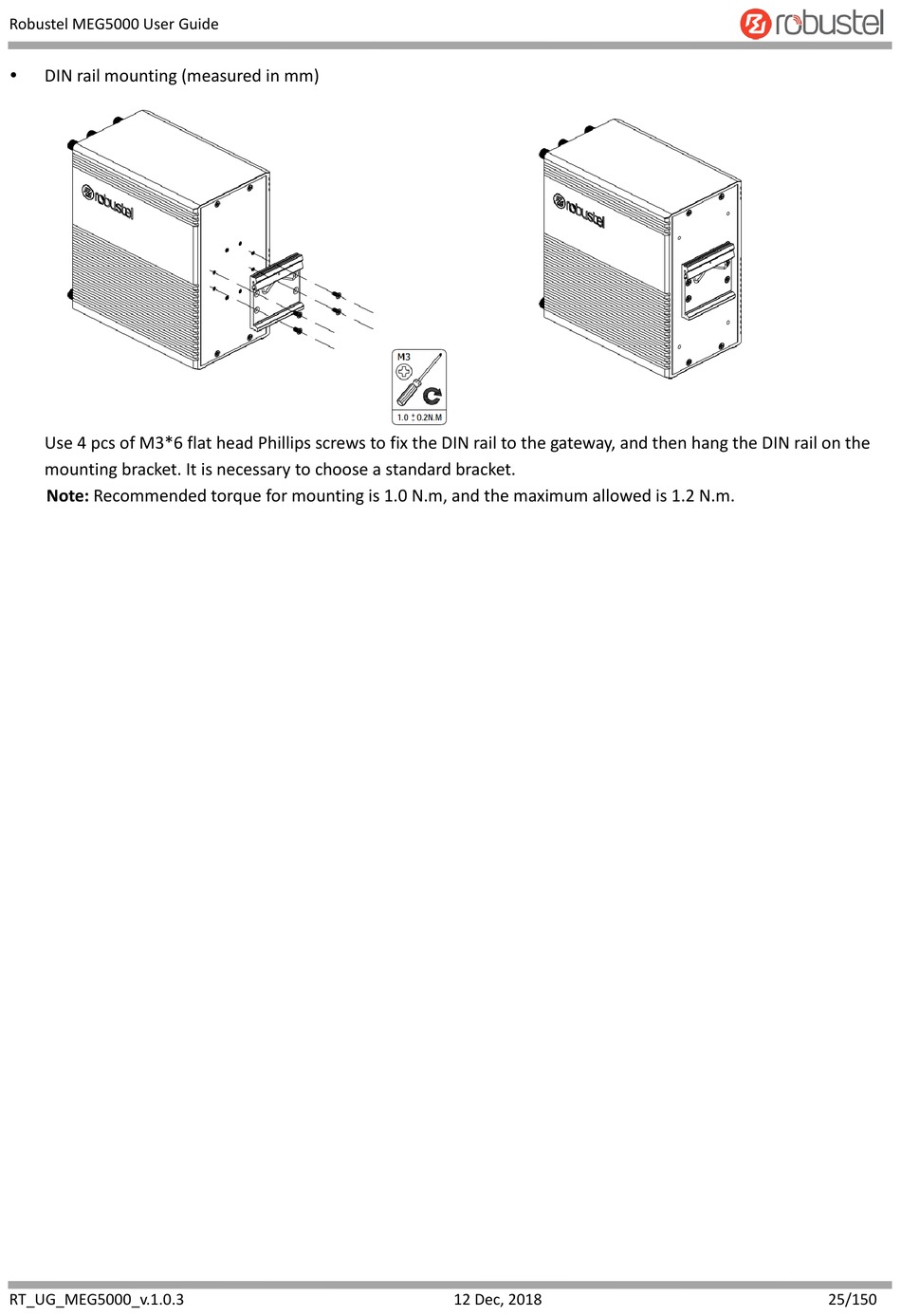

DIN rail mounting (measured in mm)
Use 4 pcs of M3*6 flat head Phillips screws to fix the DIN rail to the gateway, and then hang the DIN rail on the
mounting bracket. It is necessary to choose a standard bracket.
Note: Recommended torque for mounting is 1.0 N.m, and the maximum allowed is 1.2 N.m.
RT_UG_MEG5000_v.1.0.3 12 Dec, 2018 25/150
