- Page 1 Robustel R2010 Hardware Manual R2010 Hardware Manual Version: 1.0.1 Date: Nov. 22, 2022 RT069_HM_R2010 1/11...
- Page 2 Robustel R2010 Hardware Manual Regulatory and Type Approval Information Table 1: Toxic or Hazardous Substances or Elements with Defined Concentration Limits Name of Hazardous Substances the part (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) (DEHP) (BBP) (DBP) (DIBP) Metal parts Circuit...
- Page 3 Robustel R2010 Hardware Manual Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s) and Part 15 of the FCC Rules.
- Page 4 Simplified EU Declaration of Conformity We, Guangzhou Robustel Co., Ltd. are located at 501, Building #2, 63 Yongan Road, Huangpu District, Guangzhou, China, declare that this radio equipment complies with all applicable EU directives. The full text of the EU DoC is available at the following internet address: www.robustel.com/certifications/...
- Page 5 Robustel R2010 Hardware Manual Technical Support Tel: +86-20-82321505 Email: support@robustel.com Web: www.robustel.com Document History Updates between document versions are cumulative. Therefore, the latest document version contains all updates made to previous versions. Date Firmware Version Document Version Change Description July. 6, 2022 5.0.0...

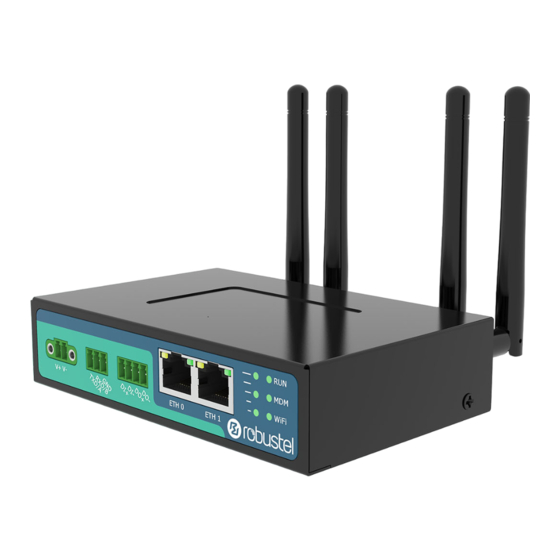

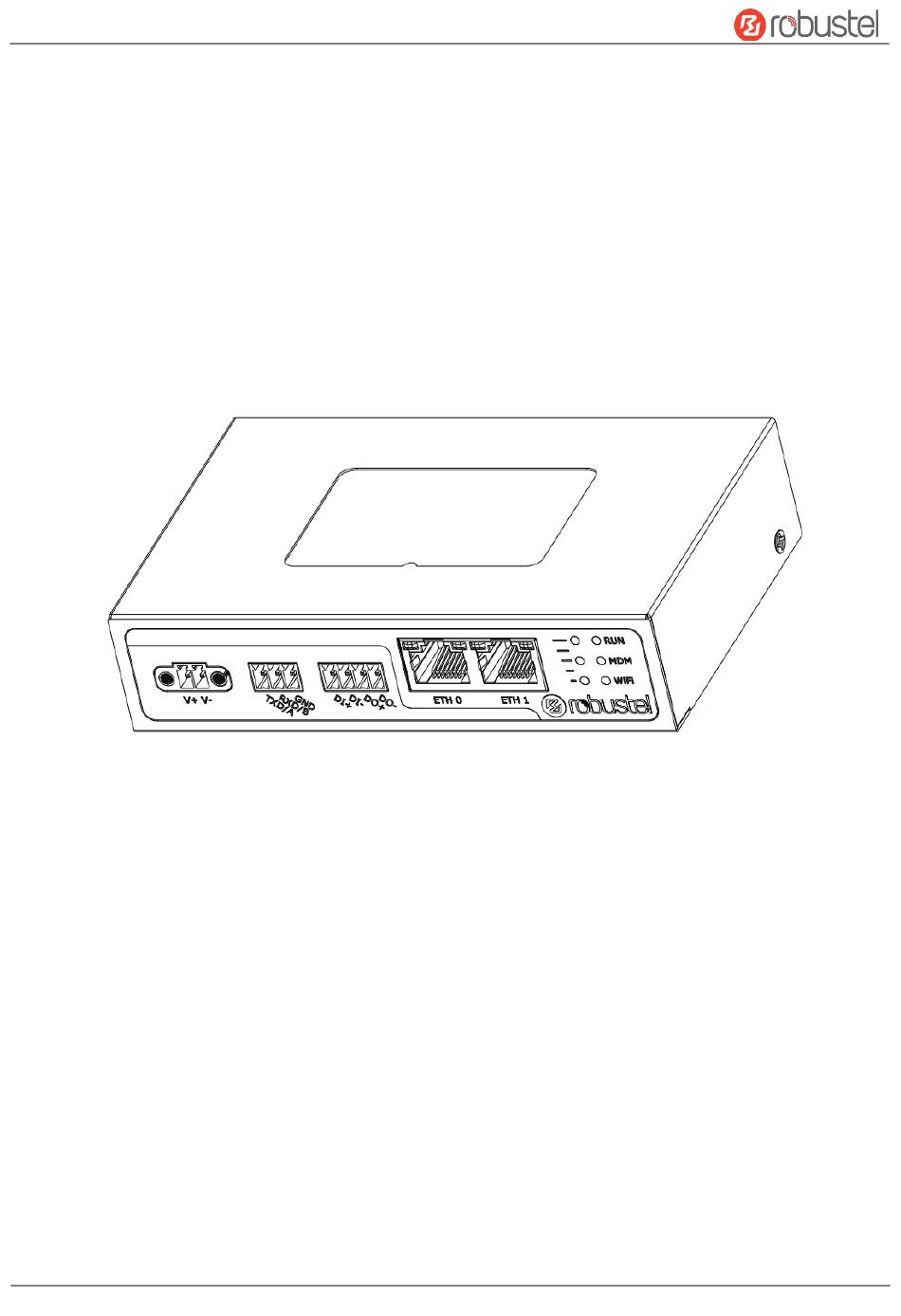

- Page 6 Robustel R2010 Hardware Manual Overview The Robustel R2010 Industrial Dual SIM Cellular Gateway is a rugged, versatile 4G gateway with dual Ethernet ports, dual SIM single standby capability and a range of advanced functions for mission critical IoT or M2M applications.
-
Page 7: Interface Descriptions
Robustel R2010 Hardware Manual Interface Descriptions Power Supply. 2PIN 3.5mm pitch terminal block. Description Note Power Supply Positive Power Supply Negative Note: The voltage input range is 9~36V. LED Indicator Name Color Status Description Green On, solid Gateway is powered on (System is initializing) -
Page 8: Reset Button
Note: The more details please refer to RT123_SM_RobustOS Software Manual, 2.3 Factory Reset. Ethernet Ports. There are two Ethernet ports on R2010 Gateway, including ETH0 (WAN/LAN) and ETH1. Each has two LED indicators. The green one is a link indicator but the yellow one with on mean. For details about status, see the table below. -
Page 9: Hardware Installation
Robustel R2010 Hardware Manual Hardware Installation SIM Card Installation. Remove the SIM card cover to insert the SIM cards into the device, then screw up the cover. Antenna Installation. Rotate the antenna into the antenna connector accordingly. SMA-K for cellular connection... - Page 10 Robustel R2010 Hardware Manual - DIN rail mounting Connect R2010 to a Computer Connect the gateway's Ethernet port (ETH0~ETH1) to a PC with a standard Ethernet cable. Grounding the Device. Grounding will help to prevent the noise effect due to electromagnetic interference (EMI).
- Page 11 Robustel R2010 Hardware Manual Login to the Device Connect the router’s Ethernet port to a PC with a After logging in, the home page of the web interface is displayed, then you can view system standard Ethernet cable. information and perform configuration on the Before logging in, manually configure the PC with device.
