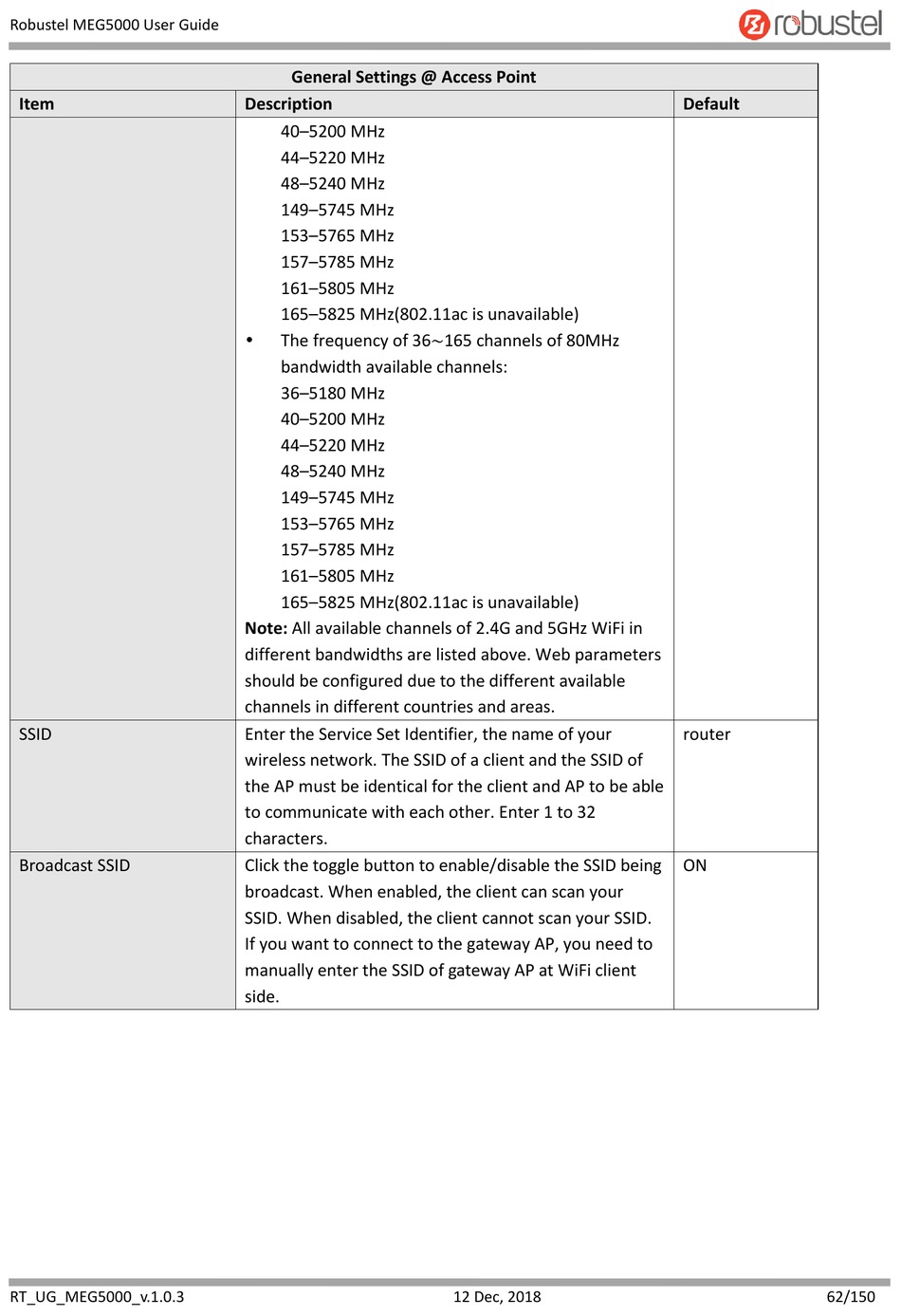

Robustel MEG5000 User Manual page 62

Robustel MEG5000 User Guide
Item
SSID
Broadcast SSID
RT_UG_MEG5000_v.1.0.3
General Settings @ Access Point
Description
40–5200 MHz
44–5220 MHz
48–5240 MHz
149–5745 MHz
153–5765 MHz
157–5785 MHz
161–5805 MHz
165–5825 MHz(802.11ac is unavailable)

The frequency of 36~165 channels of 80MHz
bandwidth available channels:
36–5180 MHz
40–5200 MHz
44–5220 MHz
48–5240 MHz
149–5745 MHz
153–5765 MHz
157–5785 MHz
161–5805 MHz
165–5825 MHz(802.11ac is unavailable)
Note: All available channels of 2.4G and 5GHz WiFi in
different bandwidths are listed above. Web parameters
should be configured due to the different available
channels in different countries and areas.
Enter the Service Set Identifier, the name of your
wireless network. The SSID of a client and the SSID of
the AP must be identical for the client and AP to be able
to communicate with each other. Enter 1 to 32
characters.
Click the toggle button to enable/disable the SSID being
broadcast. When enabled, the client can scan your
SSID. When disabled, the client cannot scan your SSID.
If you want to connect to the gateway AP, you need to
manually enter the SSID of gateway AP at WiFi client
side.
12 Dec, 2018
Default
router
ON
62/150
