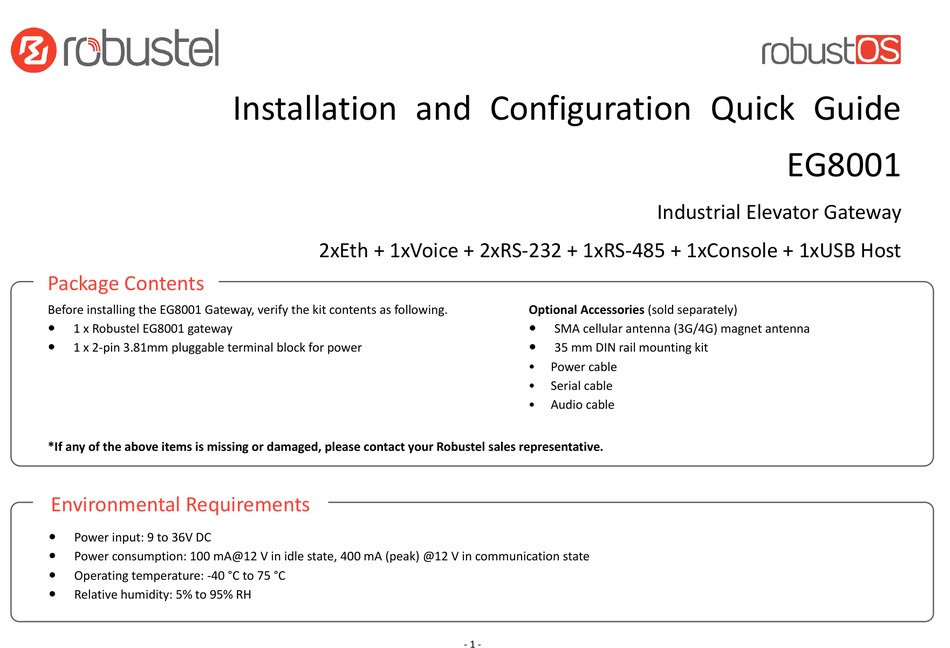

Package Contents
Before installing the EG8001 Gateway, verify the kit contents as following.
1 x Robustel EG8001 gateway
1 x 2-pin 3.81mm pluggable terminal block for power
*If any of the above items is missing or damaged, please contact your Robustel sales representative.
Environmental Requirements
Power input: 9 to 36V DC
Power consumption: 100 mA@12 V in idle state, 400 mA (peak) @12 V in communication state
Operating temperature: -40 °C to 75 °C
Relative humidity: 5% to 95% RH
Installation and Configuration Quick Guide
2xEth + 1xVoice + 2xRS-232 + 1xRS-485 + 1xConsole + 1xUSB Host
Optional Accessories (sold separately)
SMA cellular antenna (3G/4G) magnet antenna
35 mm DIN rail mounting kit
Power cable
Serial cable
Audio cable
- 1 -
EG8001
Industrial Elevator Gateway
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Robustel EG8001
Summary of Contents for Robustel EG8001
-
Page 1: Package Contents
Power cable Serial cable Audio cable *If any of the above items is missing or damaged, please contact your Robustel sales representative. Environmental Requirements Power input: 9 to 36V DC Power consumption: 100 mA@12 V in idle state, 400 mA (peak) @12 V in communication state ... -
Page 2: Hardware Introduction
Device EG9012 EG9012Device XIT (FXS) Function Direction RING Device EG9012 EG9012Device XPW (Power supply interface) Function Direction Adapter EG8001 EG8001Adapter 2. Dimensions XRS1/XRS2 (RS232 serial port) Function Direction Device EG8001 EG8001Device XRS3 (RS485 serial port) Function Direction - 2 -... -
Page 3: Led Indicators
You can insert a USB storage device into the router’s USB interface, such as a U disk or a hard disk. If there have a supported configuration file or a EG8001 firmware in this USB storage device, the EG8001 router will automatically update the configuration file or the firmware. -
Page 4: Hardware Installation
Hardware Installation 1. Insert or Remove SIM Card 2. Attach External Antenna (SMA Type) Attach an external SMA antenna to the gateway’s connector and twist tightly. Make sure the antenna is within the correct frequency range provided by the ISP and with 50 Ohm impedance. Note: Recommended torque for tightening is 0.35 N.m. -
Page 5: Mount The Gateway
Use 3 pcs of M3*6 flat head Phillips screws to fix the DIN rail to the Connect an Ethernet cable to ETH0 or ETH1 at the bottom of the EG8001, gateway, and then hang the DIN rail on the mounting bracket. It is and connect the other end of the cable to your computer. -
Page 6: Configure The Pc
Sharing Center, and then double-click Local (TCP/IPv4) and click Properties. (Configured a static IP address manually within the Area Connection. same subnet of EG8001 Gateway) Click Properties in the window of Local Area Two ways for configuring the IP Connection Status. -
Page 7: Configure The Gateway
Firefox etc. From your web browser, type the IP address of the Gateway into the address bar and press enter. The default IP address of EG8001 Gateway is 192.168.0.1, though the actual address may vary 2. Check the Cellular Connection Status Click Interface >... - Page 8 3. Configure the IP of the Gateway There are two Ethernet ports on EG8001 Gateway, including ETH0 and Configure lan1 ETH1. The ETH0 and ETH1 can freely choose from lan0~lan1, but at least Click Interface > Ethernet > Ports, click eth1’s edit button, choose one LAN port must be assigned as lan0.
- Page 9 IP to the LAN port. configuration to take effect. When finished, click Submit > Save & Apply for the configuration to take effect. Guangzhou Robustel Technologies Co., Ltd Address: 3rd Floor, Building F, Kehui Park, No.95 Daguan Road, Guangzhou, China 510660 Tel: 086-20-29019902 Email: info@robustel.com...
