Robustel MEG5000 User Guide

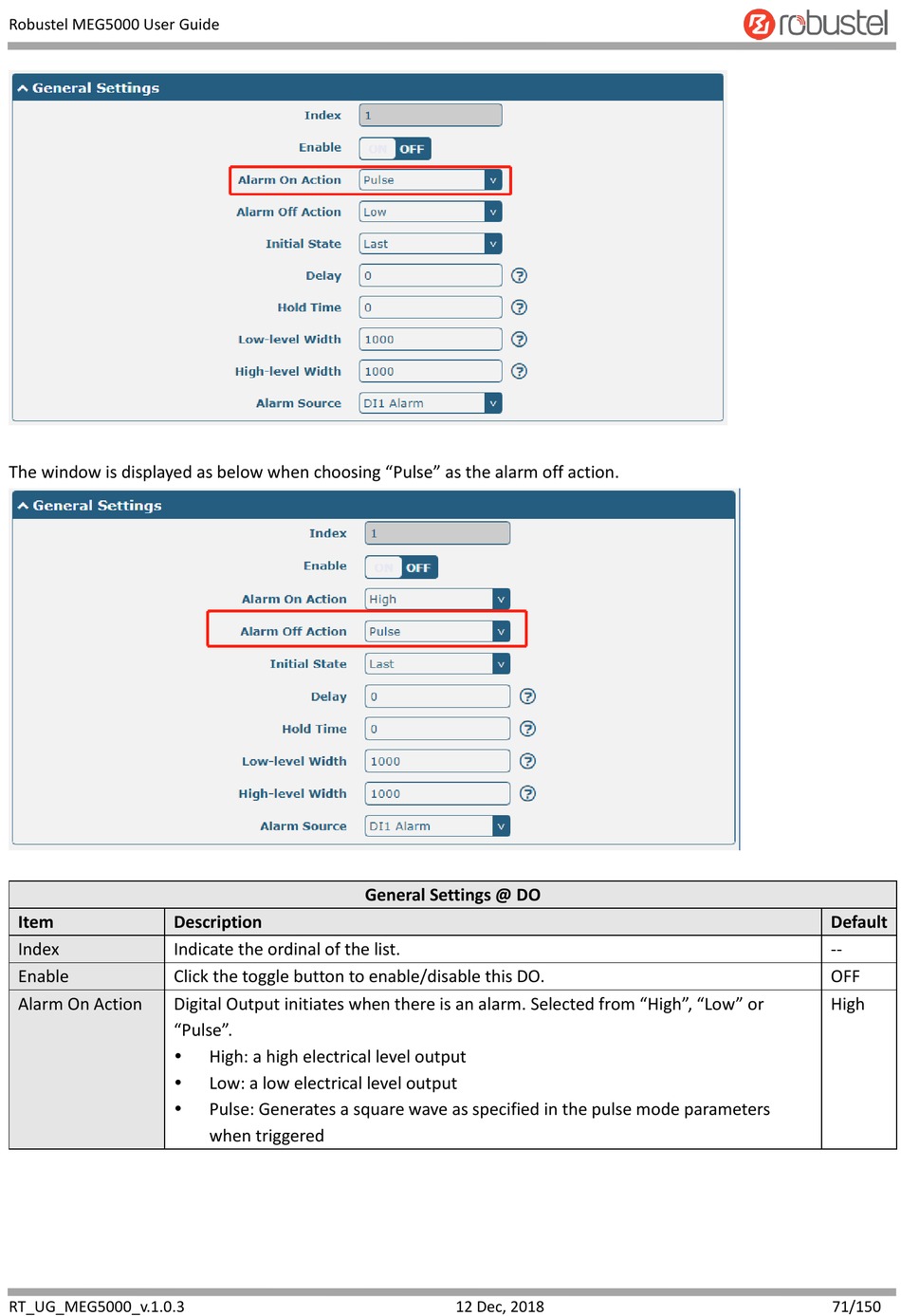

The window is displayed as below when choosing "Pulse" as the alarm off action.
Item Description
Index Indicate the ordinal of the list.
Enable Click the toggle button to enable/disable this DO.
Alarm On Action Digital Output initiates when there is an alarm. Selected from "High", "Low" or
"Pulse".



RT_UG_MEG5000_v.1.0.3
General Settings @ DO
High: a high electrical level output
Low: a low electrical level output
Pulse: Generates a square wave as specified in the pulse mode parameters
when triggered
12 Dec, 2018
Default
--
OFF
High
71/150
