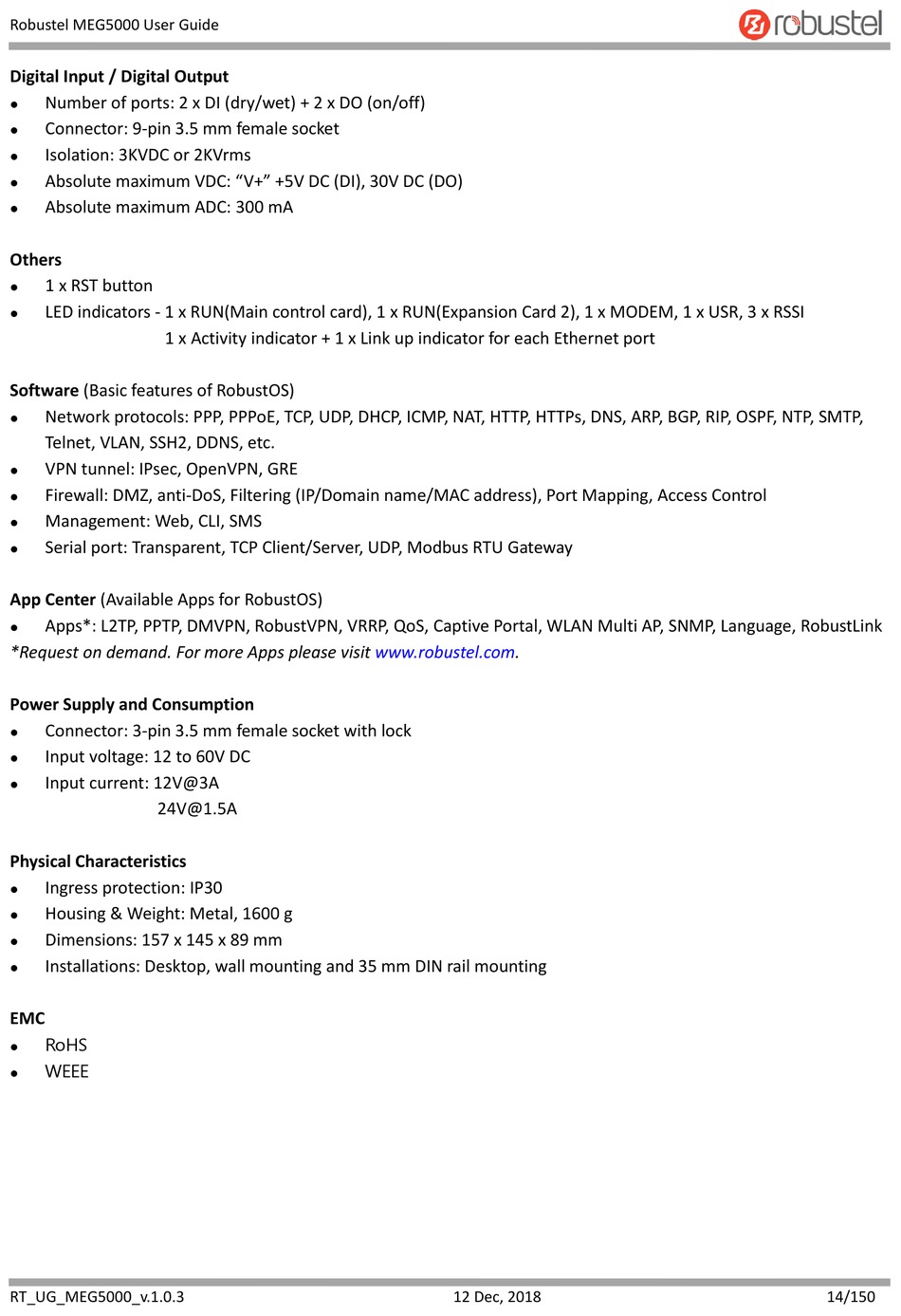

Robustel MEG5000 User Guide
Digital Input / Digital Output
Number of ports: 2 x DI (dry/wet) + 2 x DO (on/off)

Connector: 9-pin 3.5 mm female socket

Isolation: 3KVDC or 2KVrms

Absolute maximum VDC: "V+" +5V DC (DI), 30V DC (DO)

Absolute maximum ADC: 300 mA

Others
1 x RST button

LED indicators - 1 x RUN(Main control card), 1 x RUN(Expansion Card 2), 1 x MODEM, 1 x USR, 3 x RSSI

1 x Activity indicator + 1 x Link up indicator for each Ethernet port
Software (Basic features of RobustOS)
Network protocols: PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, BGP, RIP, OSPF, NTP, SMTP,

Telnet, VLAN, SSH2, DDNS, etc.
VPN tunnel: IPsec, OpenVPN, GRE

Firewall: DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control

Management: Web, CLI, SMS

Serial port: Transparent, TCP Client/Server, UDP, Modbus RTU Gateway

App Center (Available Apps for RobustOS)
Apps*: L2TP, PPTP, DMVPN, RobustVPN, VRRP, QoS, Captive Portal, WLAN Multi AP, SNMP, Language, RobustLink

*Request on demand. For more Apps please visit www.robustel.com.
Power Supply and Consumption
Connector: 3-pin 3.5 mm female socket with lock

Input voltage: 12 to 60V DC

Input current: 12V@3A

24V@1.5A
Physical Characteristics
Ingress protection: IP30

Housing & Weight: Metal, 1600 g

Dimensions: 157 x 145 x 89 mm

Installations: Desktop, wall mounting and 35 mm DIN rail mounting

EMC
RoHS

WEEE

