How to Install
NOTICE
When changing the function of S201, S202, or S801, do
not to use force during the switch over. Remove the LCP
fixture (cradle) when operating the switches. Do not
operate the switches when the frequency converter is
3 3
powered.

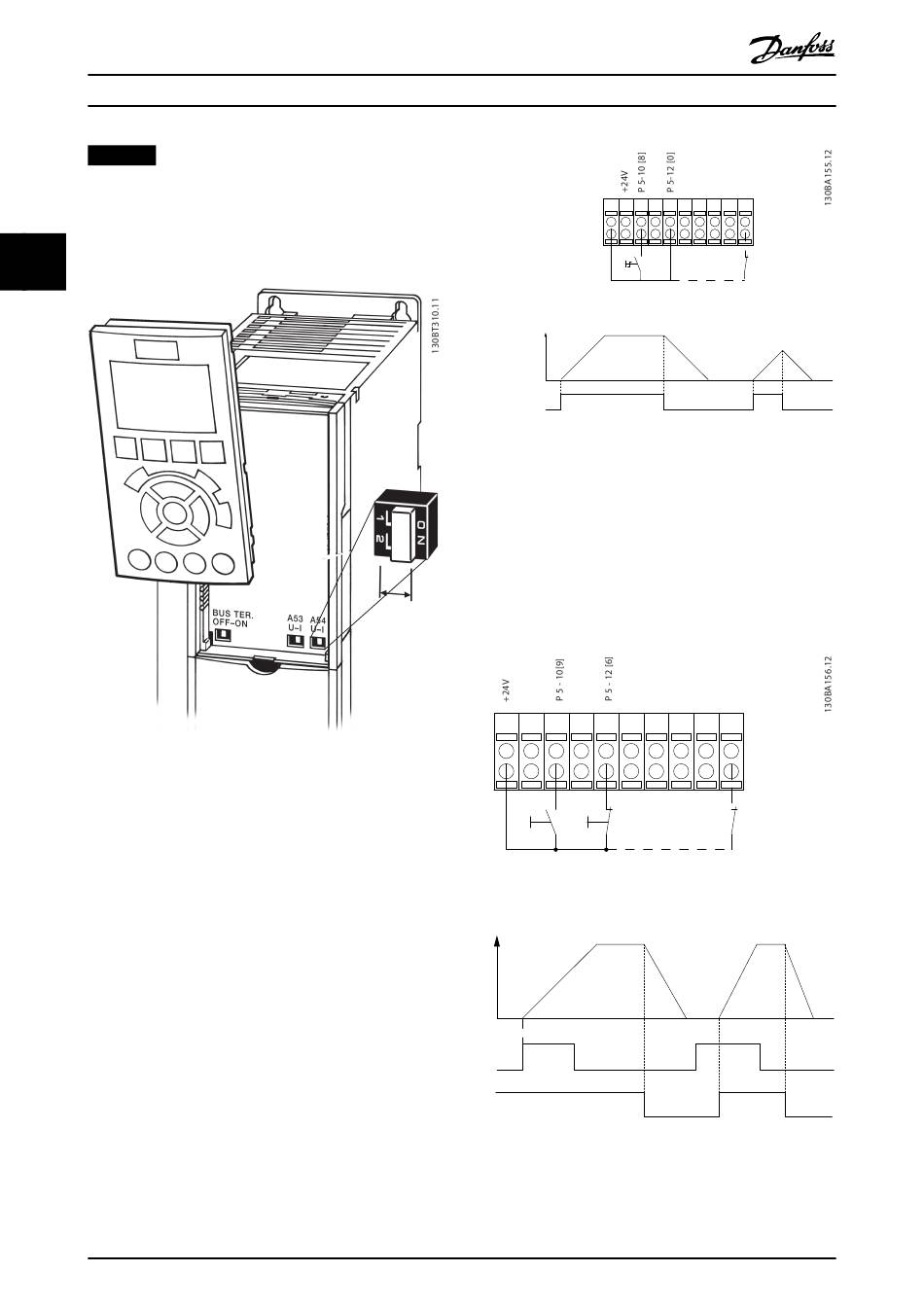

Illustration 3.55 Switch Location

3.5 Connection Examples

3.5.1 Start/Stop

Terminal 18 = Parameter 5-10 Terminal 18 Digital Input [8]
Start
Terminal 27 = Parameter 5-12 Terminal 27 Digital Input [0]
No operation (Default coast inverse)
Terminal 37 = STO
56
®
VLT AutomationDrive FC 302
Illustration 3.56 Wiring Start/Stop

3.5.2 Pulse Start/Stop

Terminal 18 = Parameter 5-10 Terminal 18 Digital Input [9]
Latched start
Terminal 27= Parameter 5-12 Terminal 27 Digital Input [6]
Stop inverse
Terminal 37 = STO
12
Speed
Start (18)
Start (27)
Illustration 3.57 Wiring Pulse Start/Stop
Danfoss A/S © 04/2016 All rights reserved.
12 13 18 19 27 29
Start/Stop
Speed
Start/Stop
[18]
13 18 19 27 29 32 33
Start Stop inverse
32 33 20 37
Safe Stop
20 37
Safe Stop
