3.2.4.4 Inverter, Enclosure Sizes F14 and F15
EARTH GROUND
3
3
BRAKE 308.3 [12.1]
253.1 [10.0]
EARTH GROUND 180.3 [7.1]
.0 [.0]
MOTOR
BRAKE

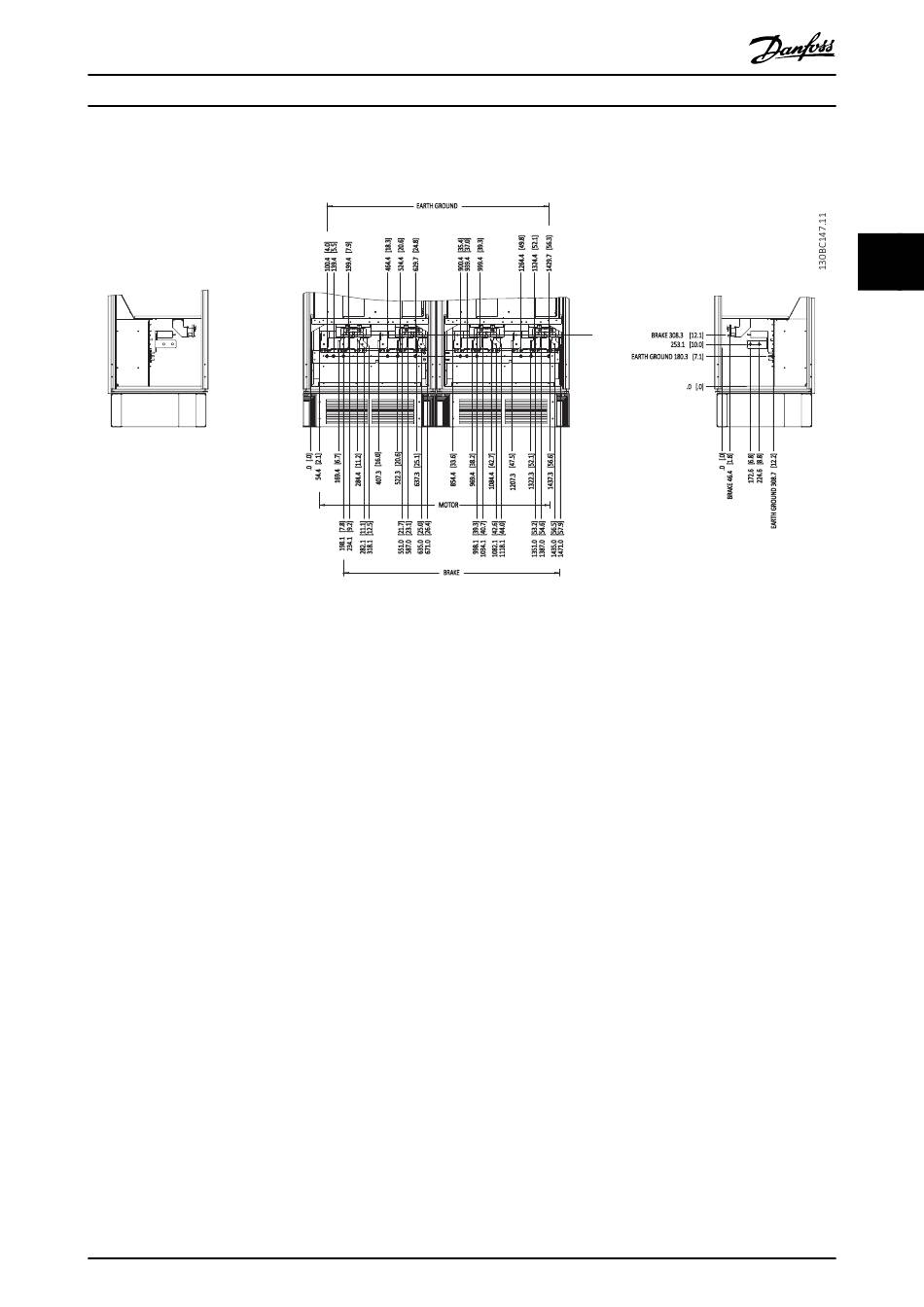

Illustration 3.16 Terminal Locations – Left, Front, and Right Views. The gland plate is 42 mm (1.65 in) below 0.0 level.
MG34Q402
Danfoss A/S © 04/2016 All rights reserved.
23
