How to Install
2
3 3
1
7, 8, 9
6
5
1 NAMUR fuse. See Table 3.25 for part numbers.
2 NAMUR terminals (optional)
3 External temperature monitoring
4 AUX relay (01, 02, 03, 04, 05, 06)
5 Motor connection, 1 per module T1 (U), T2 (V), T3
(W)
6 Brake 81 (-R), 82 (+R)
7 AUX fan (100, 101, 102, 103)
8 Fan fuses. See Table 3.22 for part numbers.
9 SMPS fuses. See Table 3.21 for part numbers.

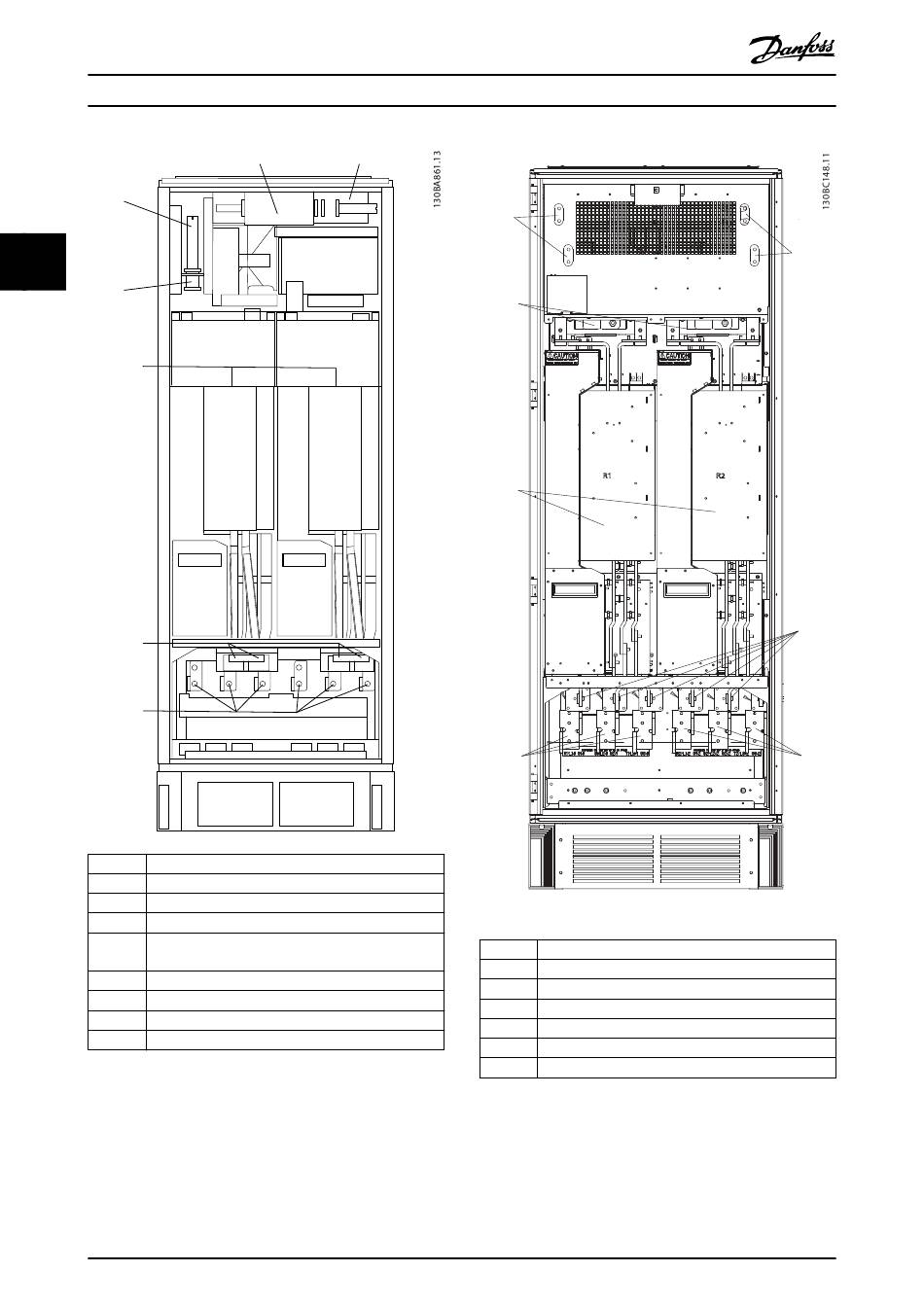

Illustration 3.37 Inverter Cabinet, Enclosure Sizes F10 and F11
40
®
VLT AutomationDrive FC 302
3 4
Danfoss A/S © 04/2016 All rights reserved.
1
7
R1
6
5
1 DC-busbar access
2 DC-busbar access
3 Mains fuses (6 pieces)
4 Mains L1-2 (R2), L2-2 (S2), L3-2 (T2)
5 Mains L1-1 (R1), L2-1 (S1), L3-1 (T1)
6 12-pulse rectifier modules
7 DC inductor
Illustration 3.38 Rectifier Cabinet, Enclosure Size F14 and F15
