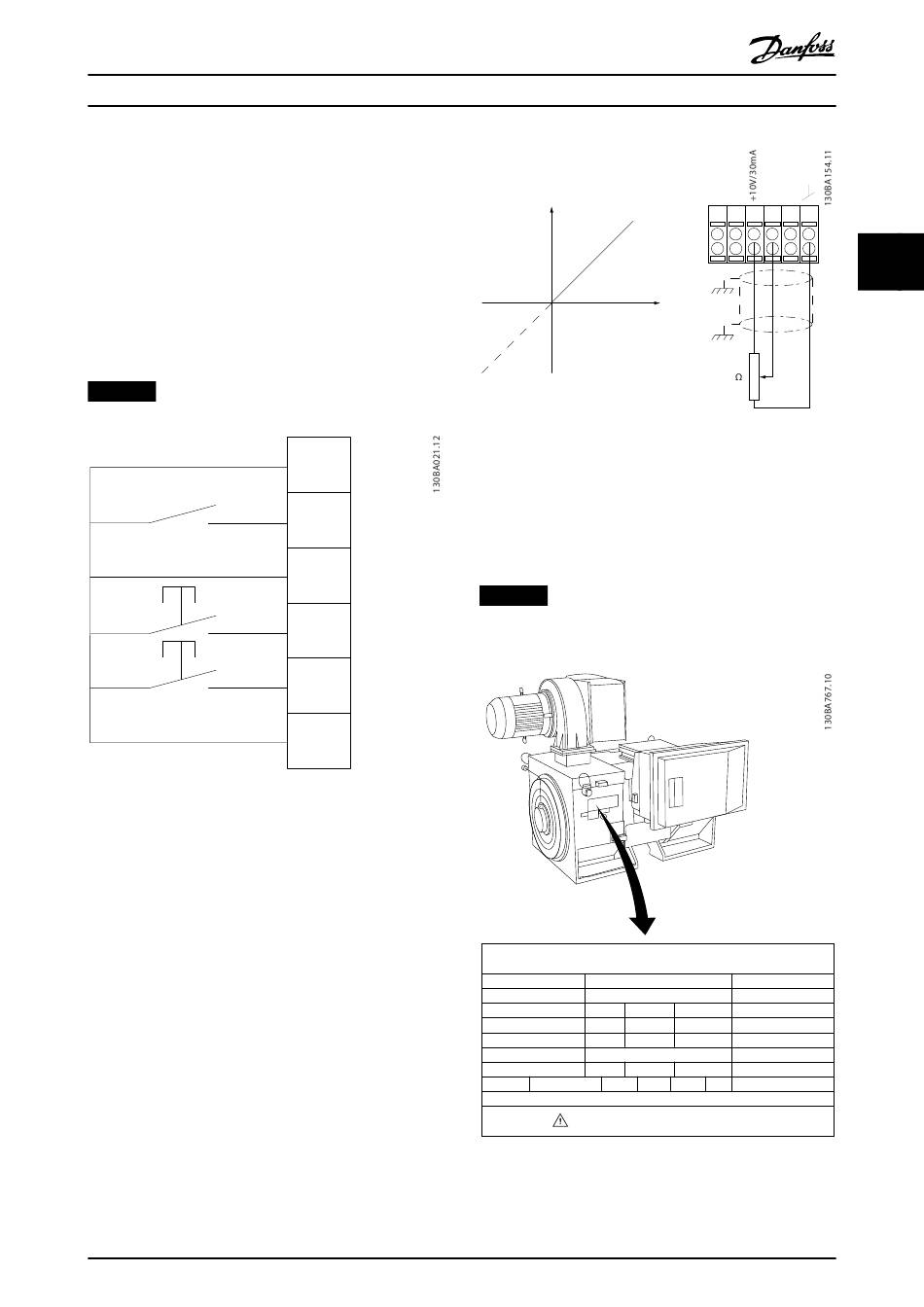

3.5.3 Speed up/Speed down
Terminals 29/32 = Speed up/Speed down
Terminal 18 = Parameter 5-10 Terminal 18 Digital
Input [9] Start (default).
Terminal 27 = Parameter 5-12 Terminal 27 Digital
Input [19] Freeze reference.
Terminal 29 = Parameter 5-13 Terminal 29 Digital
Input [21] Speed up.
Terminal 32 = Parameter 5-14 Terminal 32 Digital
Input [22] Speed down.
NOTICE
Terminal 29 only in FC x02 (x=series type).
Illustration 3.58 Speed up/Speed down
3.5.4 Potentiometer Reference
Voltage reference via a potentiometer
Reference source 1 = [1] Analog input 53 (default).
Terminal 53, low voltage = 0 V.
Terminal 53, high voltage = 10 V.
Terminal 53, low reference/feedback = 0 RPM.
Terminal 53, high reference/feedback = 1500 RPM.
Switch S201 = OFF (U)
MG34Q402
Operating Instructions
12 +24V

3.6 Final Set-up and Test

To test the set-up and to ensure that the frequency
18 Par. 5-10
converter is running, follow these steps.
27 Par. 5-12 Step 1. Locate the motor nameplate.
NOTICE
The motor is either star (Y) or delta connected (Δ). This
29 Par. 5-13
information is on the motor nameplate.
32 Par. 5-14
37
Danfoss A/S © 04/2016 All rights reserved.
Speed RPM
P 6-15
Ref. voltage
P 6-11 10V
Illustration 3.59 Potentiometer Reference
THREE PHASE INDUCTION MOTOR
MOD MCV 315E Nr. 135189 12 04
kW 400 PRIMARY
HP
536 V 690 A 410.6
mm 1481 V A
Hz 50 V A
DESIGN N
SECONDARY
DUTY S1 V A
INSUL I EFFICIENCY % 95.8% 100%
CAUTION
Illustration 3.60 Nameplate
39 42 50 53 54 55
1 k
IL/IN 6.5
SF 1.15
CONN Y COS f 0.85 40
CONN °C
AMB 40
ALT 1000 m
CONN
RISE °C
80
CONN ENCLOSURE IP23
95.8% 75% WEIGHT 1.83 ton
57
3 3
