How to Install

3.4.6 Torque

When tightening all connection of mains, it is important to
tighten with the correct torque. Too low or too high torque
results in a poor connection of mains. To ensure correct
3
3
torque, use a torque wrench.
Nm/in-lbs

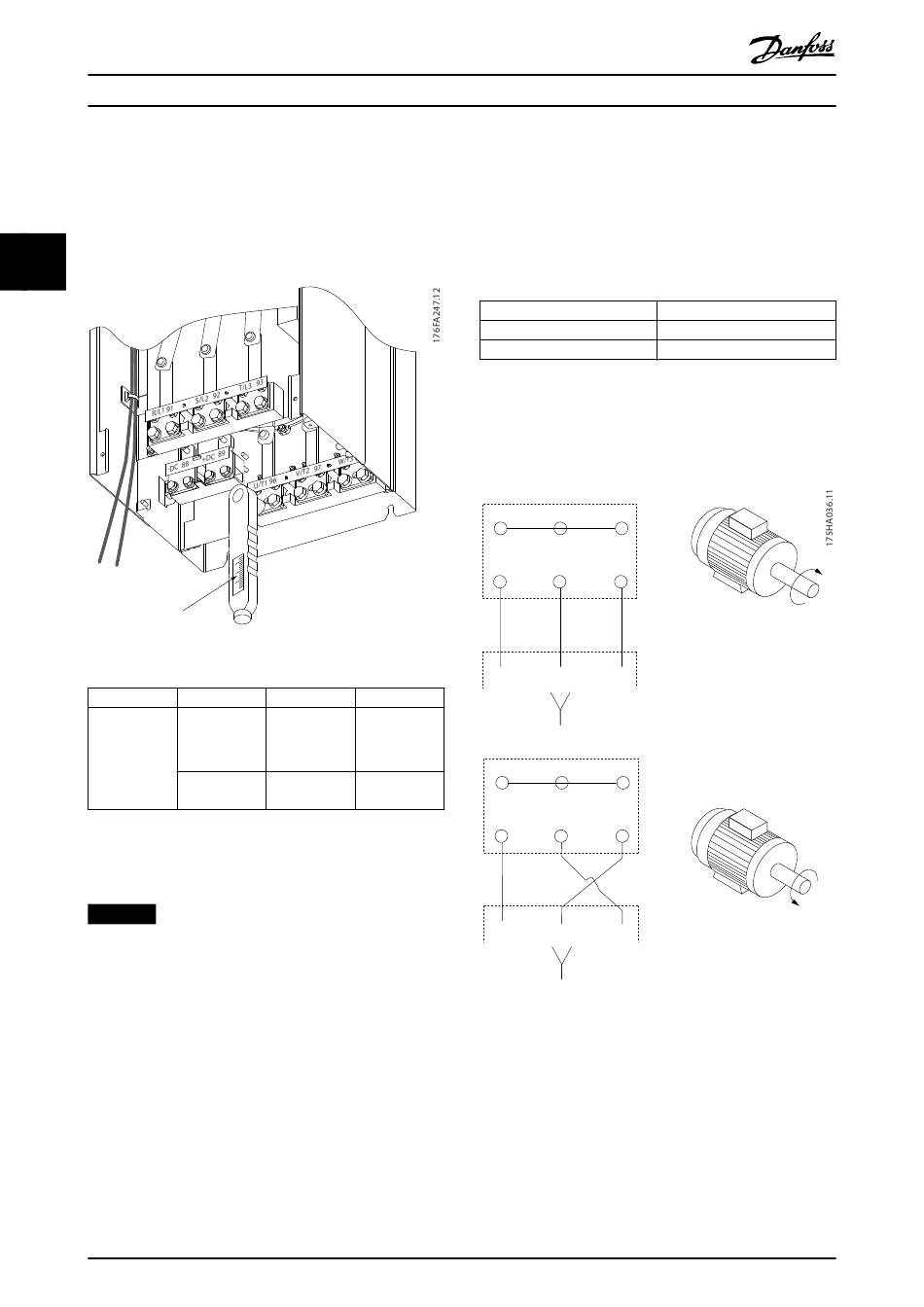

Illustration 3.44 Tightening Torques
Enclosure size Terminal
F8–F15
Table 3.11 Tightening Torques

3.4.7 Shielded Cables

NOTICE
Danfoss recommends using shielded cables between the
LCL filter and the frequency converter. Unshielded cables
can be used between the transformer and the LCL filter
input side.
Make sure to connect shielded and armored cables
properly to ensure high EMC immunity and low emissions.
The connection can be made using either cable glands or
clamps.
EMC cable glands: Available cable glands can be
used to ensure optimum EMC connection.
EMC cable clamp: Clamps allowing easy
connection are supplied with the frequency
converter.
46
VLT
Torque
Mains
19–40 Nm
Motor
(168–354 in-lb)
Brake
8.5–20.5 Nm
Regen
(75–181 in-lb)
Danfoss A/S © 04/2016 All rights reserved.
®
AutomationDrive FC 302

3.4.8 Motor Cable

Connect the motor to terminals U/T1/96, V/T2/97, W/T3/98.
Ground to terminal 99. All types of 3-phase asynchronous
standard motors can be used with a frequency converter.
The factory setting is for clockwise rotation with the
frequency converter output connected as follows:
Terminal number
96, 97, 98
99
Table 3.12 Motor Connection Terminals
Motor
U
2
U
1
FC
96
Bolt size
M10
Motor
U
2
M8
U
1
FC
96
Illustration 3.45 Wiring for Clockwise and Counterclockwise
Motor Rotation
The direction of rotation can be changed by switching 2
phases in the motor cable or by changing the setting of
parameter 4-10 Motor Speed Direction.
A motor rotation check can be performed using
parameter 1-28 Motor Rotation Check and following the
steps shown on the display.
Function
Mains U/T1, V/T2, W/T3
Ground
Terminal U/T1/96 connected to U-phase.
Terminal V/T2/97 connected to V-phase.
Terminal W/T3/98 connected to W-phase.
V
W
2
2
V
W
1
1
97
98
V
W
2
2
V
W
1
1
97
98
MG34Q402
