How to Install
3 3
1 Safety relay coil fuse with Pilz relay
See chapter 3.4.14 Fuse Tables for part numbers.
2 Pilz relay terminal
3 RCD or IRM terminal
4 Mains fuses (6 pieces)
See chapter 3.4.14 Fuse Tables for part numbers.
5 Mains L1-2 (R2), L2-2 (S2), L3-2 (T2)
6 Mains L1-1 (R1), L2-1 (S1), L3-1 (T1)
7 2x3-phase manual disconnect

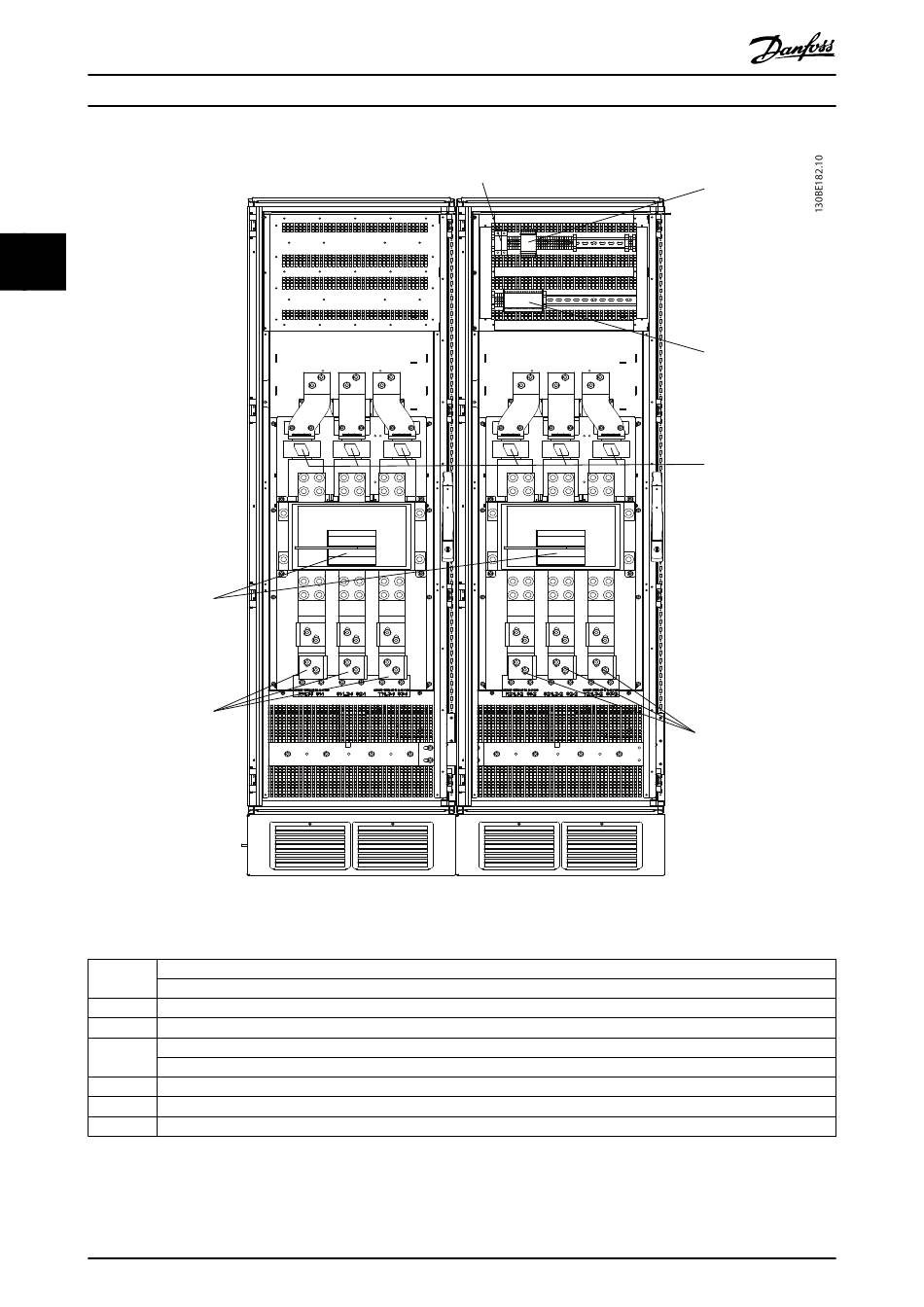

Illustration 3.43 Options Cabinet, Enclosure Size F15
