How to Install
3 3
1
2
3
4
5
6

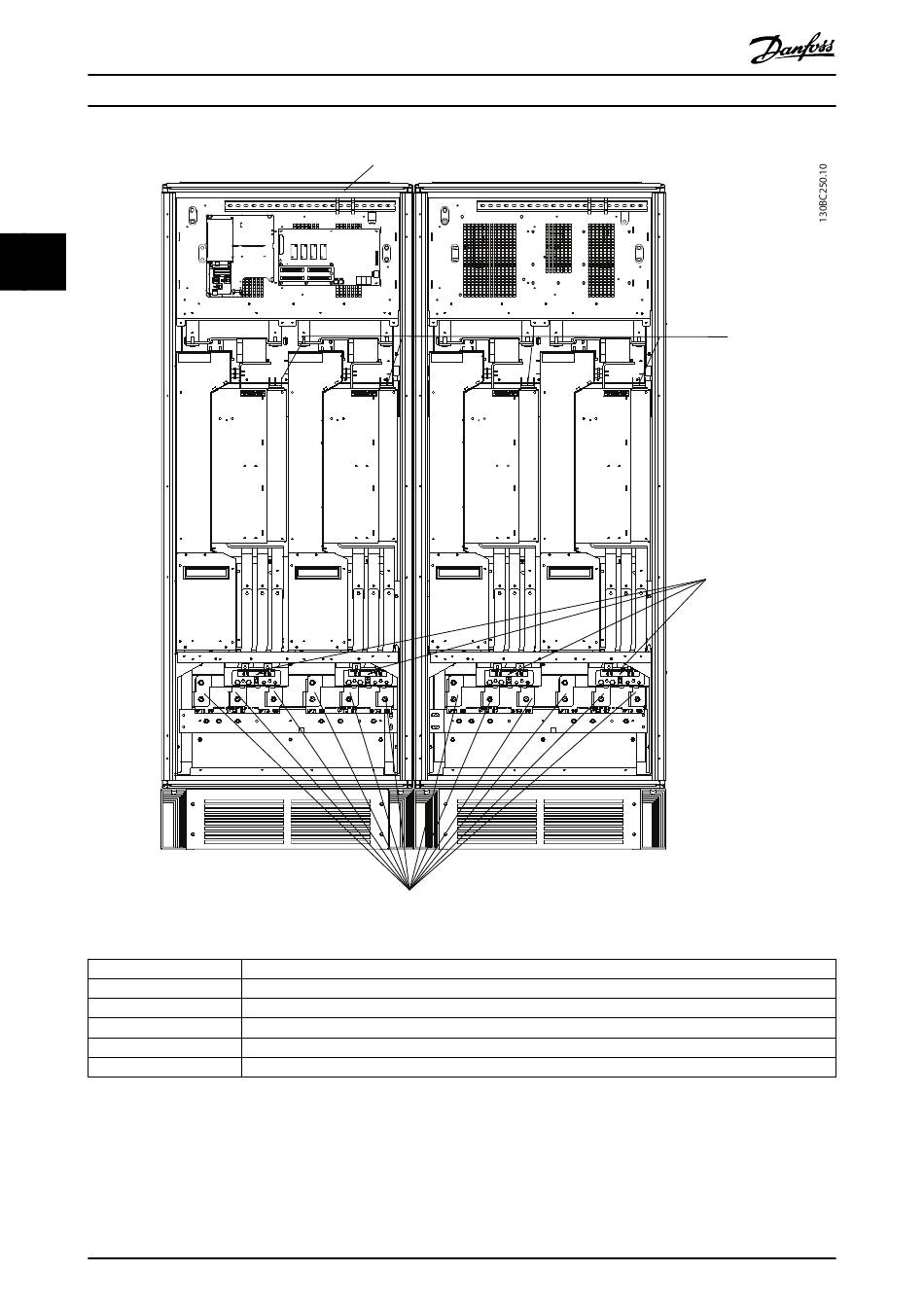

Illustration 3.40 Inverter Cabinet, Enclosure Size F14 and F15
42
®
VLT AutomationDrive FC 302
1
I1 I2
6
Auxiliary relay (01, 02, 03, 04, 05, 06)
AUX fan (100, 101, 102, 103)
Fan fuses. See Table 3.22 for part numbers.
SMPS fuses. See Table 3.21 for part numbers.
Brake 81 (-R), 82 (+R)
Motor connection, 1 per module T1 (U), T2 (V), T3 (W)
