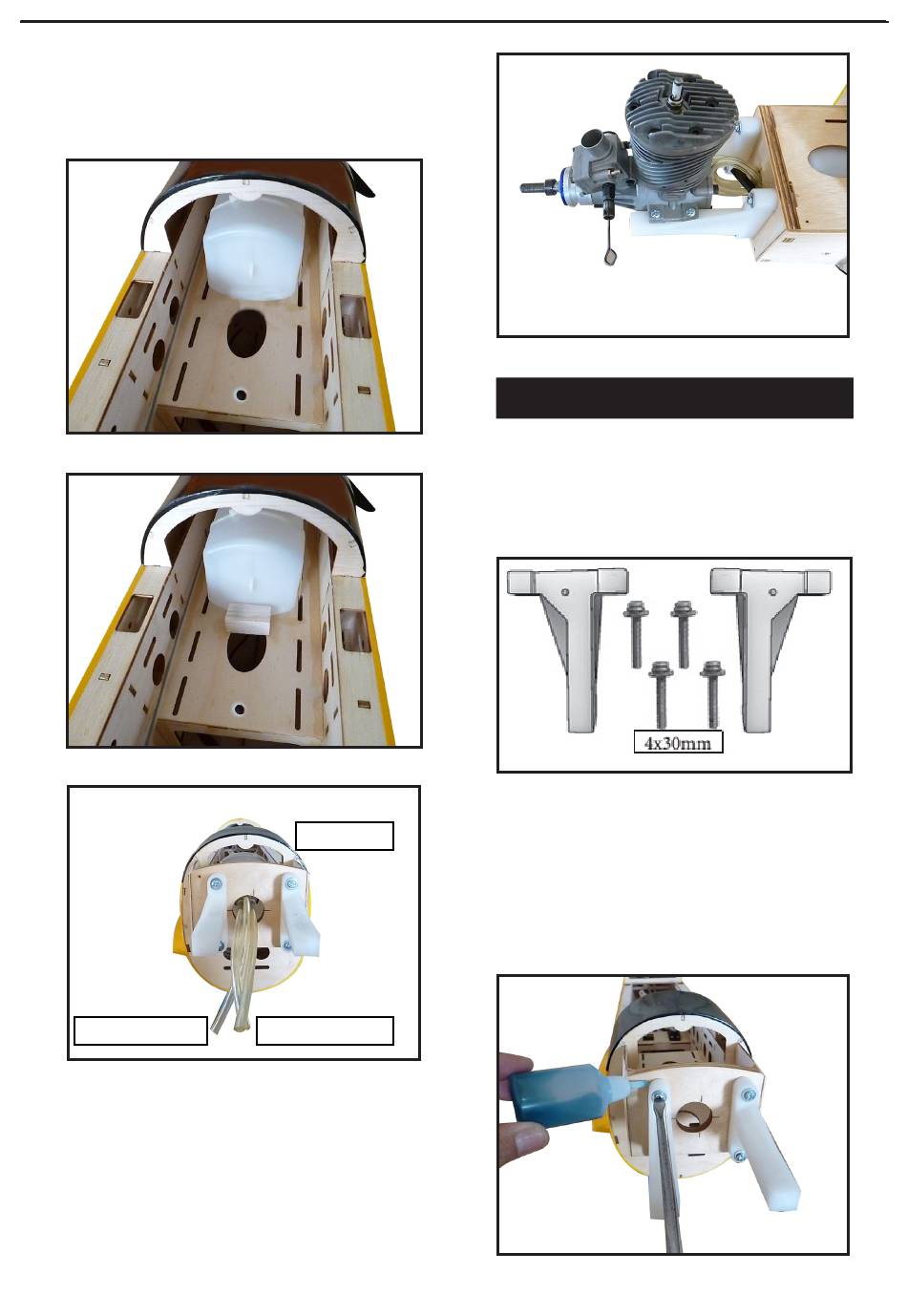

8) Use balsa block to hold in place the fuel
tank with C/A glue to secure the fuel tank
inside the fuselage
Fuel pick up tube.
9) Connect the lines from the tank to the
engine and muffl. Th vent line will con-
nectto the muffl and the line from the
clunk tothe carburetor.
Ven tube.
Fuel fill tube.

ENGINE MOUNT INSTALLATION.

1) Locate the items necessary to install
the engine mount included with your
model.
2) Use four 4x30mm head bolts and four
4mm washers to attach the engine mount
rails to the fiewall. Tighten the screws .
Make sure to use threadlock on the screws
to help prevent them from vibrating loose.
15
