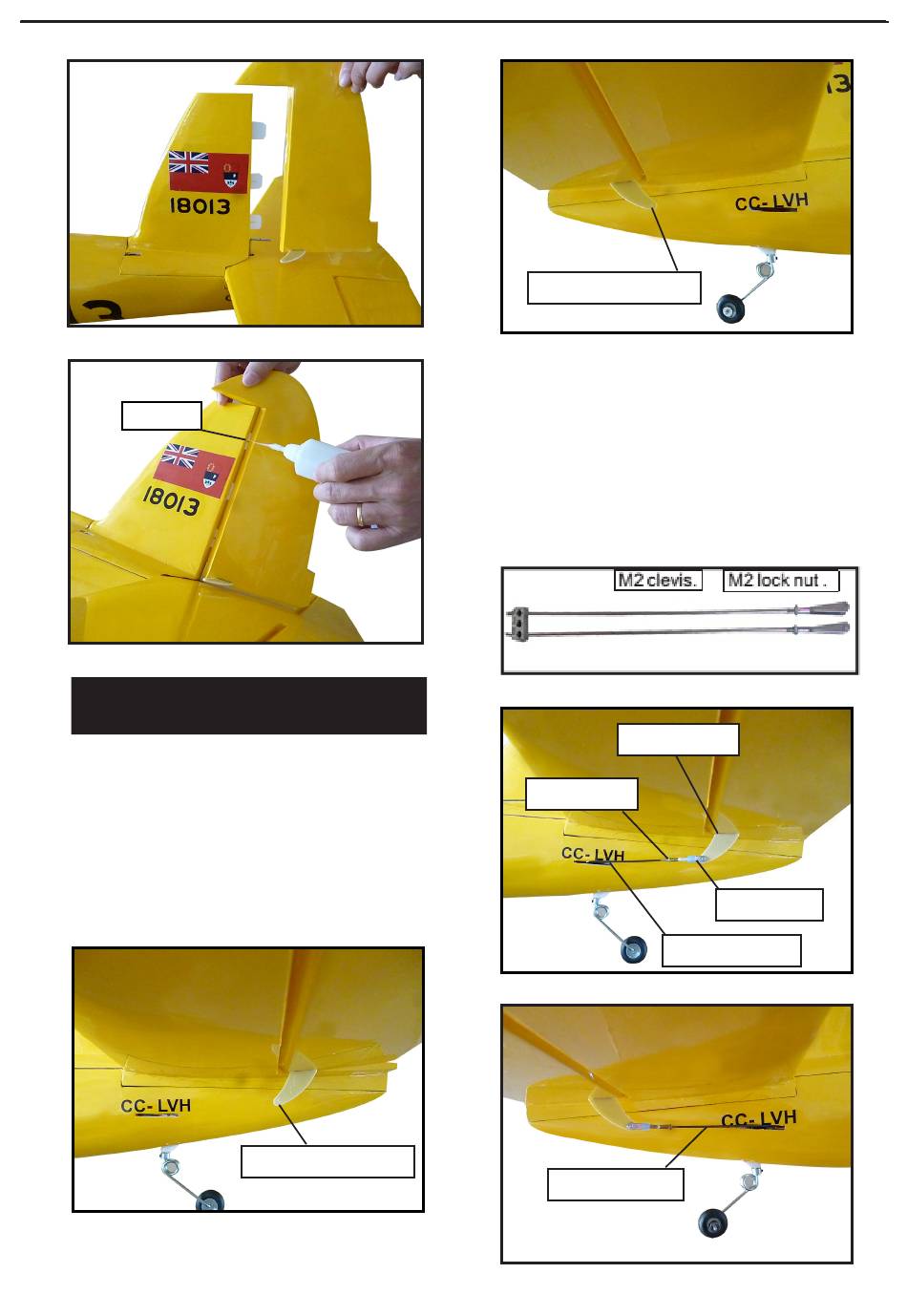

Seagull Models DHC-1 Chipmunk Assembly Manual page 27

Epoxy.
ELEVATOR PUSHROD HORN
INSTALLATION.
1) Install the elevator control horn using
the same method as with the aileron con-
trol horns.
2) Position the elevator control horn on
the both side of elevator.
Elevator control horn.
Elevator control horn.
3) Thread one clevis and M2 lock nut on
to each elevator control rod. Thread the
horns on until they are flush with the
ends of the control rods.
4) Elevator and rudder pushrods assem-
bly as pictures below.
Control horn.
Metal clevis.
Elevator pushrod.
Elevator pushrod.
M2 lock nut.
