DHC-1 CHIPMUNK

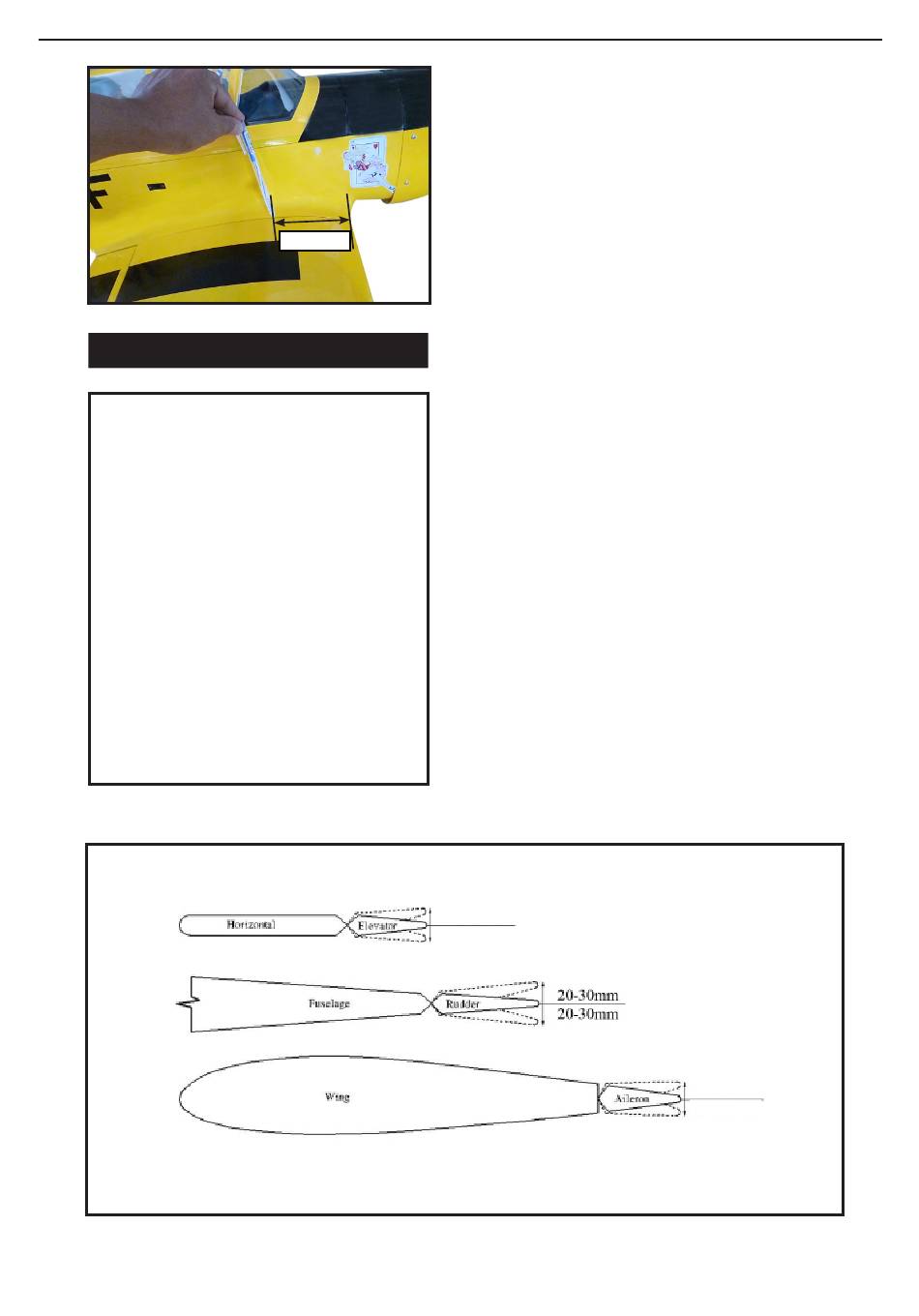

CONTROL THROWS.

Ailerons:
High Rate :
Up : 20 mm
Down : 20 mm
Low Rate :
Up : 15 mm
Down : 15 mm
Elevator:
High Rate :
Up : 15 mm
Down : 15 mm
Low Rate :
Up : 12 mm
Down : 12 mm
32
130mm
Rudder:
High Rate :
Right : 30 mm
Left : 30 mm
Low Rate :
Right : 20 mm
Left : 20 mm
Flap:
Mid : 35mm
Full : 25mm
Instruction Manual.
12-15mm
12-15mm
15-20mm
15-20mm
