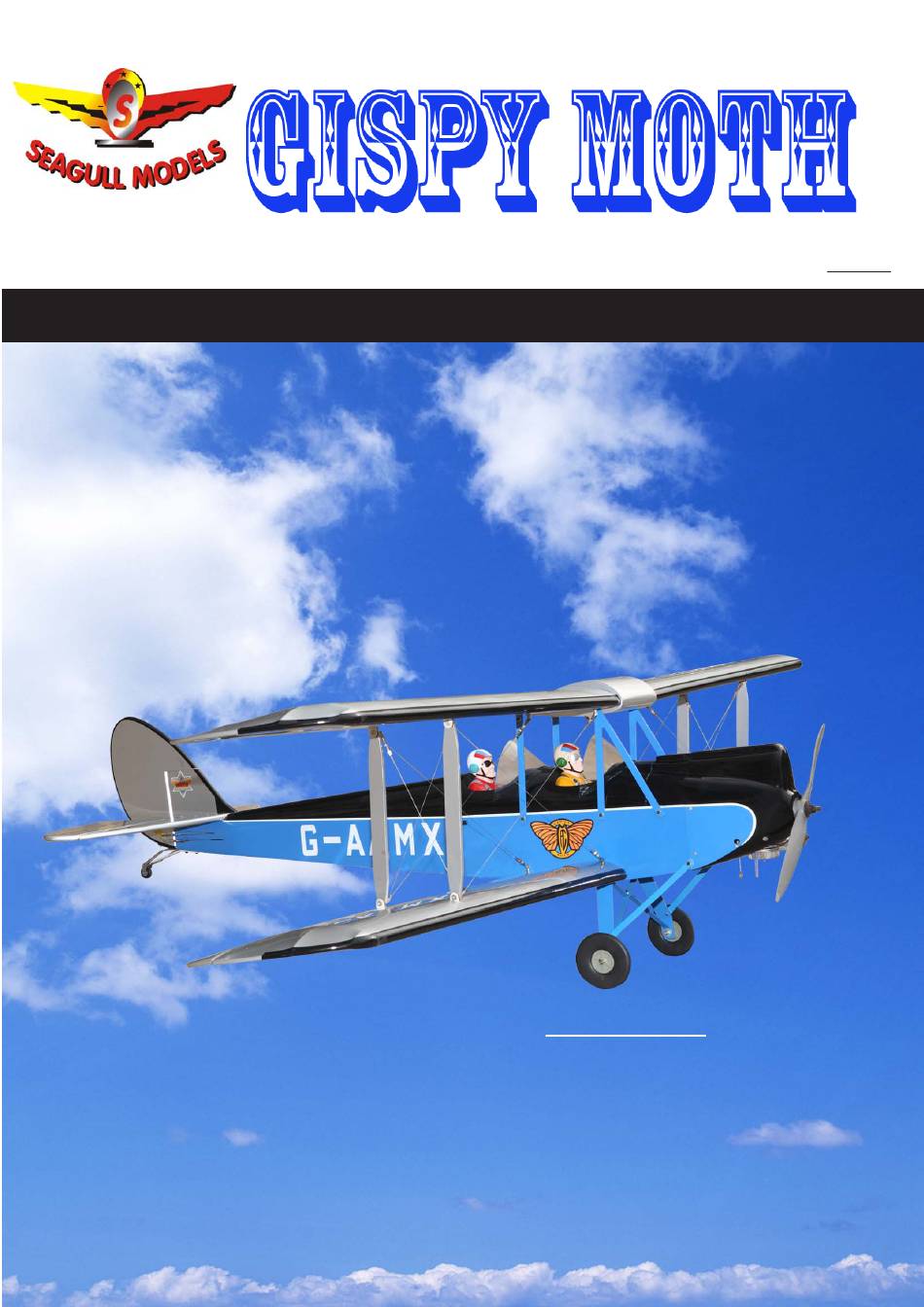

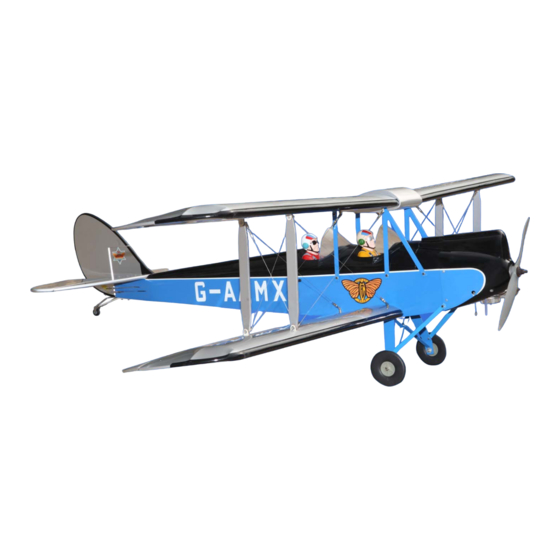

MS:169
ASSEMBLY MANUAL
"Graphics and specifications may change without notice".
Specifications:
Wing span ------------------------------66.9in (170cm).
Wing area -----------------764.2sq.in (49.3sq dm).
Weight ------------------------10.6lbs (4.8kg).
Length ------------------------------58.7in (149.0cm).
Engine ------------------ 0.75-0.91cu.in ----2-stroke.
Engine ------------------ 0.91-1.10cu.in ----4-stroke.
Radio -------------------4 channels with 6 servos.
Electric conversion: optional
Flying skill level Advanced/Intermediate.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Gipsy Moth DH-60M and is the answer not in the manual?

Questions and answers

Related Manuals for Seagull Models Gipsy Moth DH-60M

Summary of Contents for Seagull Models Gipsy Moth DH-60M

  • Page 1 MS:169 ASSEMBLY MANUAL “Graphics and specifications may change without notice”. Specifications: Wing span ------------------------------66.9in (170cm). Wing area -----------------764.2sq.in (49.3sq dm). Weight ------------------------10.6lbs (4.8kg). Length ------------------------------58.7in (149.0cm). Engine ------------------ 0.75-0.91cu.in ----2-stroke. Engine ------------------ 0.91-1.10cu.in ----4-stroke. Radio -------------------4 channels with 6 servos. Electric conversion: optional Flying skill level Advanced/Intermediate.

  • Page 2: Kit Contents

    Instruction Manual. GISPY MOTH. INTRODUCTION. Thank you for choosing the GISPY MOTH ARTF by SG MODELS. The GISPY MONTH was designed with the intermediate/advanced sport flyer in mind. It is a semi scale airplane which is easy to fly and quick to assemble. The airframe is conventionally built using balsa, plywood to make it stronger than the average ARTF , yet the design allows the aeroplane to be kept light.

  • Page 3: Hinging The Aileron

    HINGING THE AILERON . CONTENTS.TS Note: The control surfaces, including the Fuselage ailerons, elevators, and rudder, are Upper Wing Set Lower Wing Set prehinged with hinges installed, but Tail Set the hinges are not glued in place. It Cowling is imperative that you properly Main Landing Gear adhere the hinges in place per the Wing Tube...

  • Page 4: Hinging The Elevator

    Instruction Manual. GISPY MOTH. Hinge. 5) Turn the wing panel over and deflect the 4) Deflect the aileron and completely aileron in the opposite direction from the saturate each hinge with thin C/A glue. The opposite side. Apply thin C/A glue to each ailerons front surface should lightly contact the hinge, making sure that the C/A penetrates into wing during this procedure.

  • Page 5: Hinging The Rudder

    HINGING THE RUDDER. INSTALL ELEVATOR CONTROL HORN. Glue the rudder hinges in place using the Install the elevator control horn using the same techniques used to hinge the ailerons. same method as same as the aileron control horns. Hinge. Fiberglass control horn Position the Control horn on the Aileron and use 30-minute Epoxy INSTALL THE AILERONS CONTROL...

  • Page 6: Installing The Stopper Assembly

    Instruction Manual. GISPY MOTH. Epoxy. INSTALLING THE STOPPER ASSEMBLY. Rudder control horn. 1) Using a modeling knife, carefully cut off the rear portion of one of the 3 nylon tubes leaving 1/2” protruding from the rear of the stopper. This will be the fuel pick up tube. 2) Using a modeling knife, cut one length of silicon fuel line.

  • Page 7: Fuel Tank Installation

    7) Slide the fuel tank into the fuselage. Guide the lines from the tank through the hole in the firewall. Fuel tank. Vent tube. Fuel pick up tube. Fuel fill tube. M3x10mm. 8) Use plywood template to hold in place 3) Carefully bend the second nylon tube the fuel tank with C/A glue to secure the fuel up at a 45º...

  • Page 8: Installing The Fuselage Servos

    Instruction Manual. GISPY MOTH. 3/ 32” Hole. Blow through one of the lines to en- sure the fuel lines have not become kinked inside the fuel tank compartment. Air should flow through easily. INSTALLING THE FUSELAGE SERVOS. Because the size of servos differ, you may need to adjust the size of the precut open- ing in the mount.
  • Page 9 6) Connect the Z-bend in the 450mm throttle 4mm. pushrod to the outer hole of the carburetor arm. 7) Slide the throttle pushrod wire into the tube. Position the engine between the mounts. Use four M4x30mm machine screws to secure the engine to the mount as shown.
  • Page 10 Instruction Manual. GISPY MOTH. WHEEL AND WHEEL PANTS M4x20mm. INSTALLATION. 1) Locate the items neccessary to install the wheel and wheel pants to the landing gear as shown. M4x10mm. 2)Attach the Landing gear struts to the fuselage. M3x10mm. M4x20mm. M3x10mm. 3) Install the wheel.
  • Page 11 COWLING. 1)Slide the fiberglass cowl over the engine and line up the back edge of the cowl with the marks you made on the fuselage then trim and cut as shown. Trim and cut. Trim and cut. Trim and cut.
  • Page 12 Instruction Manual. GISPY MOTH. Because of the size of the cowl, it may be nec- essary to use a needle valve extension for the high speed needle valve. Make this out of suf- ficient length 1.5mm wire and install it into the end of the needle valve.
  • Page 13 4mm. Blind nut. M4x20mm. 3) Attach the motor to the front of the electric motor box using four 4mm blind nut, four M3x15mm hex head bolts to secure the motor. Please see picture shown. M3x15mm. Epoxy. 4mm. 140mm.

  • Page 14: Installing The Propeller

    Instruction Manual. GISPY MOTH. INSTALLING THE PROPELLER. Balsa stick. Epoxy. Electric motor. Battery. 5) Attach the speed control to the side of the INSTALLING THE AILERON - FLAP SERVOS. motor box using two-sided tape and tie wraps. Connect the appropriate leads from the speed control to the motor.
  • Page 15 5) Use dental floss to secure the connection Because the size of servos differ, you so they cannot become unplugged. may need to adjust the size of the precut open- ing in the mount. The notch in the sides of the mount allow the servo lead to pass through.

  • Page 16: Installing The Horizontal Stabilizer

    Instruction Manual. GISPY MOTH. AILERON PUSHROD HORN INSTALLATION 50mm. M3 clevis. M3 lock nut. 80mm. Wing. M3 lock nut. Aileron. 9) Set the aileron hatch in place and use a INSTALLING THE HORIZONTAL STABILIZER. Phillips screw driver to install it with four wood screws.
  • Page 17 Draw center line. Pen. 2) Using a modeling knife, carefully remove 5) Remove the stabilizer. Using the lines you just drew as a guide, carefully remove the the covering at mounting slot of horizontal sta- covering from between them using a model- bilizer ( both side of fuselage).
  • Page 18 Instruction Manual. GISPY MOTH. Fill epoxy. Fill epoxy. 3) Slide the vertical stabilizer back in INSTALLING VERITICAL FIN. place. Using a triangle, check to ensure that the vertical stabilizer is aligned 90º to the hori- zontal stabilizer. Vertical Stabilizer. Horizontal 90º...

  • Page 19: Installation

    4) When you are sure that everything is 3) Thread one clevis and M3 lock nut on aligned correctly, mix up a generous amount of to each elevator control rod. Thread the horns Flash 30 Minute Epoxy. Apply a thin layer to the on until they are flush with the ends of the con- mounting slot and to bottom of the vertical sta- trol rods.
  • Page 20 Instruction Manual. GISPY MOTH. MOUNTING THE TALI WHEEL. 1) Locate the items for this section of the manual. INSTALLATION PILOT AND CANOPY. 1) Locate items necessary to install pilot, cockpit panel, and canopy. 3x15mm. Aluminum tail landing gear. 2) A scale pilot is included with this ARF. The Pilot included fitting well to the cockpit.

  • Page 21: Cabane Strut Installation

    2) Wrap the receiver and battery pack in the protective foam rubber to protect them from vibration. 3) Route the antenna in the antenna tube inside the fuselage and secure it to the bot- tom of fuselage using a plastic tape. Receiver.
  • Page 22 Instruction Manual. GISPY MOTH. Wing tube. M3x10mm. Insert two lower wing panels as pictures below. M3x10mm. 3) Install the dummy fuel tank. Wing bolt. Insert two upper wing panels as pictures below. M3x10mm. ATTACHMENT WING-FUSELAGE. Attach the aluminium tube into fuselage.
  • Page 23 Wing bolt. M3x20mm. INSTALLATION WING STRUTS. 3)Repeat steps to prepare the remaining wing panel for installation and use pliers to bend four of the brass tabs at a slight 1)Locate the items for this section of the angle.Make the bend slightly biased toward the manual.

  • Page 24: Installation Cable

    Instruction Manual. GISPY MOTH. M3x20mm. INSTALLATION CABLE. 1)Prepare one end of the cable by attaching a cable end using a copper crimp. Thread a nut, then a clevis, on the cable end as shown. Prepare only one end of each cable at this time.
  • Page 25 Accurately mark the balance point on the top 4)Use the transport frames to transport the of the wing on both sides of the fuselage. The wing panels once they are removed from balance point is located 100 mm back from the leading edge of the wing at the wing root.

  • Page 26: Control Throws

    Instruction Manual. GISPY MOTH. CONTROL THROWS. Ailerons: Rudder: High Rate : High Rate : Up : 25 mm Right : 40 mm Down : 25 mm Left : 40 mm Low Rate : Low Rate : Up : 15 mm Right : 30 mm Down : 15 mm Left : 30 mm...

  • Page 27: Flight Preparation

    PREFLIGHT CHECK. FLIGHT PREPARATION. 1) Completely charge your transmitter Check the operation and direction of the and receiver batteries before your first day of elevator, rudder, ailerons and throttle. flying. 2) Check every bolt and every glue joint A) Plug in your radio system per the in the GÍSPY MOTH to ensure that every- manufacturer's instructions and turn every- thing is tight and well bonded.
