DHC-1 CHIPMUNK

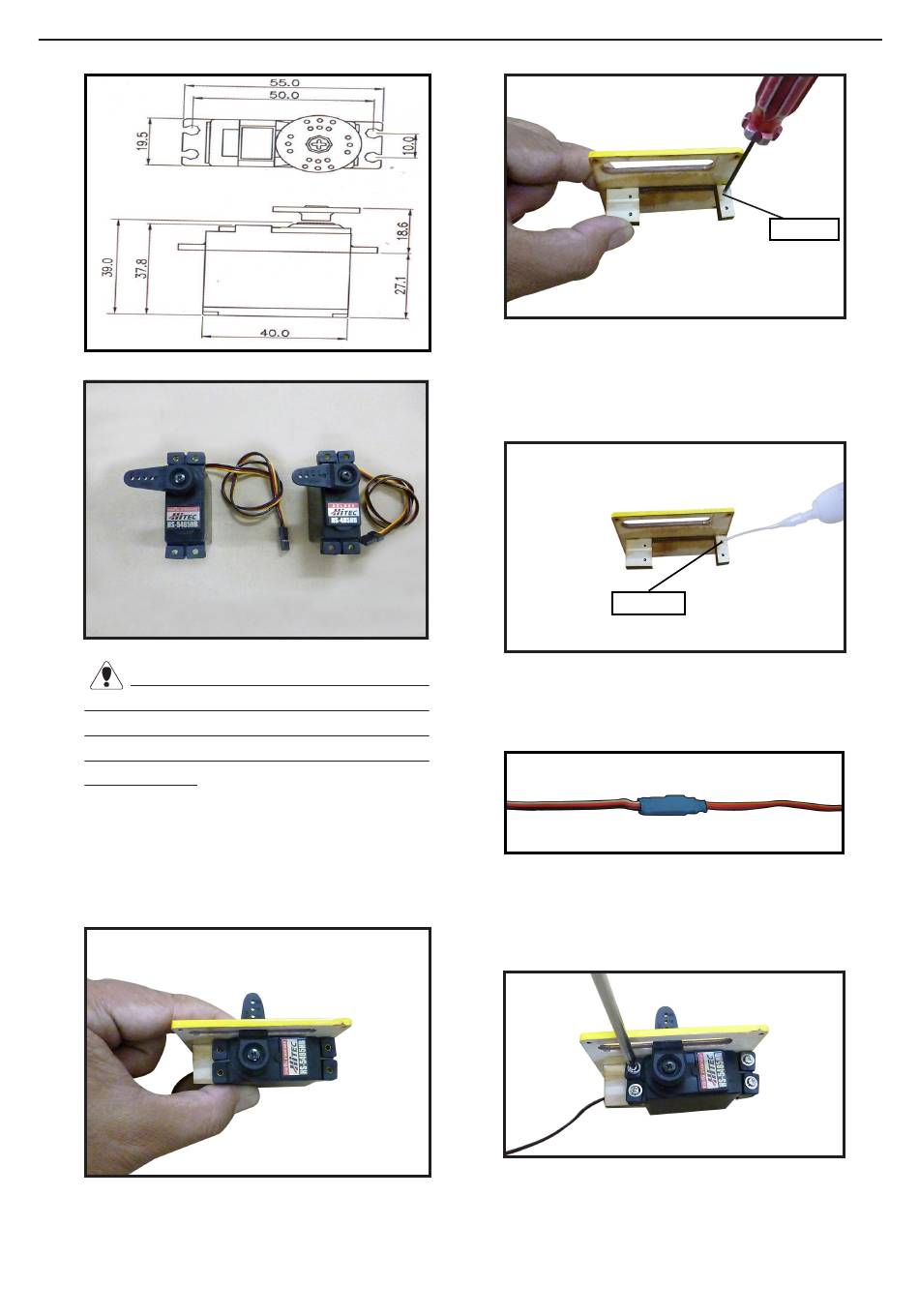

Because the size of servos differ, you
may need to adjust the size of the precut
opening in the mount. The notch in the
sides of the mount allow the servo lead to
pass through.
1) Place the servo between the mounting
blocks and space it from the hatch. Use a
pencil to mark the mounting hole loca-
tions on the blocks.
2) Use drill bit in a pin vise to drill the
mouting holes in the blocks.
6
Instruction Manual.
3) Apply 2-3 drops of thin C/A to each
of the mounting holes. Allow the C/A to
cure without using accelerator.
C/A glue
4) Use dental floss to secure the connec-
tion so they cannot become unplugged.
5) Secure the servo to the aileron hatch
using Phillips screwdriver and the screws
provided with the servo.
6) Apply 1-2 drops of thin C/A to each
of the mounting tabs. Allow the C/A to
cure without using accelerator.
1.5mm
