Seagull Models DHC-1 Chipmunk Assembly Manual page 20

DHC-1 CHIPMUNK Instruction Manual.
- Motor: 110 - 2000 Watts
- Propeller: 17x8 ~ 19x10
- ESC: 85A
- 8S- 9S Lipo

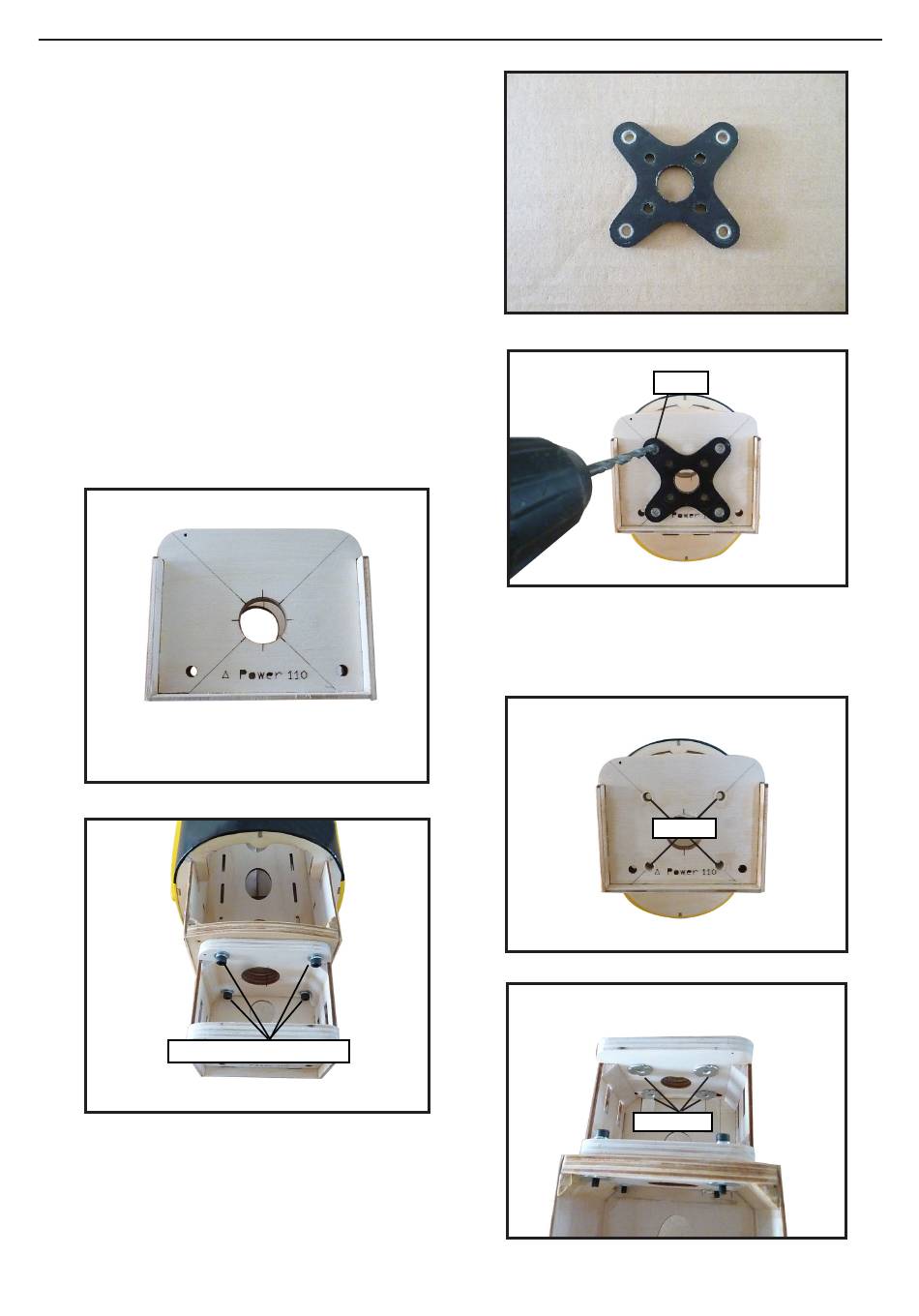

3) Attach the electric motor box to the
firewall suitable with the cross lines
drawn on the electric motor box and fire-
wall. Using M4x25mm to secure the mo-
tor box to the firewall. Please see pictures
below.
5mm
You follow the same pattern on page 18
to drill hole mounted motor.
Then, use 5.5mm drill bit to enlarge the
holes on the electric motor box.
5.5mm
M4x25mm and washers.
Blind nut.
4) Attach the motor to the front of the
electric motor box using four 4mm blind
nut, four M4x20mm hex head bolts to se-
cure the motor. Please see picture shown.
