SBC86808 Pentium

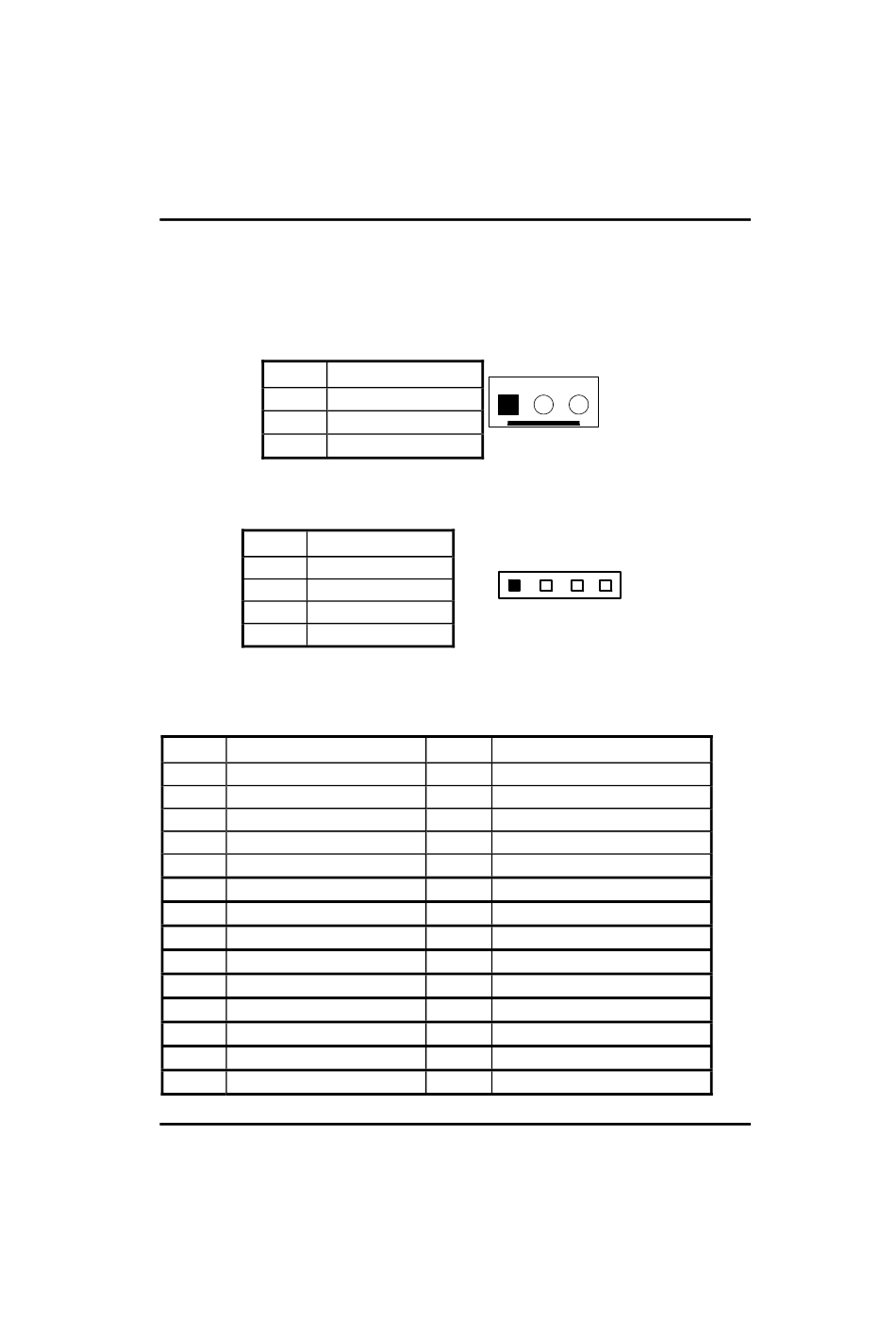

2.4.19 System FAN Connector: FAN2

FAN2 is a system fan connectors. Pentium microprocessors require
a fan for heat dispensing. The fan connector on SBC86808 provides
power to the fan.
Pin
1
2
3

2.4.20 SPEAK Out Connector: JP12

Pin
1
Speak Out Right
2
AUDIO GND
3 AUDIO GND
4
Speak Out Left

2.4.21 PCI-Express Extension Slot: J1

Pin Description
A1 PRSNT#
A2 +12V
A3 +12V
A4 GND
A5 JTAG2
A6 JTAG3
A7 JTAG4
A8 JTAG5
A9 +3.3V
A10 +3.3V
A11 PERST#
A12 GND
A13 REFCLK+
A14 REFCLK-
Jumpers and Connectors
®
M All-in-One Mini ITX Board User's Manual
Description
GND
+12V
Sensor
Description
Pin
B1 +12V
B2 +12V
B3 RSVD
B4 GND
B5 SMCLK
B6 SMDAT
B7 GND
B8 +3.3V
B9 JTAG1
B10 +3.3VAUX
B11 WAKE#
B12 RSVD1
B13 GND
B14 PETP0
1 2 3
1
2 3 4
Description
