SBC86808 Pentium M All-in-One Mini ITX Board User's Manual

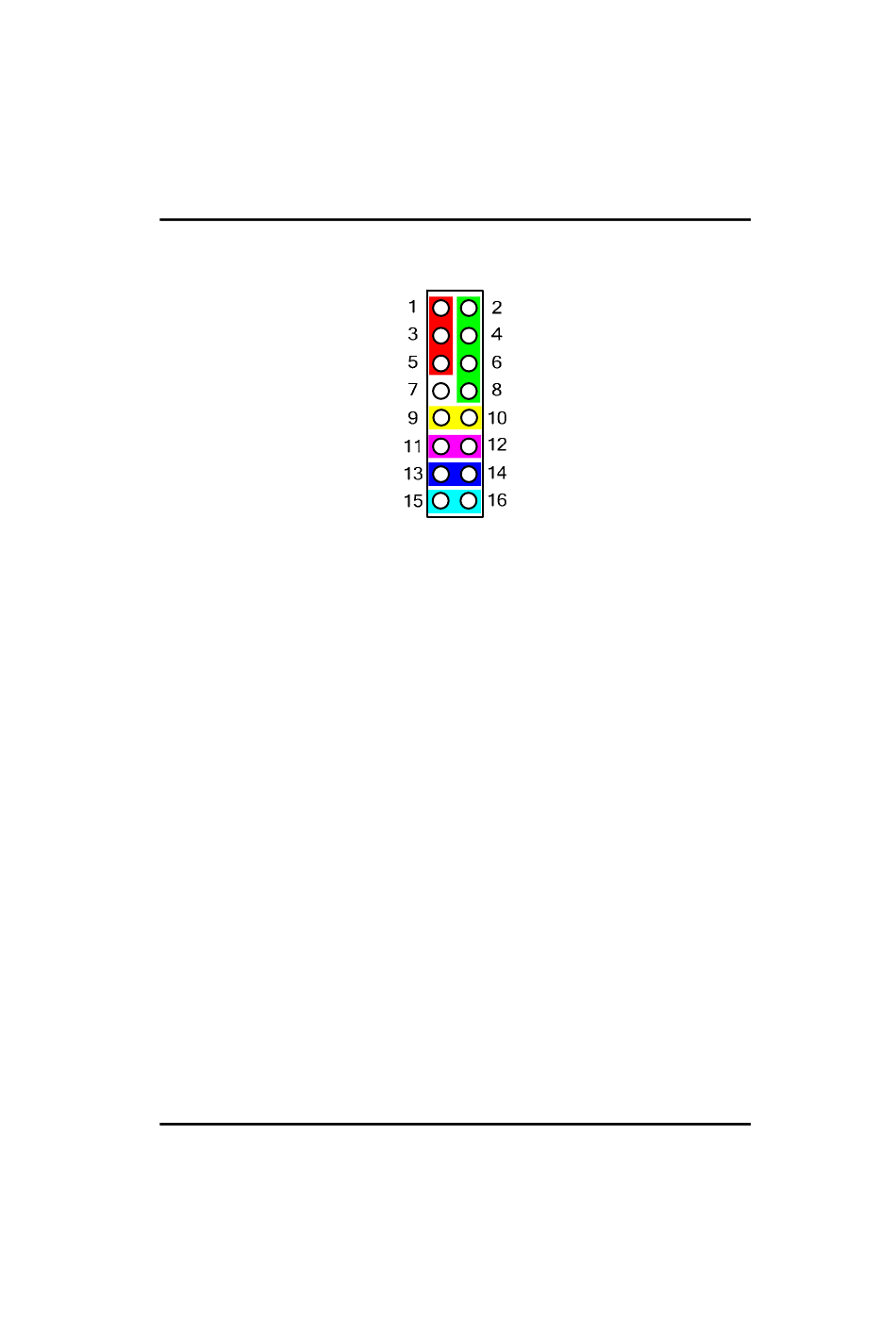

2.4.4 Front Panel Bezel Connector: CN5

Power LED
This 3-pin connector, designated at Pins 1 and 5 of CN5, connects
the system power LED indicator to its respective switch on the case.
Pin 1 is +, and pin 5 is assigned as -. The Power LED lights up
when the system is powered ON.
External Speaker and Internal Buzzer Connector
Pins 2, 4, 6, and 8 of CN5 connect to the case-mounted speaker
unit or internal buzzer. Short pins 4-6 when connecting the to an
internal buzzer. When connecting an external speaker, set these
jumpers to Open and install the speaker cable on pin 8 (+) and pin
2 (-).
ATX Power On/Off Button
This 2-pin connector, designated at Pins 9 & 10 of CN5, connects
the ATX power button of the front panel to the SBC86808 - allowing
user to control the power on/off state of the ATX power supply.
System Reset Switch
Pins 11 & 12 of CN5 connect to the case-mounted reset switch and
allow rebooting of your computer instead of turning OFF the power
switch. This is a preferred method of rebooting in order to prolong
the life of the system's power supply.
HDD Activity LED
This connector extends to the hard drive activity LED on the control
