SBC86808 Pentium M All-in-One Mini ITX Board User's Manual

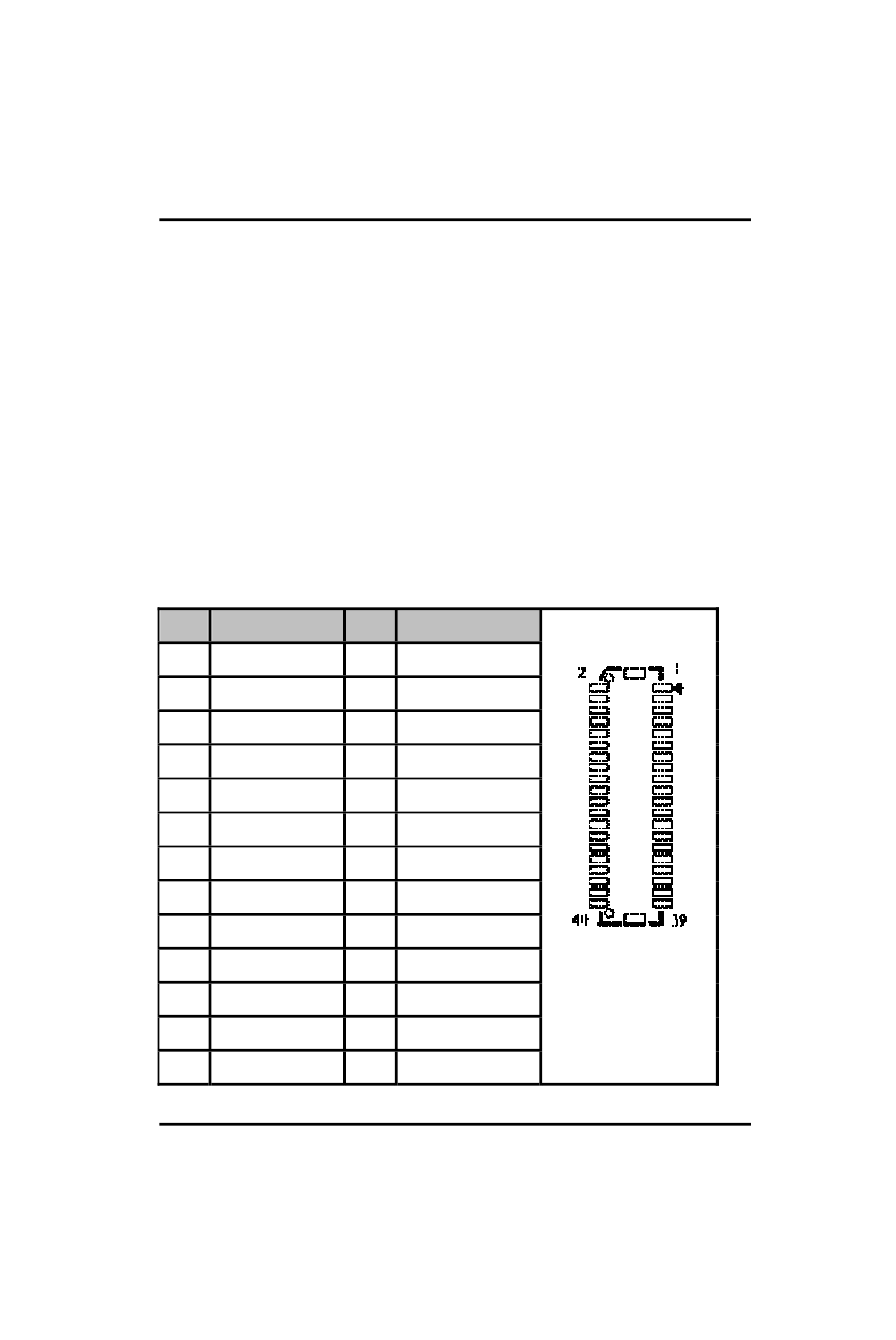

2.4.7 LVDS Connector: CN8, CN9

The LVDS interface which is with 40-pin connector supports 18/24-
bit single/dual channel type of LCD.
Remark:
The LVDS connector on the SBC86808 is a 40-pin connector. The
matching connector is strongly recommended to use JST SHDR-
40V-S-B.
The 7-pin inverter connector on the SBC86808 is with Hirose
connector. The matching connector is strongly recommended to use
Hirose DF13-7S-1.25C.
Pin Deception
1 VCCM
3 VCCM
5 VCCM
7 N.C.
9 GND
11 Channel B D3-
13 Channel B D3+
15 GND
17 Channel B CLK-
19 Channel B CLK+ 20
21 GND
23 Channel A D0-
25 Channel A D0+
18
Pin Deception
2 VCCM
4 VCCM
6 VCCM
8 N.C.
10 GND
12 Channel B D0-
14 Channel B D0+
16 GND
18 Channel B D1-
Channel B D1+
22 GND
24 Channel B D2-
26 Channel B D2+
Jumpers and Connectors
CN8
