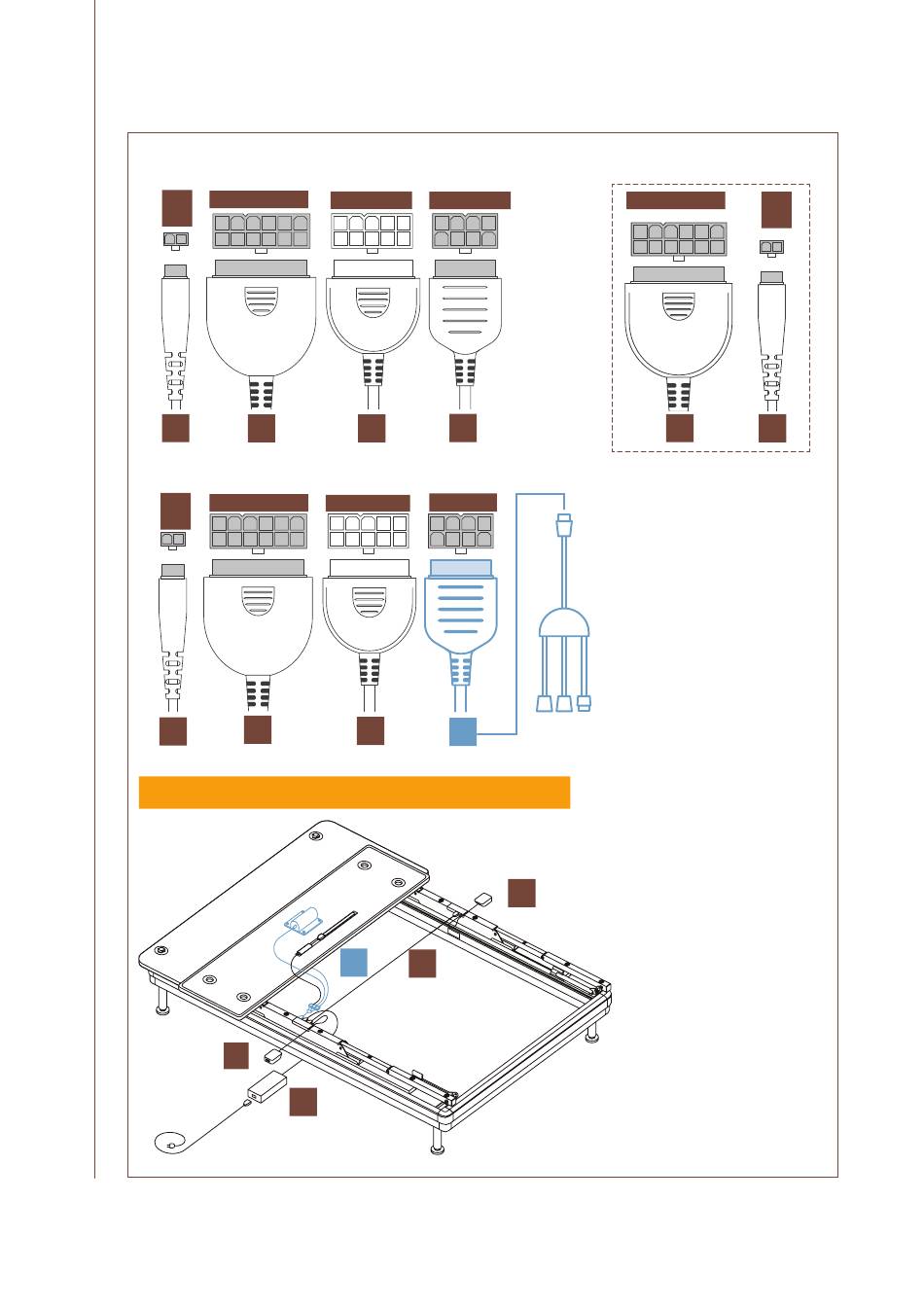

LOGICDATA SILVERstandard Owner's Manual page 22

SILVERstandard
12 pin
2
pin
H I
SILVERstandard+ (with Massage Function)
12 pin
2
pin
H I
ENSURE ALL PLUGS ARE ORIENTED CORRECTLY
H
22 // SILVER SERIES OWNER'S MANUAL
10 pin 8 pin
J M
8 pin
10 pin
J G
G I
J
12 pin
I
1. Connect the two Side Rails
with the Side-to-Side Cable
(I) by plugging each end
into the appropriate Plug
Port.
2. Connect one USB Module
(H) on each Side Rail (see
below).
3. Connect the Power Con-
verter (J) to the appropriate
Plug Port.
4. Plug
Adapter Cable (G) or
Underbed Light cable
into the Plug Ports on the
Side Rail.
5. Turn the Base Platform
over so that it is face
down across the Side
Rails. Ensure its holes are
H
aligned with the holes on
the Side Rails (A, B).
Use 4 Mounting Screws (P)
6.
to fix the Base platform (M)
by hand. Turn each screw
until it is hand-tight.
2
pin
H
the Massage
