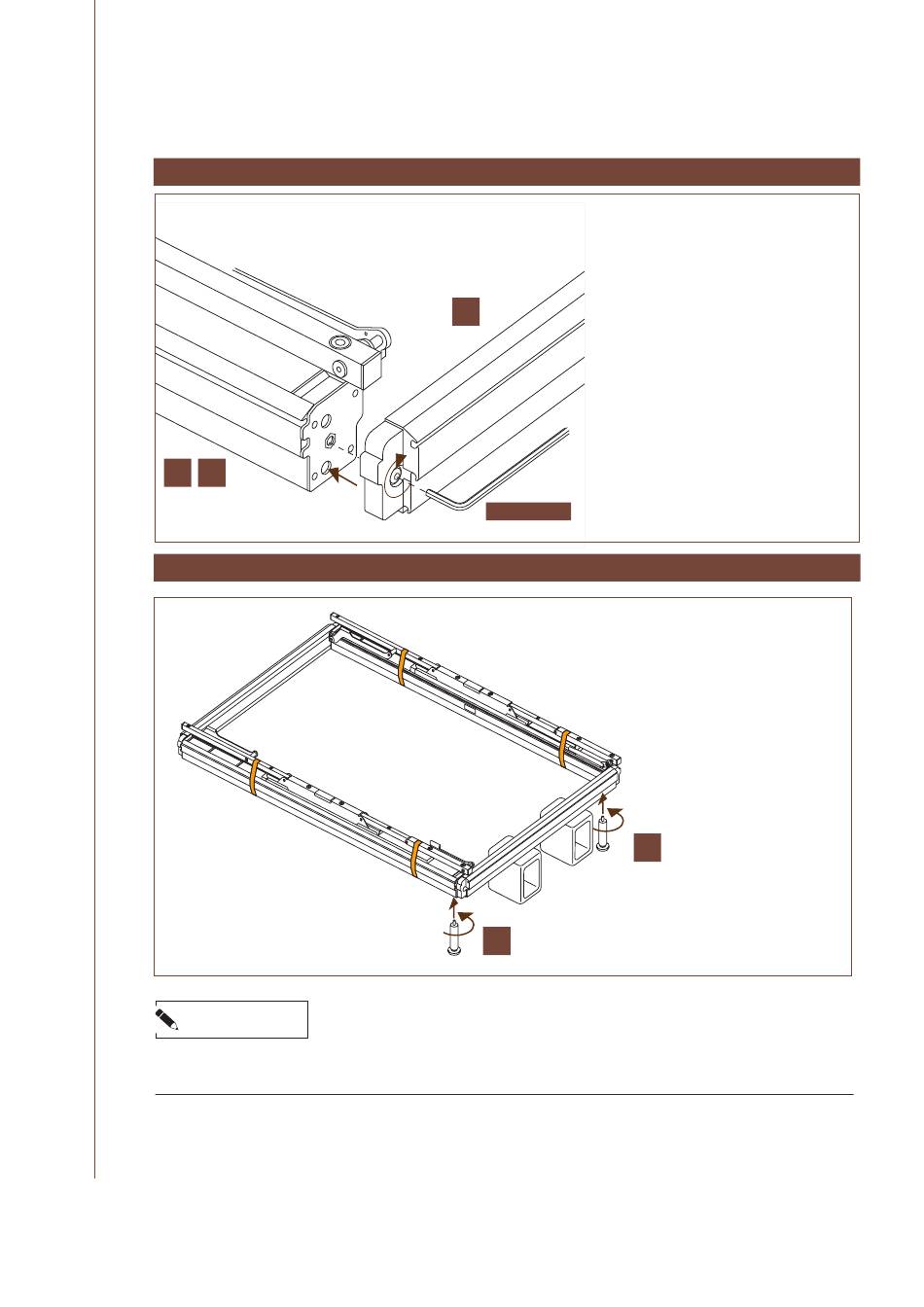

CONNECTING THE BARS
A B
ATTACHING THE LEGS
NOTICE
Ensure that the Assembly Supports are placed correctly. The long sides should be vertical and the
hollow sides should face outwards. Do not place the Crossbar directly onto the hollow parts.
18 // SILVER SERIES OWNER'S MANUAL
Move the Crossbars (C) and the Side
1.
Rails (A, B) together
2. Ensure that the protruding parts on
the Crossbar side of the Corner Con-
nector are placed into the holes on
the Side Rail sides.
C
Insert the Assembly Tool (TOOL)
3.
and turn the Mounting Screw
clockwise.
4. Continue turning until the Mount-
ing Screw is hand-tight.
5. Repeat the entire process for each
Corner Connector.
TOOL
1.
2.
3.
D
Lift up the frame by the center of
one Crossbar.
Place the frame on the Assembly
Supports.
Screw in the first two legs (D) by
hand.
D
