Design and function

Intermediate hose package connection

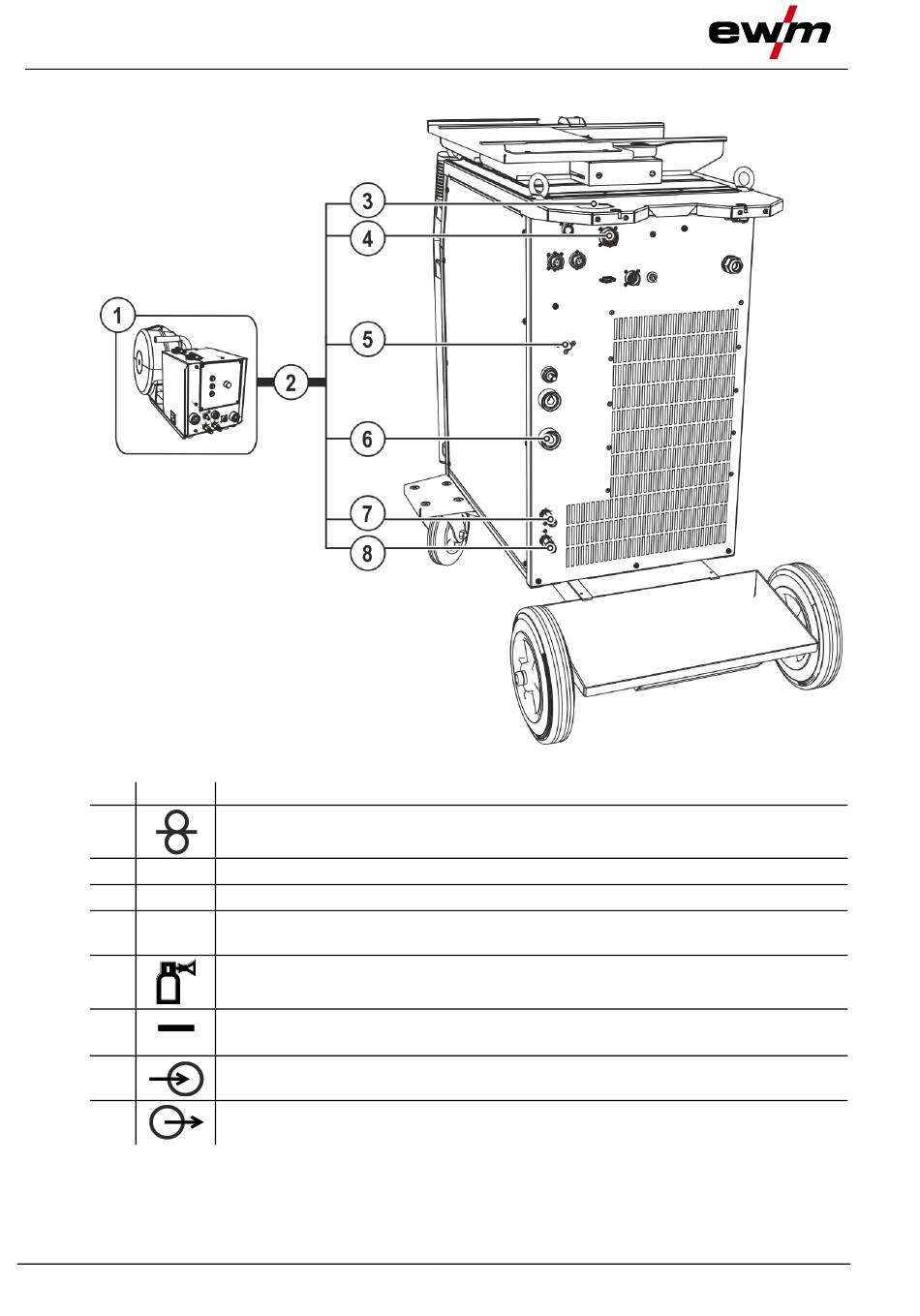

5.6 Intermediate hose package connection
Item Symbol
1
2
3
4 X2
5
6
7
8
38
Description 0
Wire feed unit
Intermediate hose package
Intermediate hose package strain relief
Connection socket (28-pole)
Control lead
Connecting thread (G¼")
Shielding gas
Connector plug (TIG)
Welding current, minus potential
Quick connect coupling (red)
coolant return
Quick connect coupling (blue)
coolant supply
Figure 5-13
099-000118-EW501
24.11.2017
