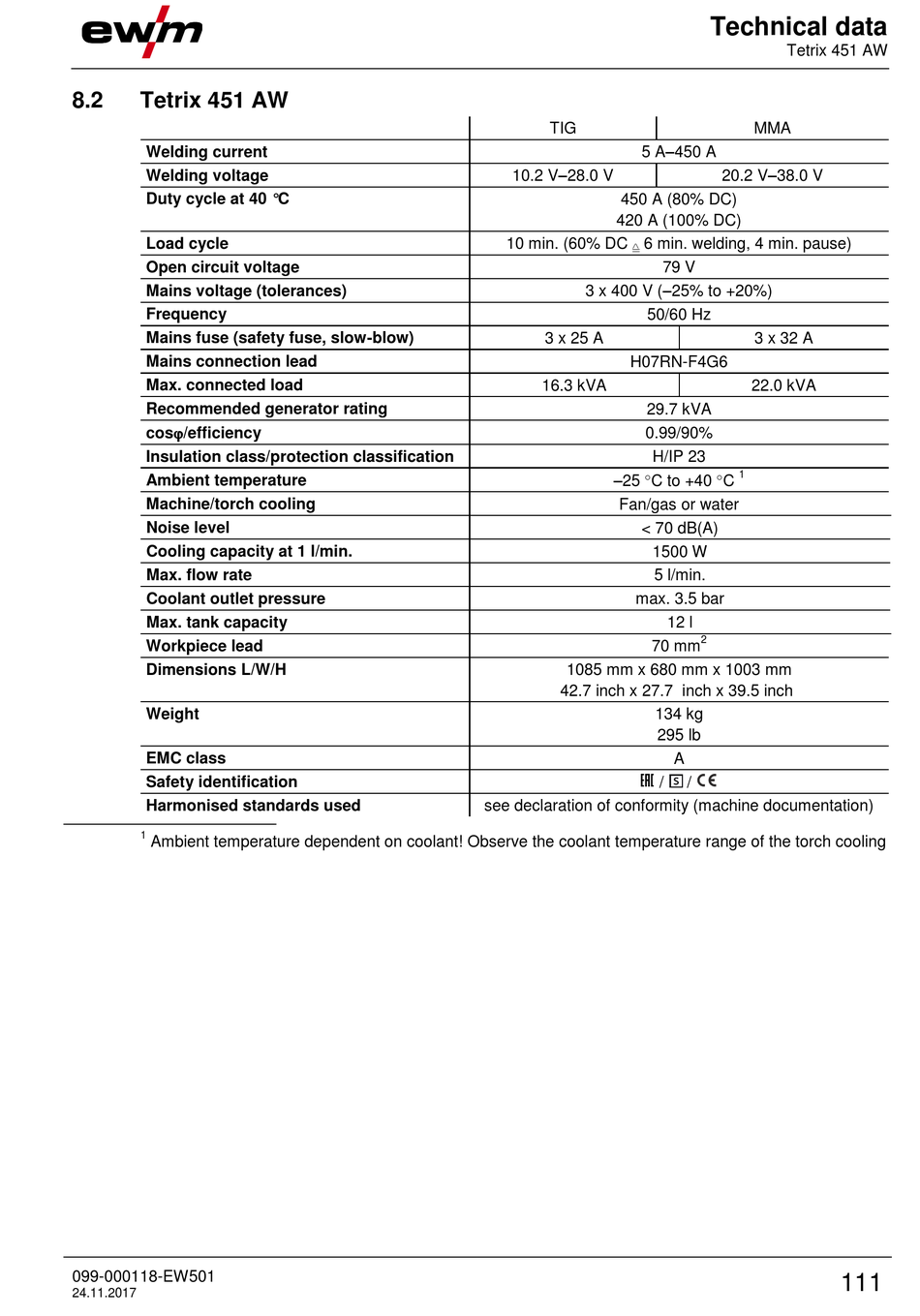

Tetrix 451 Aw - EWM Tetrix 351 AW FW Operating Instructions Manual

8.2

Tetrix 451 AW

Welding current
Welding voltage
Duty cycle at 40 °C
Load cycle
Open circuit voltage
Mains voltage (tolerances)
Frequency
Mains fuse (safety fuse, slow-blow)
Mains connection lead
Max. connected load
Recommended generator rating
cos/efficiency
Insulation class/protection classification
Ambient temperature
Machine/torch cooling
Noise level
Cooling capacity at 1 l/min.
Max. flow rate
Coolant outlet pressure
Max. tank capacity
Workpiece lead
Dimensions L/W/H
Weight
EMC class
Safety identification
Harmonised standards used
1
Ambient temperature dependent on coolant! Observe the coolant temperature range of the torch cooling
099-000118-EW501
24.11.2017
TIG
5 A–450 A
10.2 V–28.0 V
450 A (80% DC)
420 A (100% DC)
10 min. (60% DC 6 min. welding, 4 min. pause)

3 x 400 V (–25% to +20%)
50/60 Hz
3 x 25 A
H07RN-F4G6
16.3 kVA
29.7 kVA
0.99/90%
H/IP 23
–25 C to +40 C
Fan/gas or water
< 70 dB(A)
1500 W
5 l/min.
max. 3.5 bar
70 mm
1085 mm x 680 mm x 1003 mm
42.7 inch x 27.7 inch x 39.5 inch
134 kg
see declaration of conformity (machine documentation)
Technical data
Tetrix 451 AW
MMA
20.2 V–38.0 V
79 V
3 x 32 A
22.0 kVA
1
12 l
2
295 lb
A
/ /
111
