Power source for hot wire welding

Hazards due to improper mounting!
In this system, the hot wire power source is positioned on the carrier platform of the
mobile power source (filler wire).
•
The machine may only be mounted and operated on the carrier platform for the hot wire
power source!
•
Safe operation of the machine must be guaranteed at all times!
Item Symbol
1
2
3
4
36
Description 0
Carrier platform for hot wire power source
Front holder
Push the hot wire power source with the machine feet into the holder
Rear holder
To fix, push the holder into the machine feet and
secure with fixing screws.
Fixing screws (x 4)
CAUTION

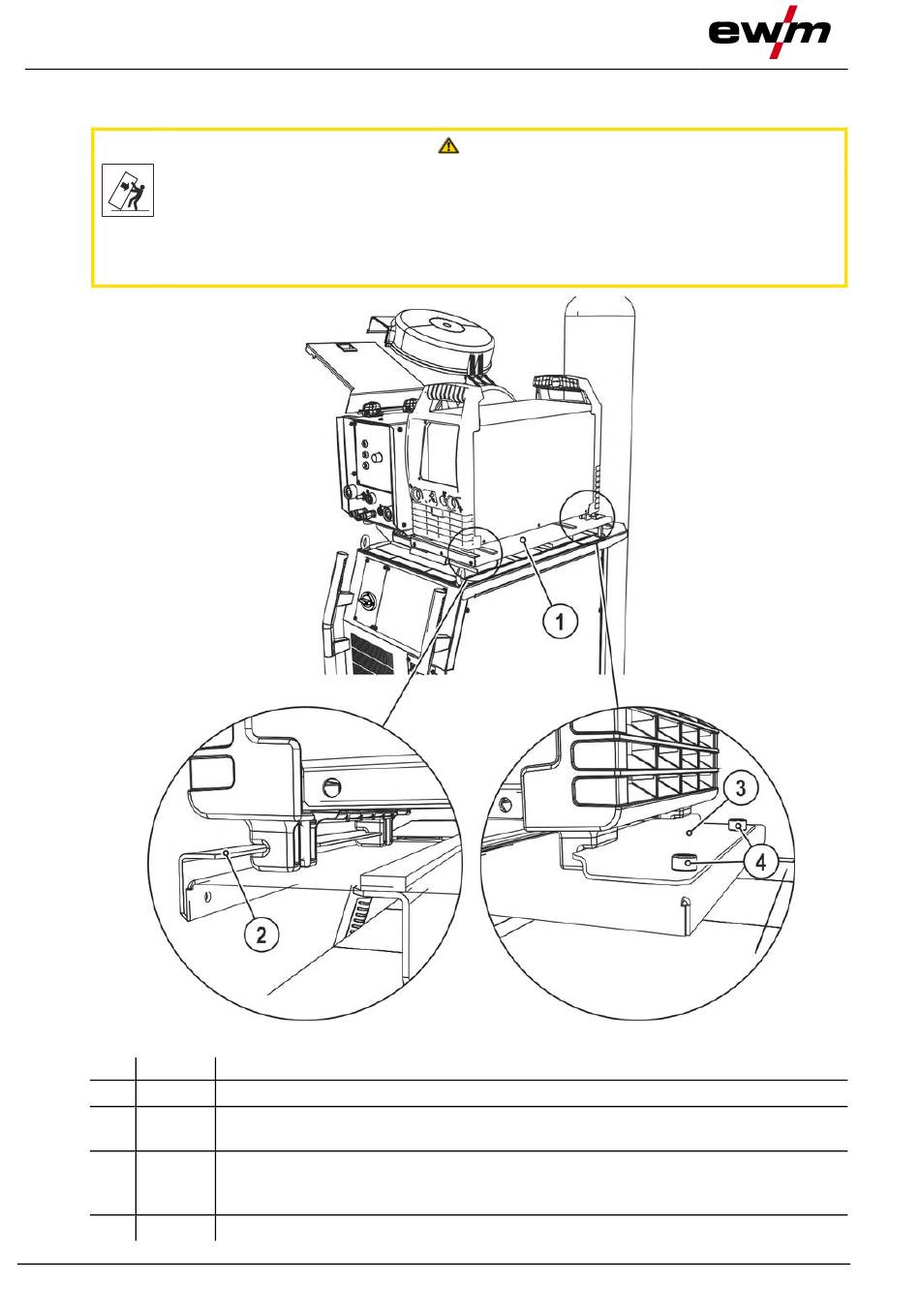

Figure 5-11
