5.13.7.6 TIG up/down torch (8-pole)

Up/down torch with one torch trigger

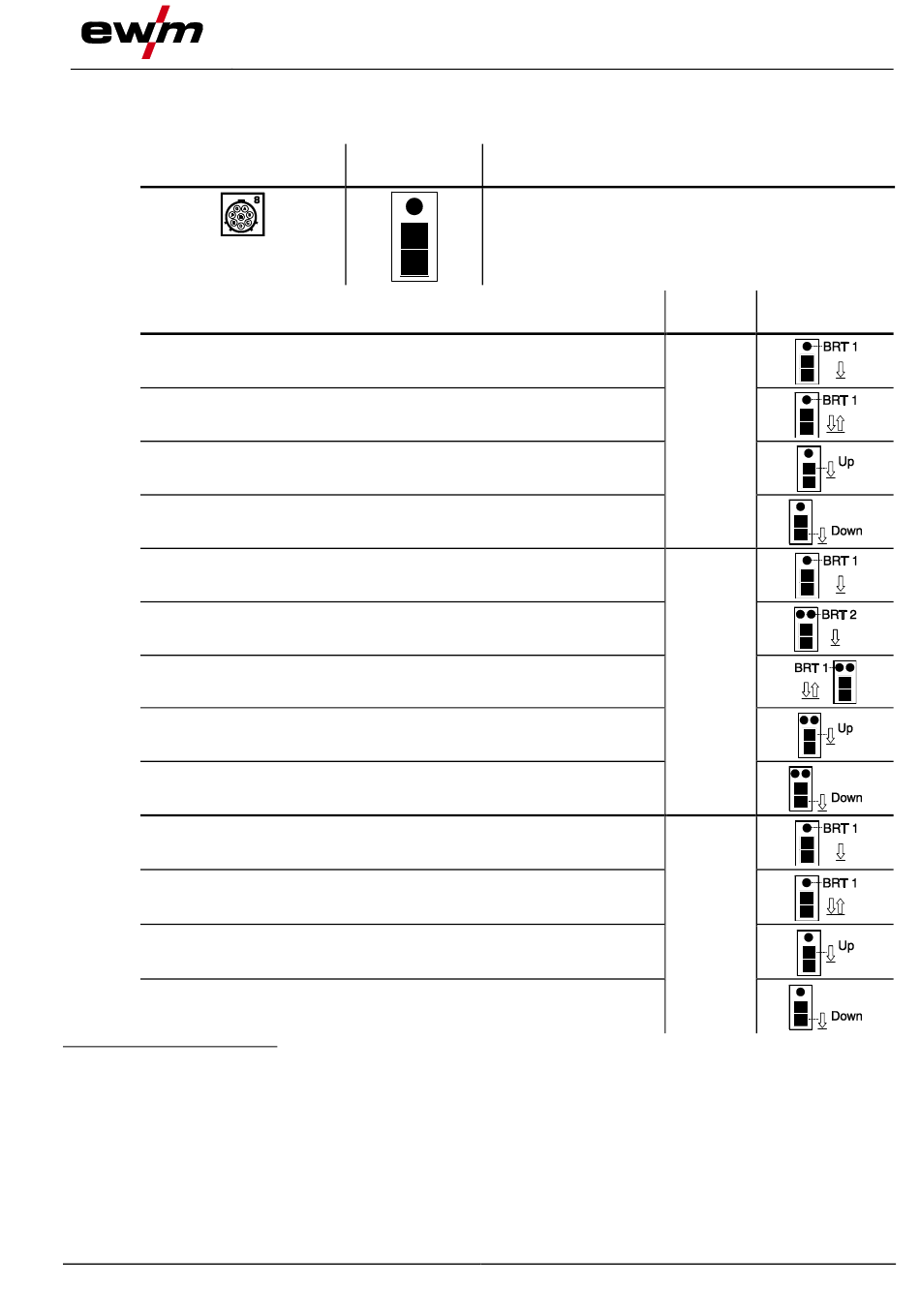

Functions
Welding current on/off
Secondary current (tapping function)
Increase welding current (up function
Decrease welding current (down function
Welding current on/off
Secondary current
Secondary current (tapping function
Program selection upwards
Program selection downwards
Welding current on/off
Secondary current (tapping function)
Increase welding current via current jump
Decrease welding current via current jump
1
> see 5.13.7.1 chapter
2
> see 5.13.7.3 chapter
3
> see 5.13.7.4 chapter
