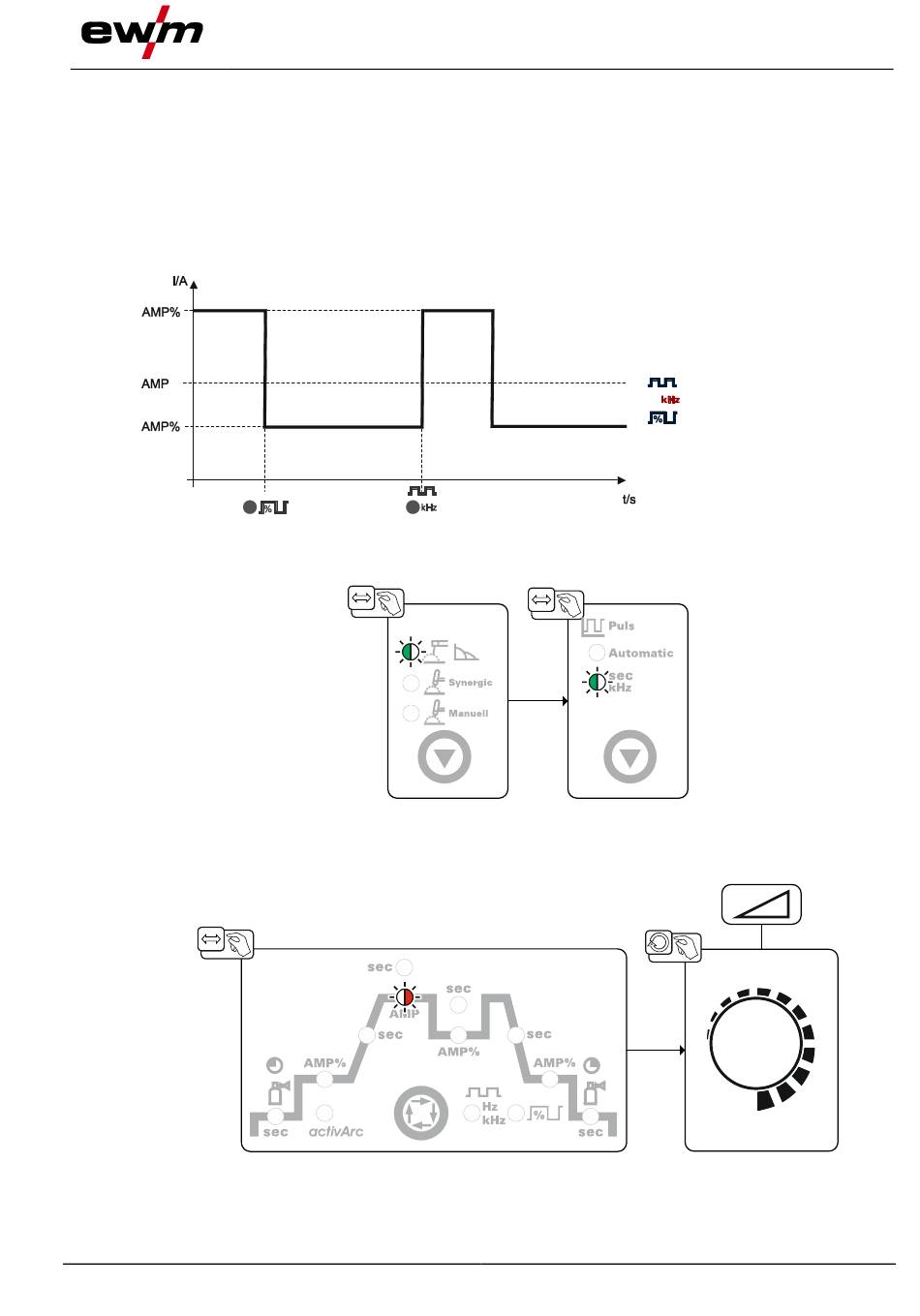

5.10.6 Average value pulsing in the vertical-up position (PF)

Welding characteristics:
•
Especially suitable for root welding
•
Fine-flaked weld surface with a TIG look for final passes
•
Less finishing work thanks to less spatter
•
Highly suitable for difficult electrodes
•
Outstanding gap bridging with no sagging of the root side
• Less distortion thanks to controlled heat input
Selection
Pulse current setting
099-000118-EW501
24.11.2017
Design and function
AMP = main current
AMP% = pulse current
AMP% = pulse pause current
Figure 5-59
Figure 5-60
Figure 5-61
MMA welding
= frequency
= duty cycle
71
