PC interface

PC 300 welding parameter software
Set all welding parameters on the PC and simply transfer to one or more welding machines (accessory,
set consisting of software, interface, connection leads)
•
Manage up to 510 JOBs
•
Exchange JOBs with the welding machine
•
Online data communication
•
Default settings for welding data monitoring
•
Always up-to-date thanks to standard update function for new welding parameters
•
Data backup by easy communication between power source and PC
Item Symbol
1
2
3
4
5
Equipment damage or faults may occur if the PC is connected incorrectly!
Not using the SECINT X10USB interface results in equipment damage or faults in signal
transmission. The PC may be destroyed due to high frequency ignition pulses.
•
Interface SECINT X10USB must be connected between the PC and the welding machine!
•
The connection must only be made using the cables supplied (do not use any additional
extension cables)!
5.16

Power-saving mode (Standby)

You can activate the power-saving mode by either pressing the push-button > see 4.3 chapter for a
prolonged time or by setting a parameter in the machine configuration menu (time-controlled power-
saving mode
When power-saving mode is activated, the machine displays show the horizontal digit in the
centre of the display only.
Pressing any operating element (e.g. turning a rotary knob) deactivates power-saving mode and the
machine is ready for welding again.
099-000118-EW501
24.11.2017
Description 0
PC interface, serial (D-Sub connection socket, 9-pole)
Connection cable, 9-pole, serial
SECINT X10 USB
USB connection
Windows PC
) > see 5.18 chapter.
Design and function

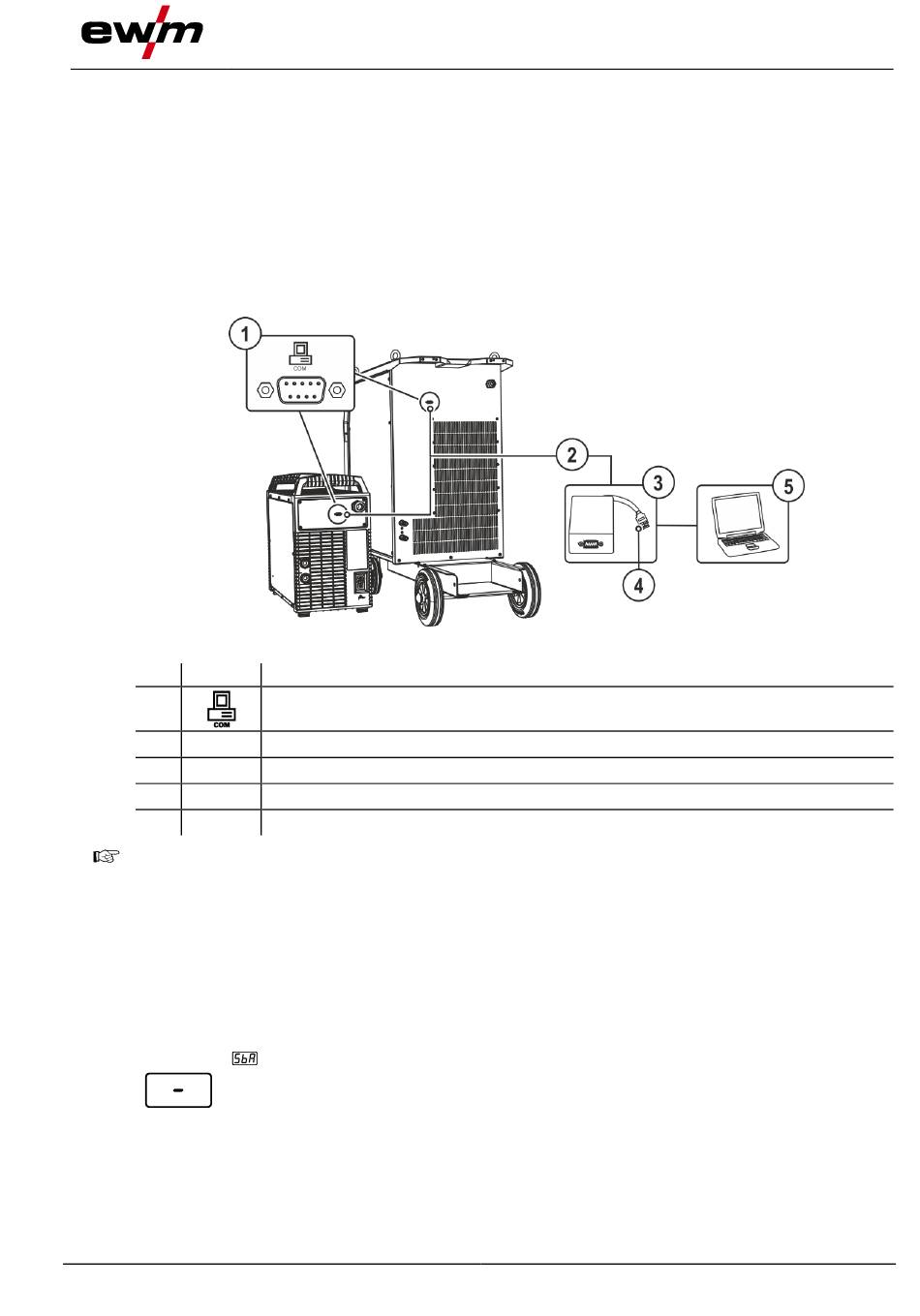

Figure 5-78
PC interface
93
