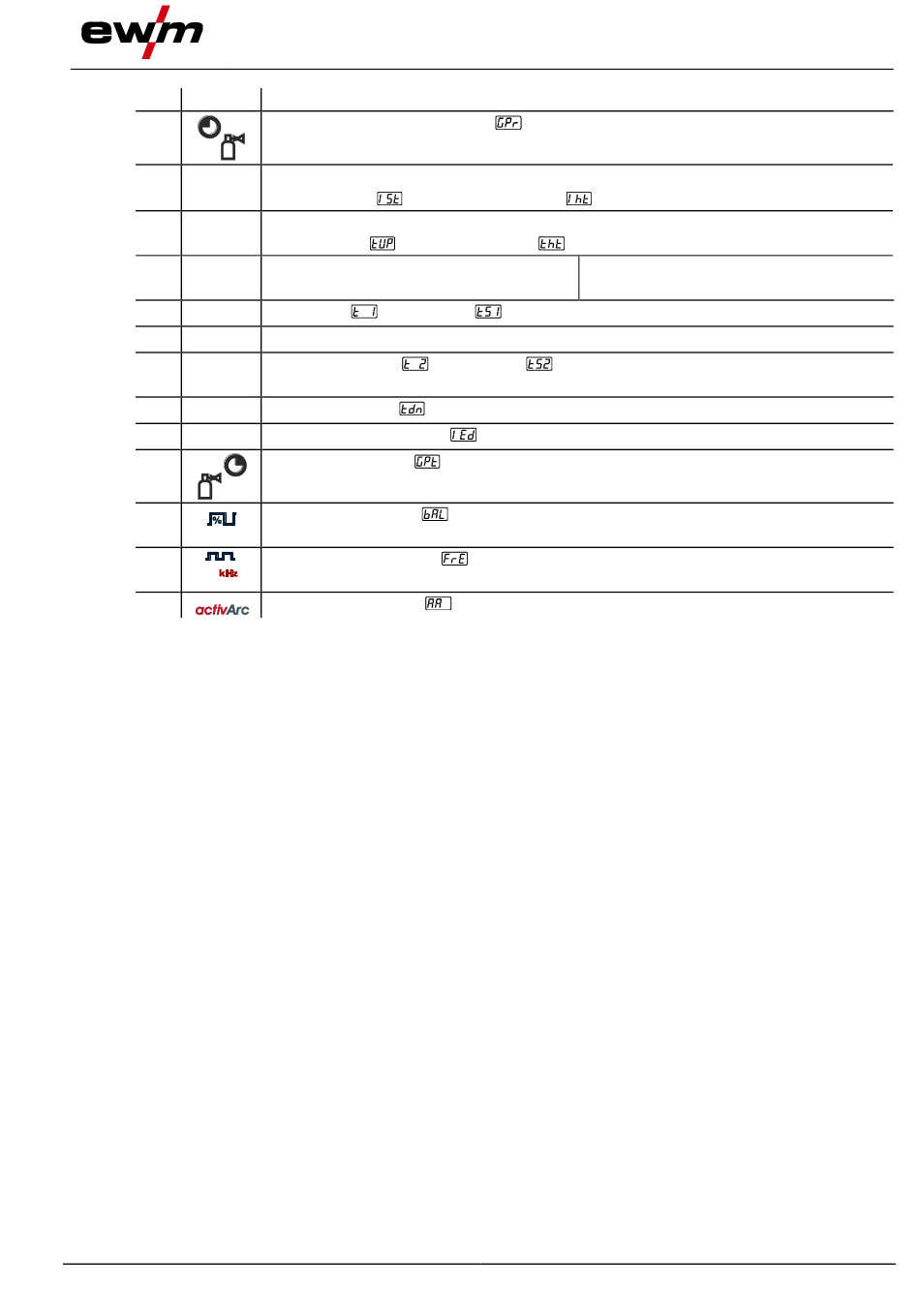

Machine description – quick overview
Description 0
Gas pre-flow time signal light
Signal light
Ignition current (TIG)/hot start current
Signal light
Up-slope time (TIG)/hot start time
Main current (TIG) / pulse current
I min to I max (1 A increments)
Pulse time / slope time
Secondary current (TIG)
Pulse pause time / slope time
The pulse time applies to the secondary current phase (AMP%)
Down-slope time signal light
End current signal light
Gas post-flow time
Balance signal light
Pulse balance
Frequency signal light
Pulse frequency
Signal light activArc
Machine control – Operating elements
(MMA)
(MMA)
Main current (MMA)
I min to I max (1 A increments)
from AMP% to AMP / Spot time
from AMP to AMP%
> see 5.9.15 chapter
