Machine description – quick overview
Machine control – Operating elements
Item Symbol
6
7
8
9
10
11
12 Hold
13
4.3.1

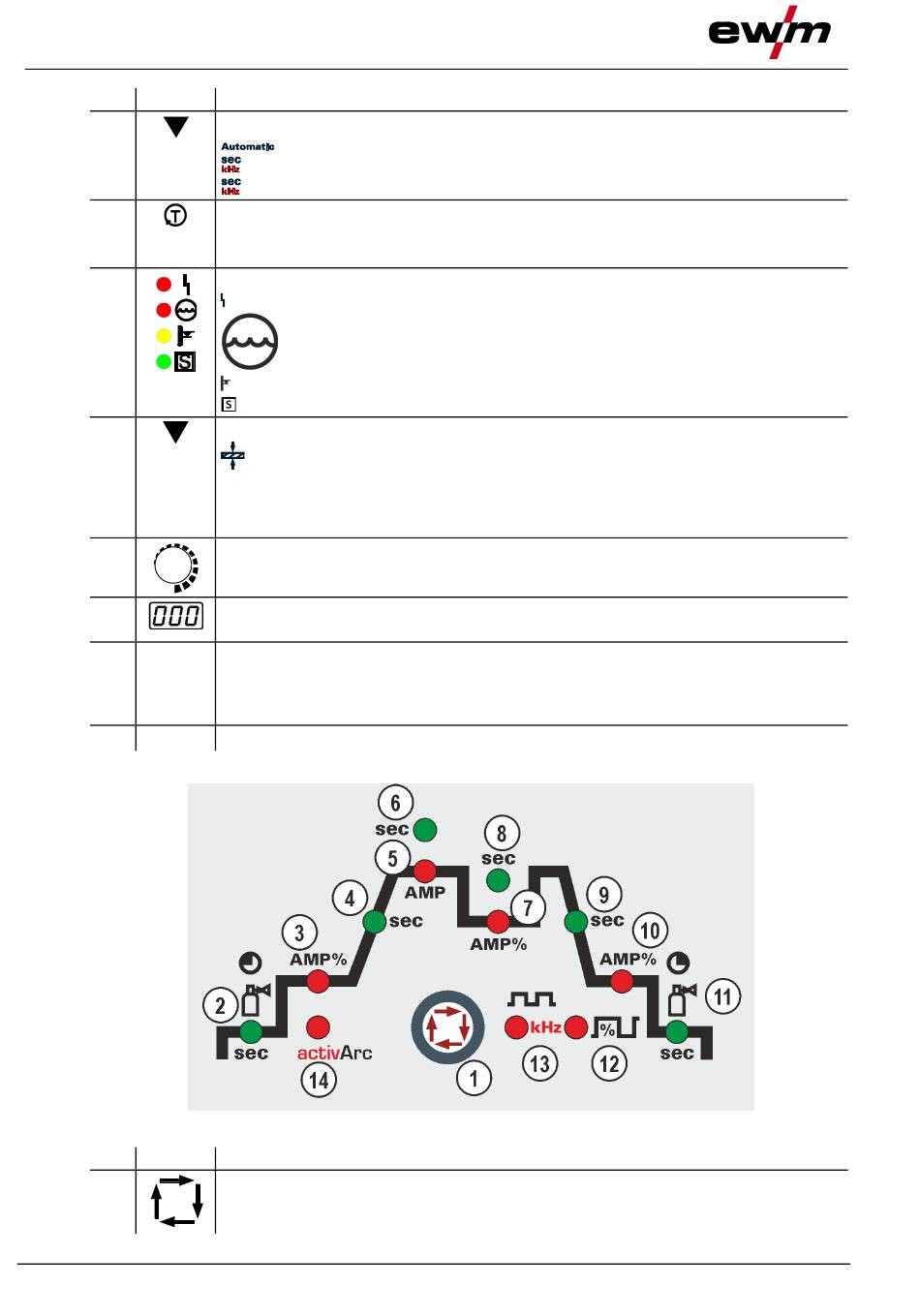

Function sequence

Item Symbol
1
20
Description 0
Pulsing push-button
- TIG automated pulsing (frequency and balance)
------- Signal light lights up in green: Pulsing (thermal pulsing)/MMA pulse welding
------- Signal light lights up in red: kHz pulsing (metallurgical pulsing)
Gas test/rinse hose package button
> see 5.9.2 chapter
Error/status indicators
------ Collective interference signal light
- Water deficiency signal light (welding torch cooling)
--------- Excess temperature signal light
-------- S safety sign signal light
Display switching button
------- Material thickness display
VOLT --- Welding voltage display
JOB ----- JOB number display
PROG -- Program number display
Welding parameter setting rotary dial
Setting currents, times and parameters.
Welding data display (3-digit)
Displays the welding parameters and the corresponding values > see 5.7 chapter
Signal light Status display
After each completed welding task, the last values used in the welding process for the
welding current and welding voltage are shown on the displays, and the signal light will
be on
Functional sequence > see 4.3.1 chapter
Description 0
Select welding parameters button
This button is used to select the welding parameters depending on the welding process
and operating mode used.
Figure 4-4
