Design and function

TIG welding

5.9 TIG welding
5.9.1

Welding torch and workpiece line connection

Prepare welding torch according to the welding task in hand (see operating instructions for the torch).
Equipment damage due to improperly connected coolant pipes!
If the coolant pipes are not properly connected or a gas-cooled welding torch is used, the coolant
circuit is interrupted and equipment damage can occur.
•
Connect all coolant pipes correctly!
•
Completely unroll the hose package and the torch hose package!
•
Observe maximal hose package length > see 5.1.5.2 chapter.
•
When using a gas-cooled welding torch, use a hose bridge to establish the coolant
circuit > see 9 chapter.
Item Symbol
1
2
3
4
44
Description 0
Welding torch
Welding torch hose package
Connection socket, welding torch control cable > see 5.9.1.1 chapter
G¼" connecting nipple, "-" welding current
Shielding gas connection (with yellow insulating cap) for TIG welding torch

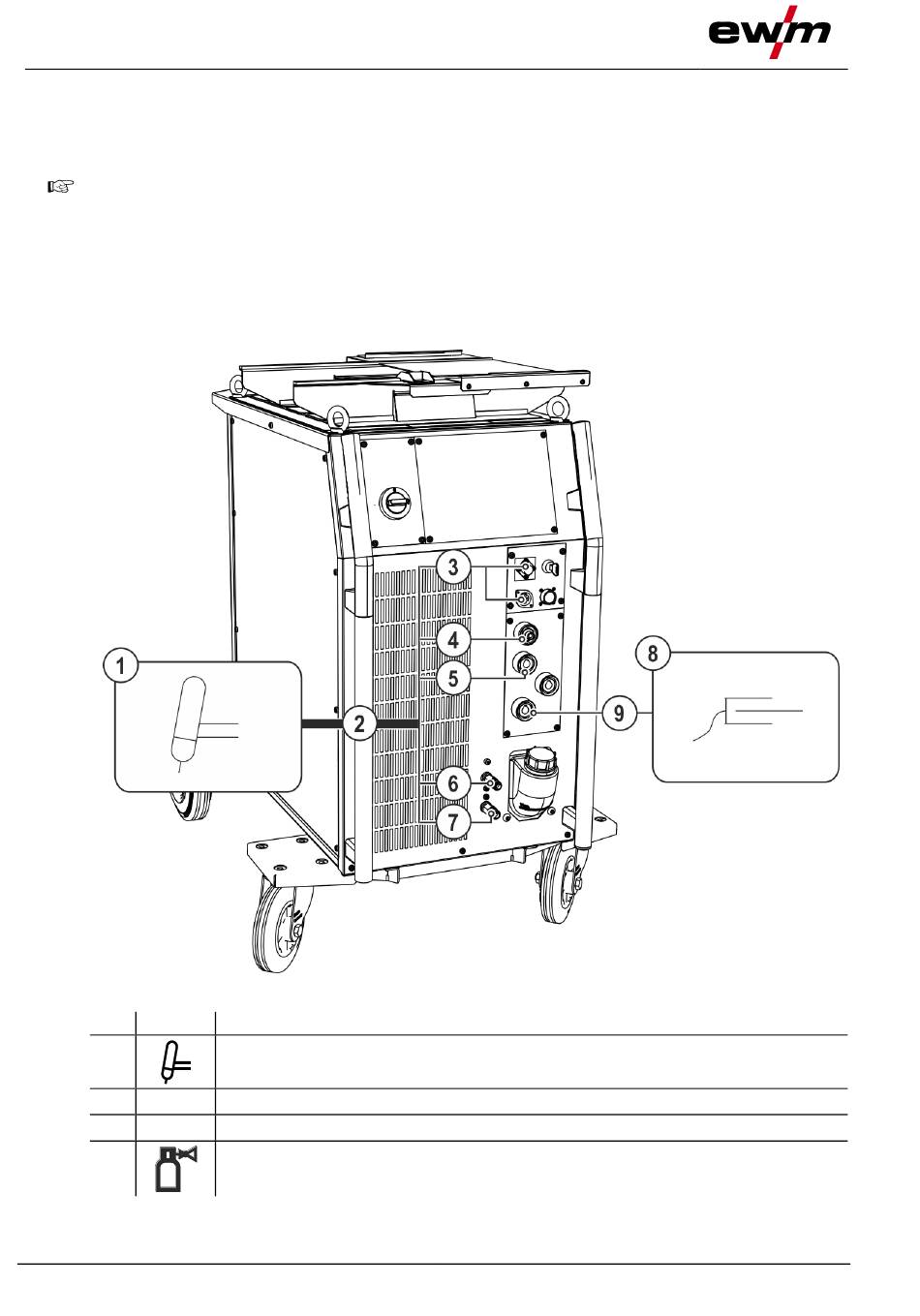

Figure 5-18
099-000118-EW501
24.11.2017
