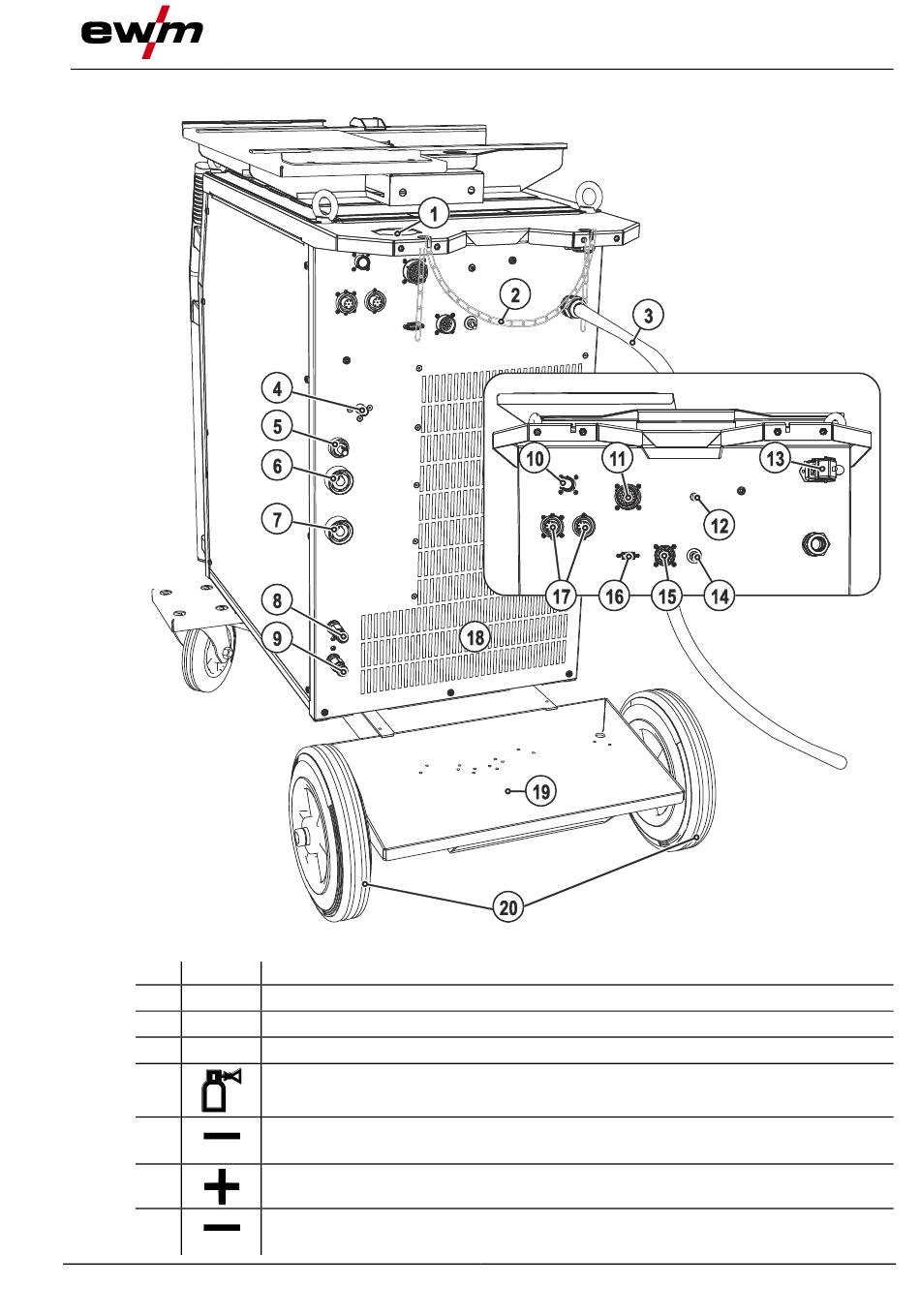

Machine description – quick overview
Description
0
Intermediate hose package strain relief
Securing elements for shielding gas cylinder (strap/chain)
Mains connection cable > see 5.5.3 chapter
G¼" connecting nipple
Shielding gas connection on the pressure regulator.
Connector plug (TIG hot wire)
Welding current, minus potential
Connection socket for "+" welding current
Connection to TIG power source for hot wire application
Connection socket (TIG)
Welding current, minus potential
Figure 4-2
Rear view
