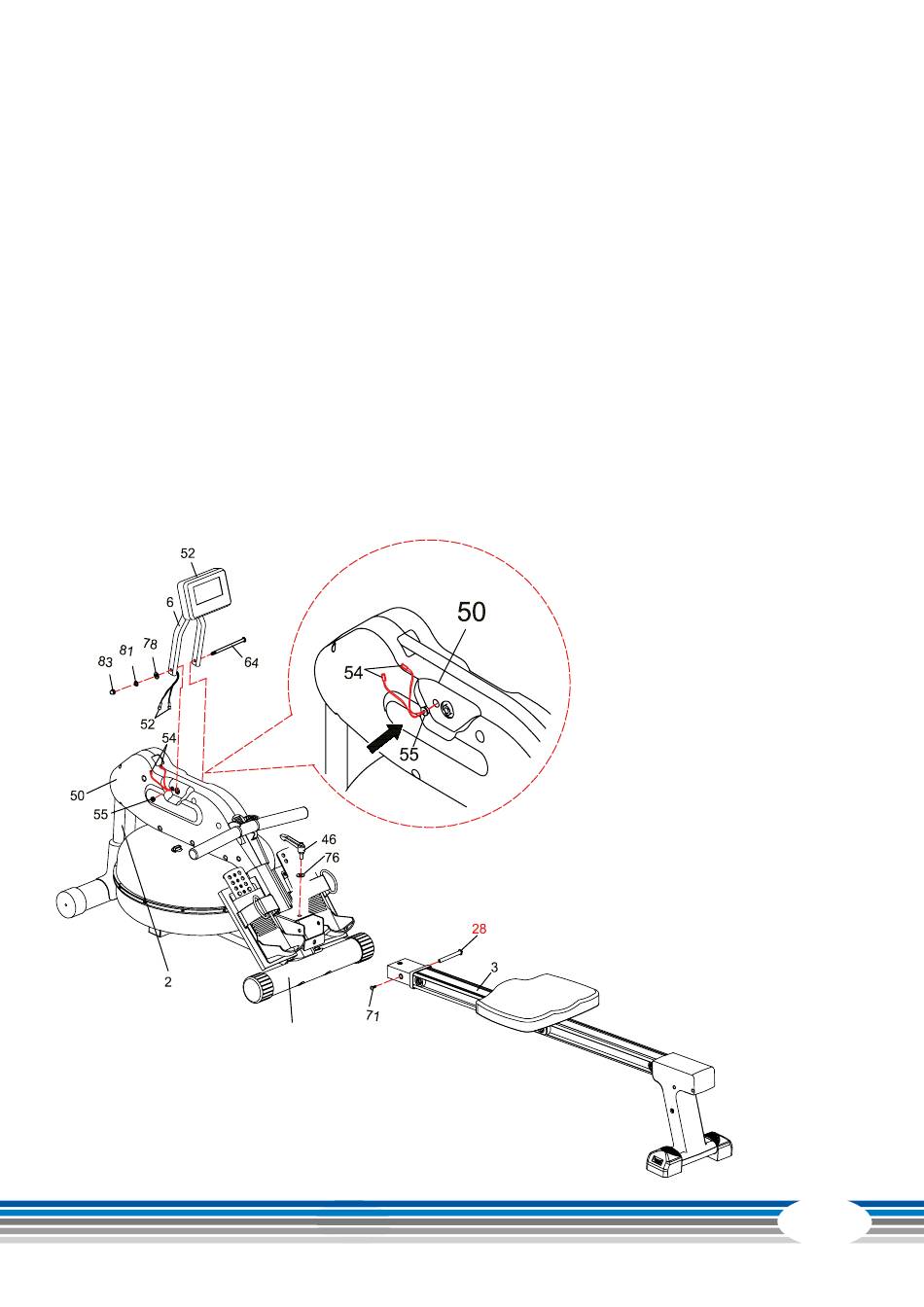

Step 5:
Mount the rail (3) with screw (M6 x 1 x 15 mm) (71) and nut (M10 x 1.25 x 88mm) (28) on
the main frame (2). Lock the rail (3) in the unfolded position with the adjusting lever (46)
and the washer (M10) (76).
NOTE: When you have tightened the lever (46), the rear base of the frame (1) might be
slightly lifted. That is absolutely normal and will lower, when you sit down on the rowing
machine.
Step 6:
Place two AA batteries in the display (52). Mount the display holder (6) with a screw (M8 x
1.25 x 130 mm) (64), a washer (M8) (78), a lock washer (M8) (81), and a nut (M8 x 1.25) (83)
on the frame (2).
Step 7:
See detailed illustration. Clamp the eye (55) on both sensor cables (54). Then push the eye
(55) in the left cover (50). Connect the sensor cables (54) with the connection cables of the
display (52). Push the remaining cable in the left cover (50).
