3.2 Assembly instructions
Please look carefully at all illustrated assembly steps before the assembly and do the
assembly according to the given order.
Before you unpack the Baltic rowing machine, make sure that you have a working
space of 2 m x 2.5 m.

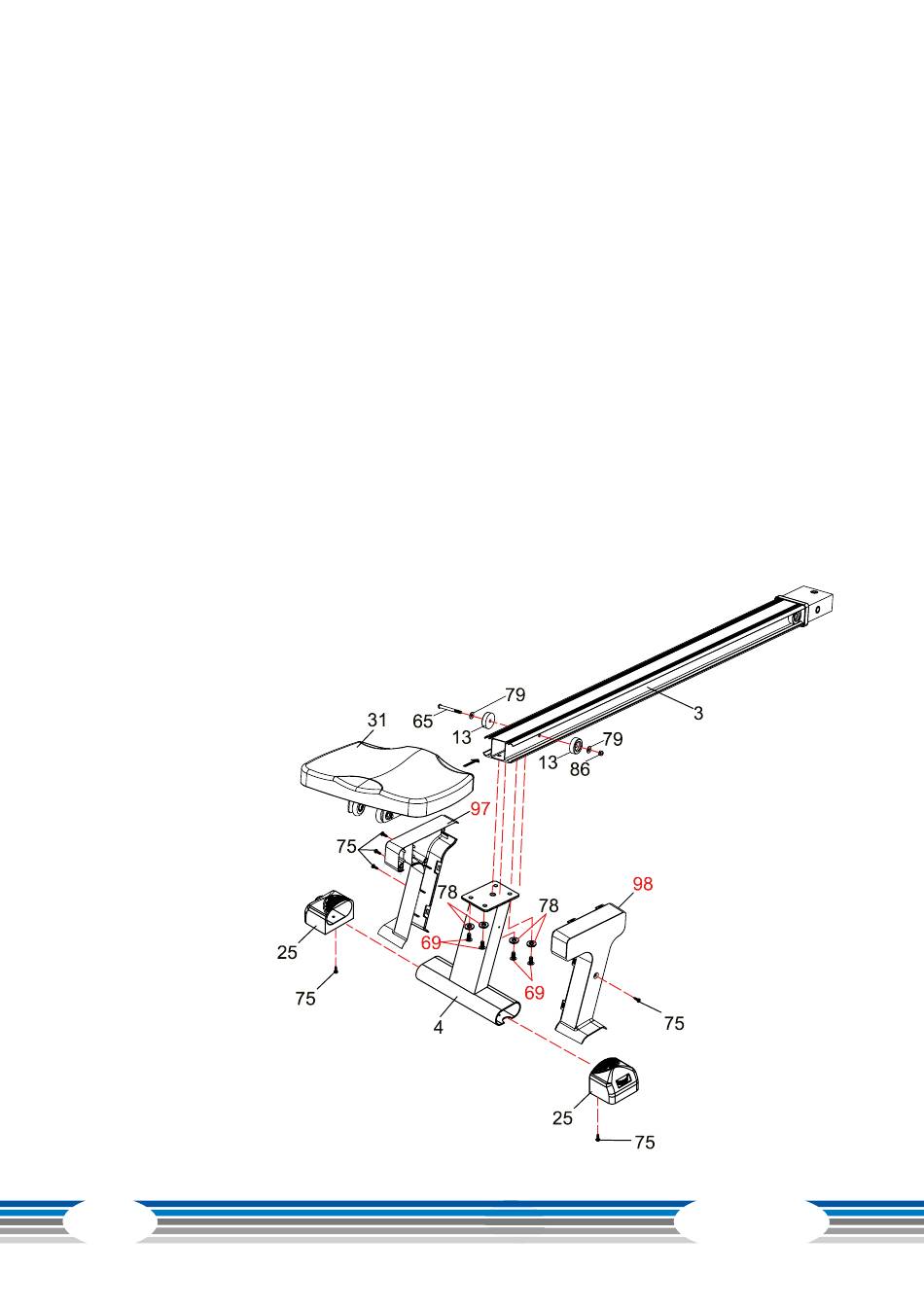

Step 1:
Mount the rear base (4) with four screws (M8 x 1.25 x 15 mm) (69) and washers (78).
Step 2:
Slide the seat (31) on the rail (3). Mount both stoppers (13) on the rail (3) with a screw
(65), two washers (79), and a nut (86).
Step 3:
Mount the left/right cover (97/98) on the rear base (4) with four screws (75).
Remove the two adjustable end caps (25) beforehand.
Step 4:
Mount the two adjustable end caps (25)
with two screws (75). Here you might
have to turn the rail (3).
