Page 1

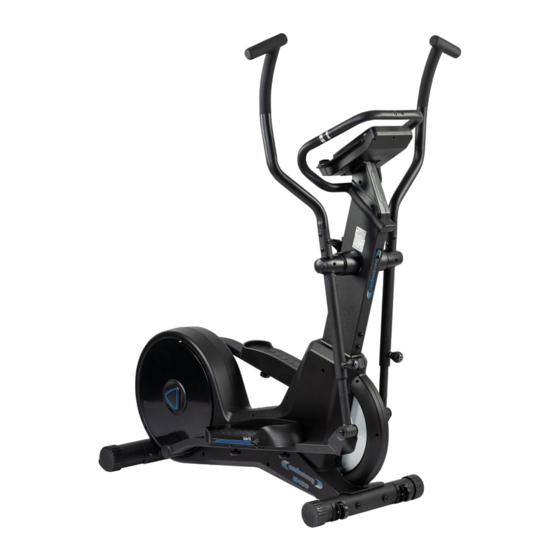

Assembly and Operating Instructions max. 136 kg ~ 90 Min. 70 kg L 126 | W 53 | H 162 CSTEX60TOUCH.01.02 Art. No. CST-EX60-TOUCH Crosstrainer EX60 TOUCH...
Page 3
Train at home no matter what the weather or time of the day. cardiostrong fitness equipment offers training programmes and a variety of equipment for all training levels and all training goals. Further information can be found at www.sport-tiedje.com or www.cardiostrong.de.
3.6.1 Retrieving Apps from the Main Menu 3.6.2 Access to Apps During Your Workout STORAGE AND TRANSPORT General Instructions Transportation Wheels TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES EX60 TOUCH...
Page 5
ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing WARRANTY CONTACT...
Page 6
This notice indicates potentially hazardous situations which, if not avoided, will result in death or serious injuries! NOTICE This notice indicates further useful information. Retain these instructions in a safe place for future reference, maintenance or when ordering replacement parts. EX60 TOUCH...
GENERAL INFORMATION Technical Data TFT display of speed in km/h training time in min training distance in km cadence (rotations per minute) calories burnt in kcal heart rate (when using the hand sensors or a chest strap) Watt resistance level Resistance system: electronic magnetic brake system Resistance level:...
Make sure that nobody is within the range of motion of the equipment during training so as not to endanger you or other persons. ࣑ ATTENTION Do not insert any objects of any kind into the openings of the device. EX60 TOUCH...
Electrical Safety DANGER ⚠ In order to reduce the risk of an electric shock, always unplug the equipment from the mains socket immediately after your workout, before assembly or dismantling, and before maintenance or cleaning. Do not pull on the cable. ⚠...
(over 70%) like swimming pools. A floor protective mat/equipment underlay can help to protect high-quality floor coverings (parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight unevenness. EX60 TOUCH...
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries.
In the event of complaints, the contractual partner must be contacted directly. CAUTION ⚠ If parts of the scope of delivery are missing or damaged, the assembly must not be carried out. EX60 TOUCH...
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. Step 1: Assembly of the rear stabilizer Remove the pre-assembled...
Page 14
Tighten the screws. Step 4: Mounting the side handle bars Mount the side handle bars (G1 and G2) to the support tube (B) using two screws (J5) and one screw (J6) each, see fig. F. Tighten the screws. Fig. F EX60 TOUCH...
Page 15
Step 5: Assembly of the brackets and locking the pedal arms Remove the pre-assemled screws (J7), spring washers (J2) and washers (J3). Mount the bracket (H3) to the right pedal arm using two screws (J7), two spring washers (J2) and two washers (J3). Repeat the previous step for the left side.
Page 16
Repeat the previous step for the left side. Tighten the knobs (H4). ⚠ CAUTION To prevent falls, make sure that the pedals are in the same position on both sides and that the knob (H4) is always tightened firmly. Left (H1) Right (H2) EX60 TOUCH...
Page 17
Step 7: Assembly of the console, handle bars and bottle holder ࣑ ATTENTION Pay attention to not pinch the cables during the next steps. Connect the cables of the handle bars (F1 and F2) to the cables on the console mast (B) and slide both handle bars into the bracket on the console mast (B).
Page 18
Technical errors can result. Plug the cable into the socket on the main frame. Plug the power plug into a wall outlet that complies with the instructions in the chapter on electrical safety. EX60 TOUCH...
OPERATING INSTRUCTIONS NOTICE Familiarise yourself with all the functions and setting options of the device before starting training. Have the proper use of this product explained to you by a specialist. Console Display USB Port 3.5 mm audio jack Display range: 0:00–99:59 TIME Setting range: 0–99 (Minuten) SPEED...
The device must not be used or switched off during the update. Check at regular intervals whether another update is available and perform it as described above. As soon as a new version is available, the icon is white. Otherwise, the icon is grayed out. EX60 TOUCH...
Page 21
Open the factory settings. Here you can set the following functions: WIFI Screen brightness Volume Language Unit (metric or imperial) Update software and app updates ࣑ ATTENTION The console of this fitness device uses software that is perfectly adapted to the equipment. Please do not make any unauthorised modifications, such as the installation of external apps.
The values for time, distance and calories are incremented. Tap the arrow buttons to increase or decrease resistance. Tap Pause to pause the program. Tap Continue to resume the workout. Tap Home to return to the main menu. EX60 TOUCH...
3.4.2 Manual Programme There are several setting options for the manual program. You can decide whether you want to train on one or more values. Values that have been set are counted down and the remaining values are counted up accordingly. As soon as a set target value is reached, the programme is automatically terminated.
Set the desired training time. Tap Start to start the program. Tap the arrow buttons to increase or decrease the resistance. Tap Pause to pause the program. Tap Continue to resume the workout. Tap Home to return to the main menu. EX60 TOUCH...
3.4.5 Heart Rate Controlled Programs ⚠ WARNING Your training equipment is not a medical device. The heart rate measurement of this equipment may be inaccurate. Various factors can affect the accuracy of the heart rate measurement. The heart rate measurement serves only as a training aid. There are four heart rate programmes available.
Tap Continue and the app will open. To continue your workout, tap the arrow on the left side of the screen and tap Quick Start. The selected app now runs in parallel with the running program. EX60 TOUCH...
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ࣑...
Check whether there is an update for the software (TFT) and carry it out. Software version not up to Software problems date If the problems persist, contact your contract partner. EX60 TOUCH...
Eliminate sources of interference (e.g. Sources of interference in mobile phone, WLAN, lawn mower the room and vacuum cleaner robot, etc..) unsuitable chest strap Use a suitable chest strap (see RECOMMENDED ACCESSORIES). Wrong position of chest No pulse display Reposition chest strap...
Alternatively, you can use the QR code provided. Of course, you can also contact our customer service: by telephone, e-mail, in one of our branches or via our social media channels. We will be happy to advise you! chest strap floor mat chest strap contact gel silicone spray towels EX60 TOUCH...
Page 31
The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: cardiostrong / crosstrainer Model Name: EX60 Touch Article Number: CST-EX60-TOUCH...
Page 32
WAVE WASHER Φ10.2*Φ13*0.3T FIXING SHEET SCREW MOTOR TURNING PLATE SCREW PIPE SCREW DECORATION COVER L-SHAPED BRACKET DC WIRE SCREW BELT L-SHAPED BRACKET MAGNETIC FLYWHEEL SCREW AXLE CENTRAL SUPPORT TUBE BEARING SENSOR WIRE 850mm WASHER SENSOR WIRE 350mm BUSH END CAP EX60 TOUCH...
Page 33
SCREW HANDLE BAR SPONGE SCREW HANDLE BAR SPONGE END CAP SCREW END CAP HANDLE PLUSE SENSOR DECORATION COVER SENSOR HOUSING AXLE SENSOR WIRE 600mm BEARING SIDE HANDLE BAR ( L ) WASHER SIDE HANDLE BAR ( R ) SPRING WASHER KNOB SCREW SIDE HANDLE BAR SPONGE...
Page 36
Ownership of equipment or parts of equipment which have been replaced is transferred to us. The warranty period is not extended nor does a new warranty period begin following repair or replacement under the warranty. EX60 TOUCH...
Page 37
Warranty Conditions For the warranty to be valid, the following steps must be taken: Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance.
Page 38
Mo - Fr 08:00 - 18:00 09:00 - 18:00 09:00 - 18:00 Please find a detailed overview including address and opening hours for all stores of the Sport-Tiedje Group in Germany and abroad on the following website: www.sport-tiedje.com/en/stores EX60 TOUCH...
Page 39
LIVE FITNESS WEBSHOP AND SOCIAL MEDIA Sport-Tiedje is Europe’s largest specialist store for www.sport-tiedje.co.uk home fitness equipment with currently 80 stores www.sport-tiedje.de/blog and one of the world’s most renowned online mail order companies for fitness equipment. Private customers order via the 25 web shops www.facebook.com/SportTiedje in the respective national language or have their desired equpiment assembled on site.
