ZYBO™ FPGA Board Reference Manual
MIO
Buttons
Buttons
Slide
Switches
The high-efficiency LEDs are anode-connected to the Zynq via 330-ohm resistors, so they will turn on when a logic
high voltage is applied to their respective I/O pin. Additional LEDs that are not user-accessible indicate power-on,
FPGA programming status, and USB and Ethernet port status.
The LED and two pushbuttons attached directly to the PS are accessed using the Zynq GPIO controller. This core is
described in full in Chapter 14 of the Zynq Technical Reference Manual.
14 Audio
An Analog Devices SSM2603 Audio Codec provides integrated digital audio processing to the Zynq-7000 AP SoC. It
allows for stereo record and playback at sample rates from 8 kHz to 96 kHz.
On the analog side, the codec connects to three 3.5 mm standard audio jacks. There are two inputs: a mono
microphone and a stereo line in. There is one stereo output, the headphone jack. Analog power is provided by a
dedicated linear power supply (IC6).
Audio Jack
J5
J6
J7
Copyright Digilent, Inc. All rights reserved.
Other product and company names mentioned may be trademarks of their respective owners.
3.3V
MIO51
BTN5
MIO50
BTN4
3.3V
Y16
BTN3
V16
BTN2
P16
BTN1
R18
BTN0
3.3V
SW3 T16
SW2 W13
SW1 P15
G15
SW0

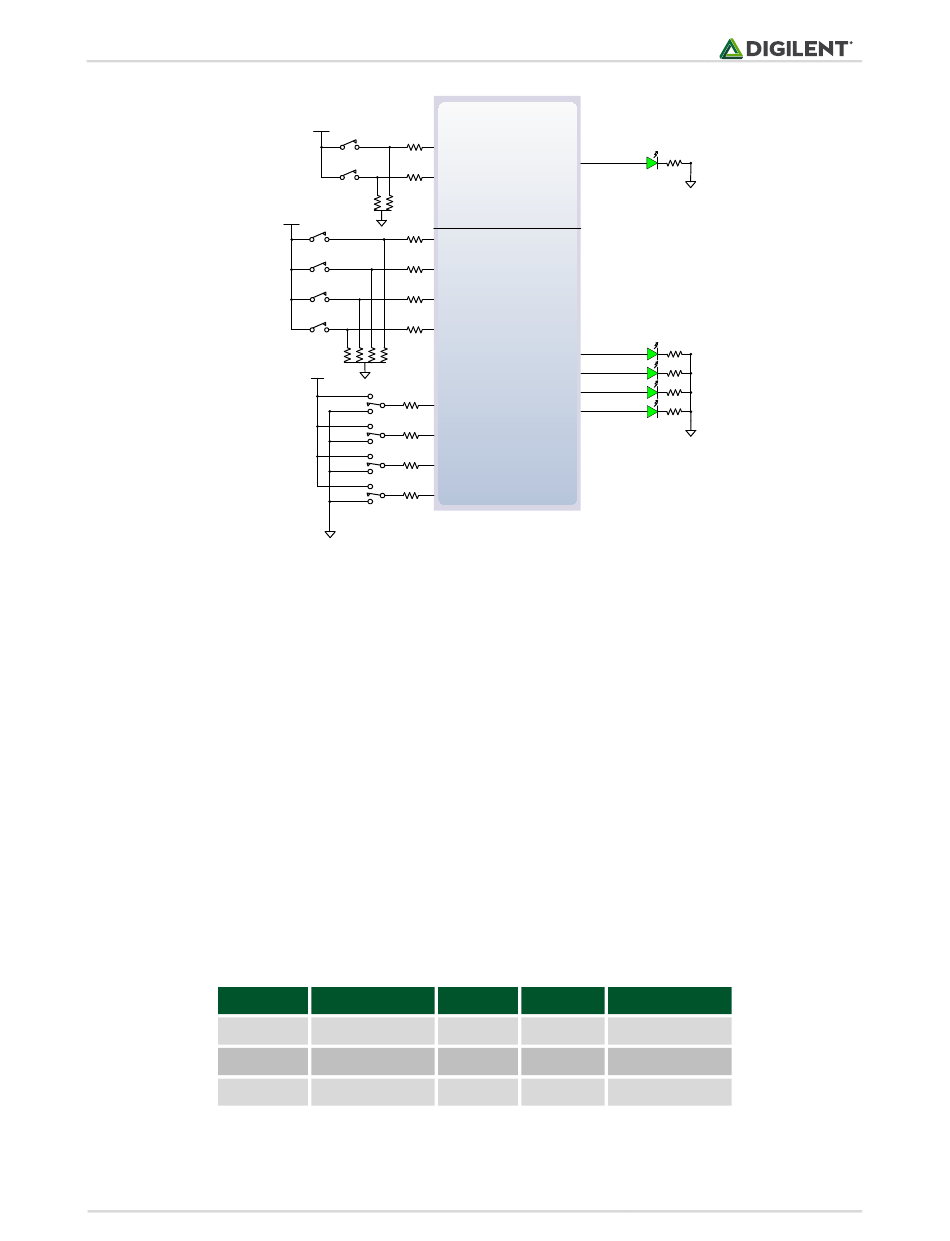

Figure 14. ZYBO GPIO.
Description Channels
Headphone Out Stereo
Microphone In Mono
Line In Stereo
Table 7. Analog audio signals.
PS
MIO
LED
LD12
MIO7
PL
LEDs
LD3
D18
LD2
G14
LD1
M15
LD0
M14
Zynq
Color SSM2603 pin
Black L/RHPOUT
Pink MICIN, MICBIAS
Light Blue L/RLINEIN
