6.3 LCD screen

All information is displayed on the LCD screen. The background illumination of LCD screen will go
out to save power if there is not button operation in 15 seconds. But it can be activated by pressing
any button. Press "ENT" to enter into the main interface if the background illumination is on, as
shown in Figure 6.3. All parameters can be viewed and set on the interface.
There are main interface and menu interfaces on the LCD screen, of which the main interface is
the default one after power on, while the menu interfaces are used to watch and set parameters or
other manual operation, such as viewing the monitoring parameters, history record, system
information, statistics and fault information and setting the displayed language, time,
communication address, password and factory defaults.
The main interface of the LCD screen is shown as the Figure above:
(1) The curve graph display area displays the power change curve of current day;
(2) Text parameter display area displays the key running parameters of current inverter
operation, which displays three rows of parameters every time. Under running or sleep
state of the inverter, the displayed content rolls up per screen at 3s interval; press "
" " to look through the displayed content;

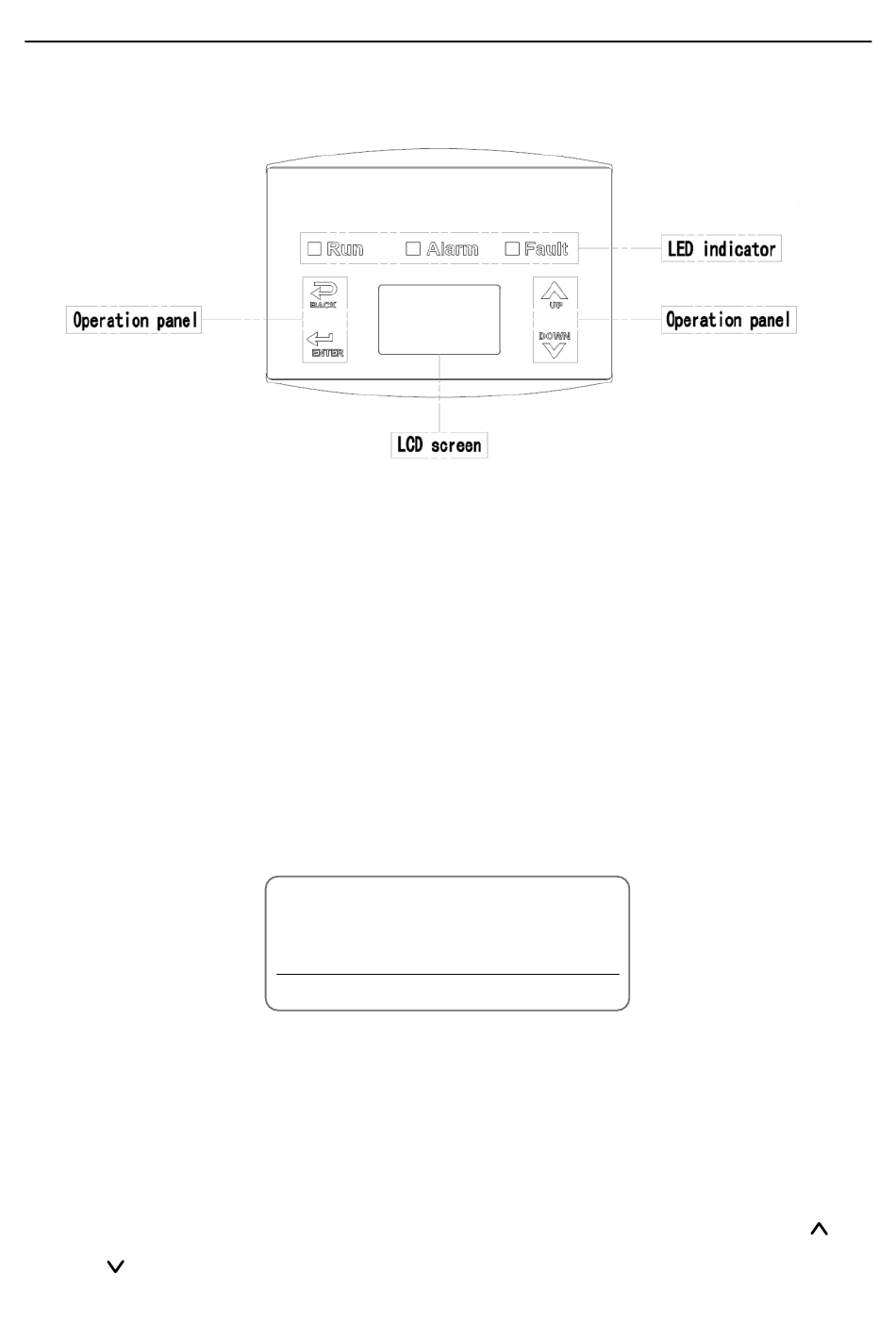

Figure 6.1 Operation panel
Text Parameter
Display Area
Status Area
Figure 6.2 Main interface
37
Fault Code
Display panel
" or
