(3) State display area displays current running state of the inverter, which can display
"self-inspection", "grid-connected power generation", "alarm", "fault", "OFF" state;
(4) Dynamic fault code and menu entrance. When the state display area displays "alarm" or
"fault", the dynamic fault code area will display corresponding fault code (display up to 8
fault codes).

6.4 Functions operation

Most of the parameters can be viewed and set through the LCD screen and operation panel.

6.4.1 Monitoring parameters

Press " " and " " in the main interface to select "Monit Param", and then press "ENT" to view
the parameters which is shown in Figure 6.4. Go the front or next page through "
return through "ESC".

6.4.2 History

Press " " and " " in the main interface to select "History", and then press "ENT" to view the
parameters which is shown in Figure 6.5.
"Historical record" can display 32 pieces of historical information, press "
M a i n M e n u
M o n i t P a r a m
S t a t i s t i c s
S e t u p
S y s t e m I n f o
F a u l t I n f o

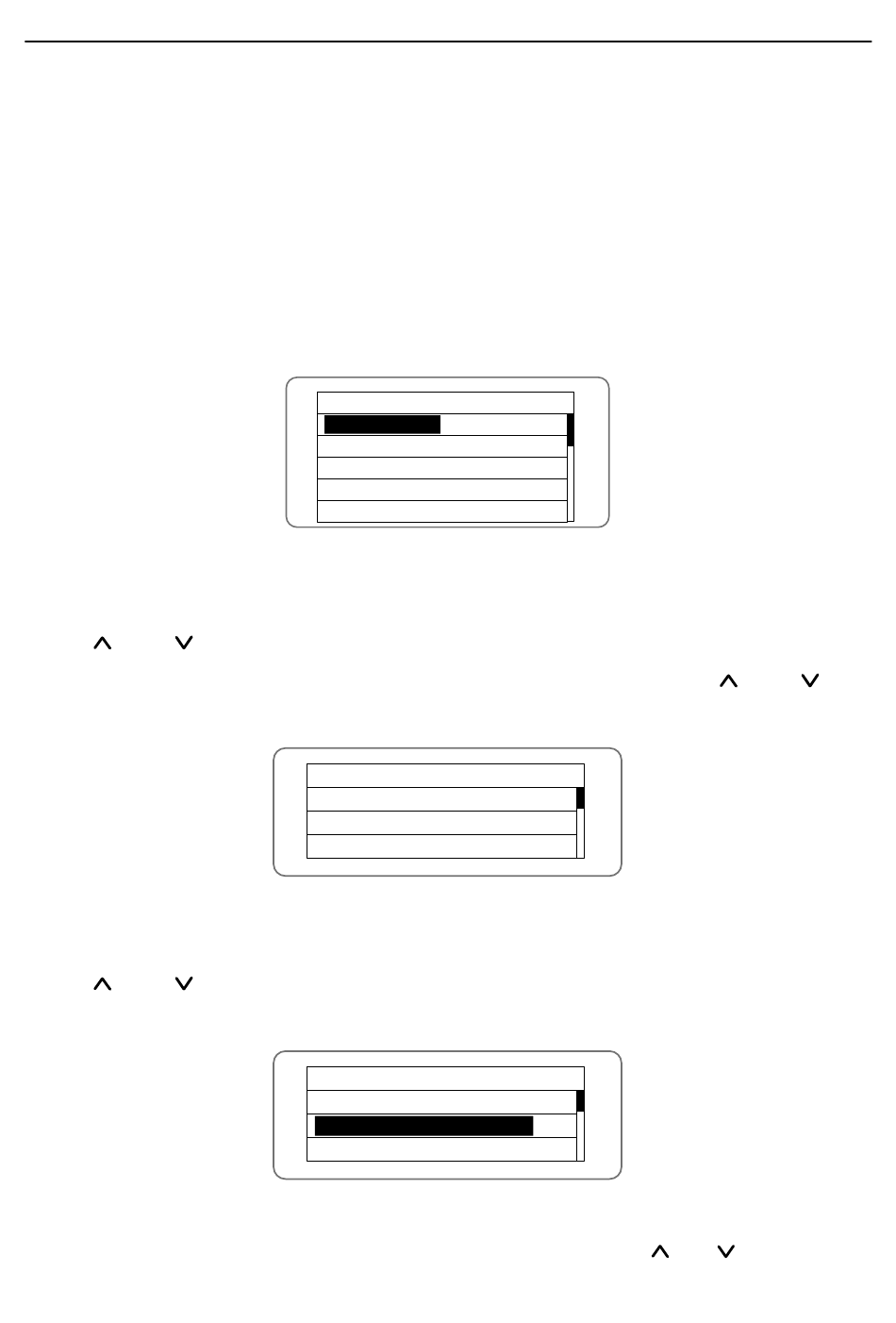

Figure 6.3 Main interface
C u r r e n t S t a t e
E - t o d : 0 W h
$ - t o d : € 0 . 0 0
P - i n : 0 . 0 0 k W
Figure 6.4 Monitoring parameters
H i s t o r y
2 0 1 2 / 0 1 / 0 5 1 1 : 3 2 : 1 6
A 0 0 5 : G r i d u n d e r f r e q
Figure 6.5 History parameters
