Ensure there is sufficient space for heat-releasing. In generally, below space requirement should
be met:
Table 4-3 Detailed installation space
Lateral
Top
Bottom
 Do not open the cover of the inverter or replace any part as incomplete inverter
may cause electric shock and damage the device during operation.

4.2.3 Cable specification

In order to regulate and compatible with the inverter AC/DC connector or
terminal block specifications, below requirements on the AC/DC cable connected

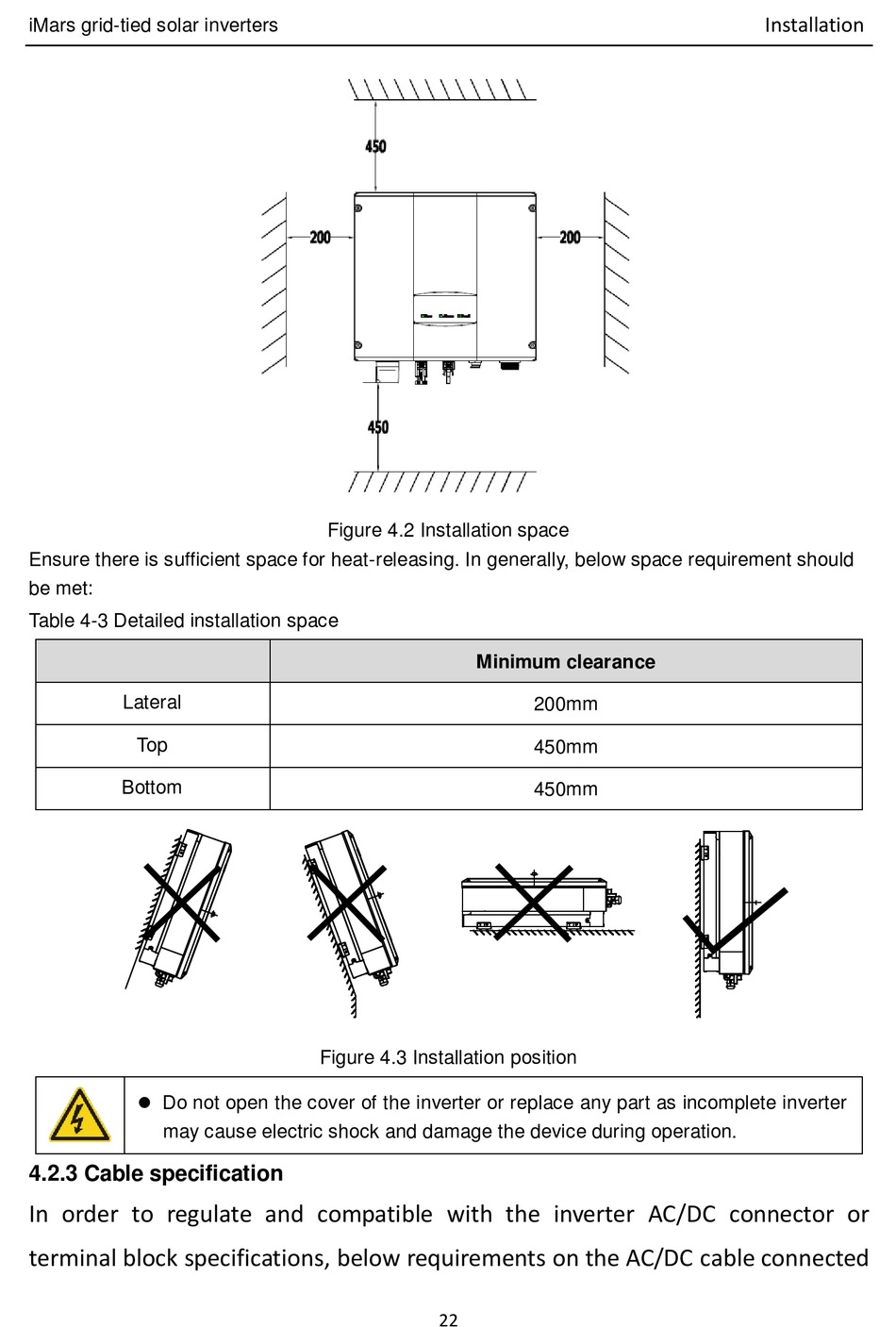

Figure 4.2 Installation space
Minimum clearance
Figure 4.3 Installation position
22
200mm
450mm
450mm
