7 Monitoring communication

This chapter describes the communication connection of inverter and monitoring
system (Industrial master, private computers, smart phones and so on).
The standard communication mode of iMars grid-tied solar inverter is RS485 which includes
"RS485-M" and "RS485-S" ports. The RS485-M ports can communicate with private computers,
smart phones and so on. The system monitoring solution is shown as Figure 7.1.

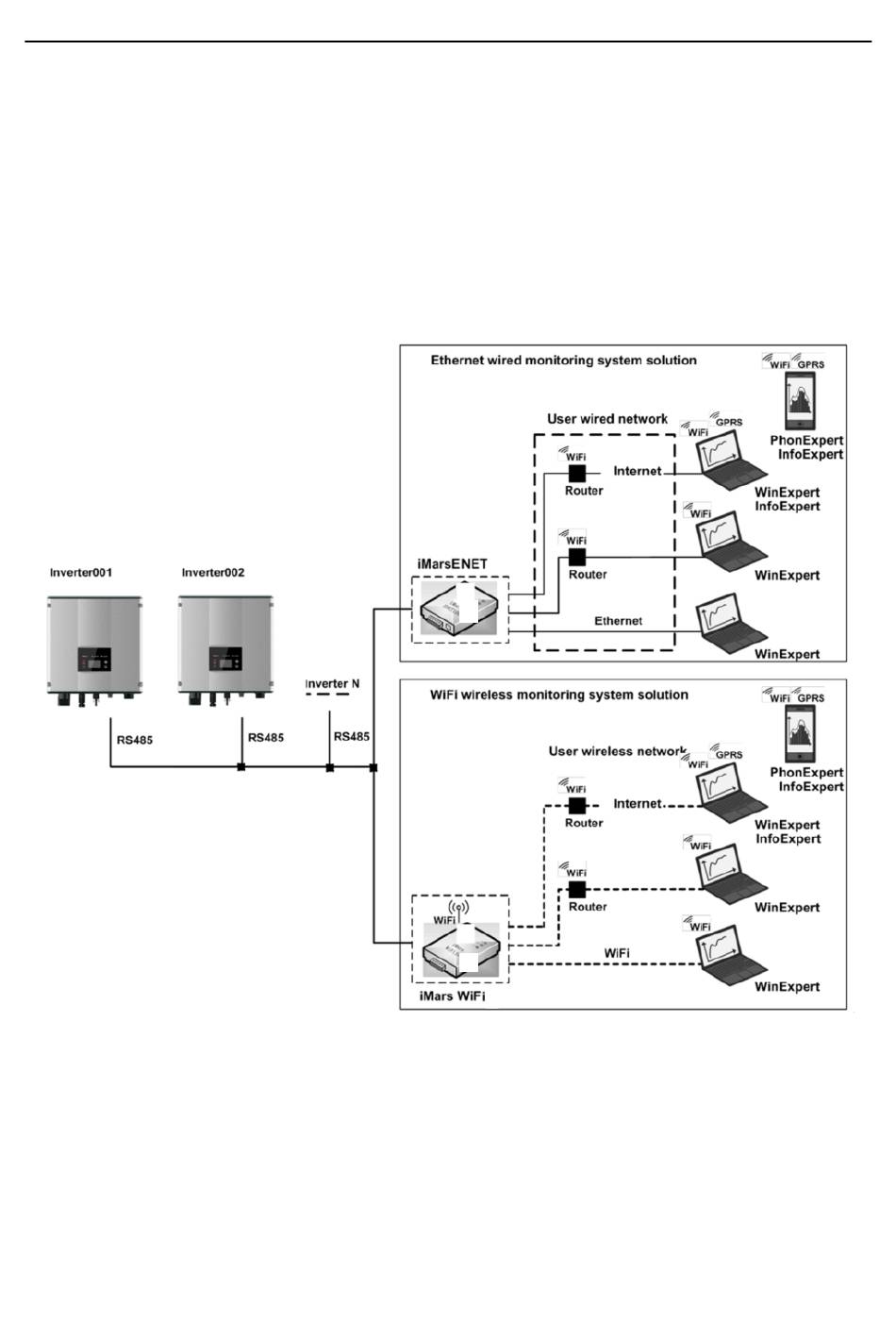

Figure 7.1 Monitoring system of inverter
