Step 6 — Position the MS-1 Scan Engine
• Set up a symbol at the distance you will be using in your application. Refer to the
Ranges for your MS-1 model (High Density or Low Density) to determine the optimal
distance.
Note: If you are using an Interleaved 2 of 5 symbol, verify that the number or characters
being scanned matches the symbol length enabled for Interleaved 2/5 (default is 10 and 6).
• Avoid bright light or infrared light from other sources, including other readers.
• Pitch the MS-1 or symbol at a minimum of ±15° to avoid specular reflection (the return of
direct, non-diffused light).
• Avoid excessive skew or pitch. Maximum skew is ±30°; maximum pitch is ±30°.
Skew axis
MS-1

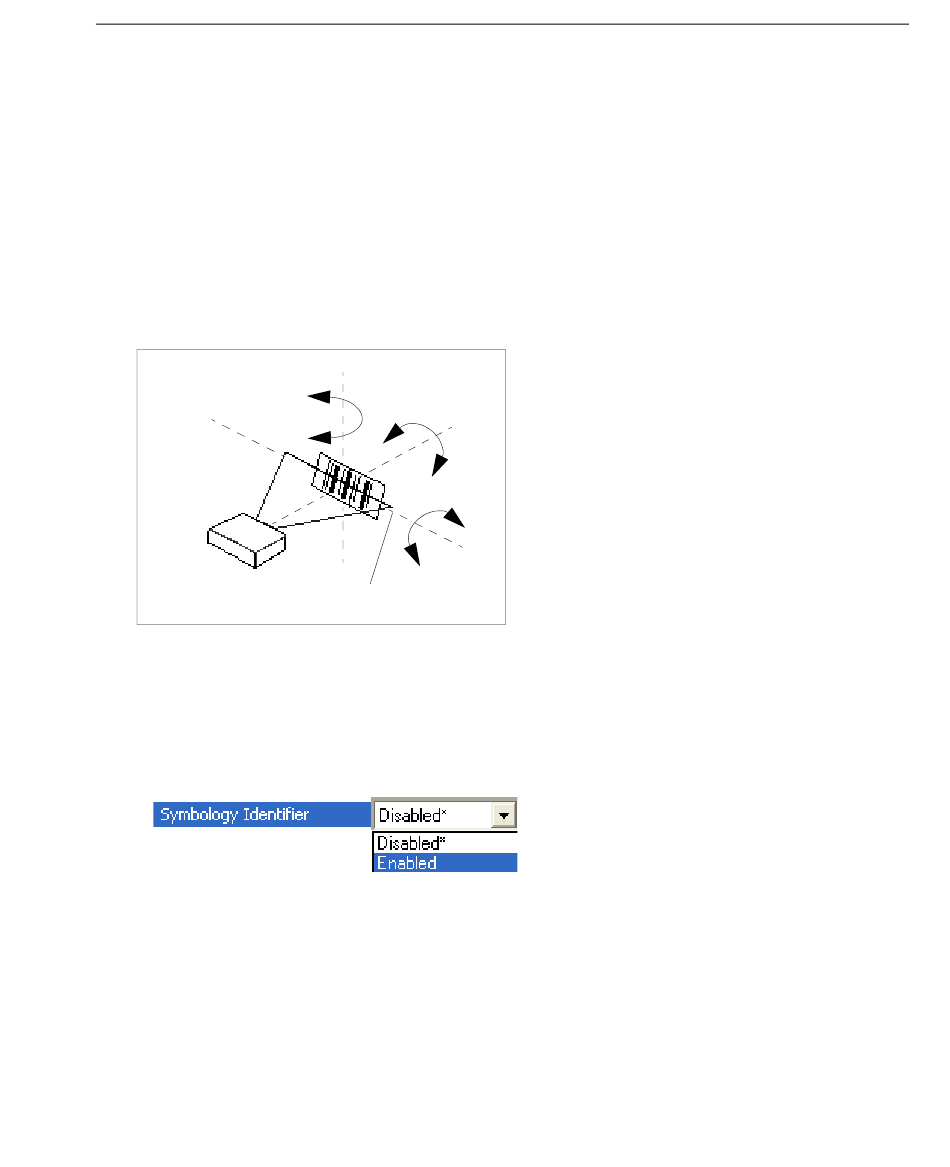

MS-1 and Symbol Orientation
Note: Code 39 is the default symbology enabled. If you are uncertain of your symbology,
perform the following steps:
1. Enable all symbologies using ESP.
2. Enable Symbology Identifier
3. Decode the symbol and compare the symbology identifier character to the list on page
7-22 to determine your symbology.
4. Disable all other symbologies.
MS-1 Scan Engine User Manual
Tilt
axis
Pitch
axis
Scan line
at the bottom of ESP's Symbologies tree control.
Quick Start
Read
1-7
