General Specifications
Appendix A — General Specifications
Mechanical
Height: 0.45" (11.5 mm)
Width: 1.26" (32 mm)
Length: 0.94" (24 mm)
Weight: 0.3 oz. (8.4 g)
Design
Sensor: CCD linear image sensor
Optics: 660 nm visible LED, bright and sharp
scan line
Scanning Performance
Scan Rate: Up to 530 scans/sec
Decode Rate: Up to 55 decodes/sec
Min. X Dimension: Down to 3.3 mil (0.084 mm)
on Code 39
Depth of Field: 1.0 to 13" mm (25 to 330 mm)
Symbol Width: Up to 7" (178 mm) on 20 mil (0.5 mm)
symbol
Communications
Interface: RS-232 TTL, USB 1.1 (Keyboard Mode;
Virtual COM serial emulation also supported)
Connector
Type: 12-Pin ZIF connector
Symbologies
UPC (E and A), EAN, Code 39, Code 128, EAN-128,
Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of
5, Codabar, Code 93, Plessey, GS1 DataBar,
PDF417, China Postal Code
Environmental
Operating Tempurature: –20° to 50° C (–4° to 122° F)
Storage Tempurature: –30° to 60° C (–22° to 140° F)
Relative Humidity: 20% to 85% (non-condensing)
Shock: 2,000G
Vibration: 50G r.m.s.
CE Mark
Immunity Designed for: EN 55024:98 ITE Immunity
Standard
Radiated and Conducted Emissions Designed for:
EN 55022:98 ITE Disturbances Class B
Electrical
Power: 5V +/– 5%, 300 mV p-p max. ripple, 150
mA @ 5V (typ.)
Start-Up Time: 175 ms
A-2

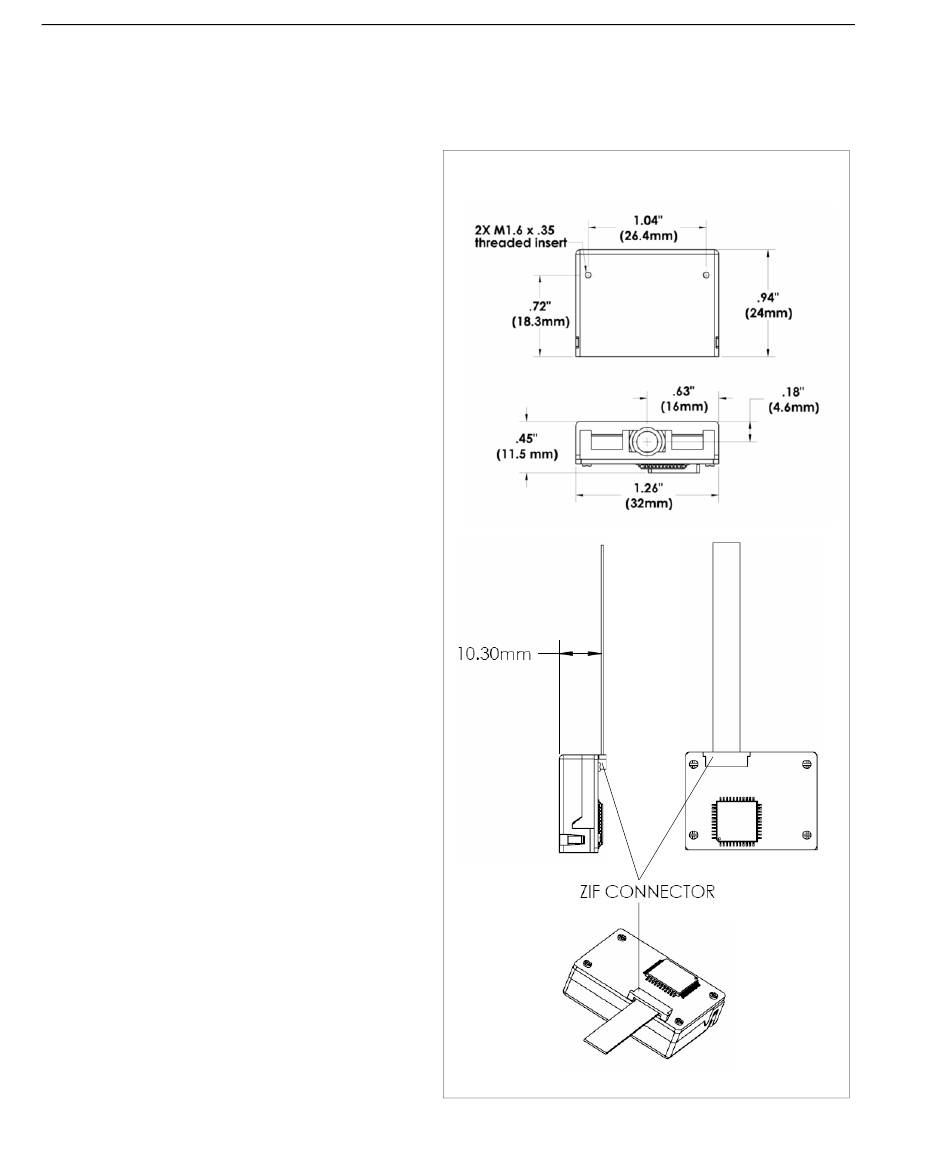

Note: Nominal dimensions shown.
Typical tolerances apply.
Base
Front
Location of ZIF Connector
MS-1 Scan Engine Dimensions
