Ethernet/Ip And Sms Text Messaging; Creating A New Rslogix 5000 Project - ProSoft Technology ICX35-HWC User Manual

ICX35-HWC ♦ Industrial Cellular Gateway
3G/4G LTE
6

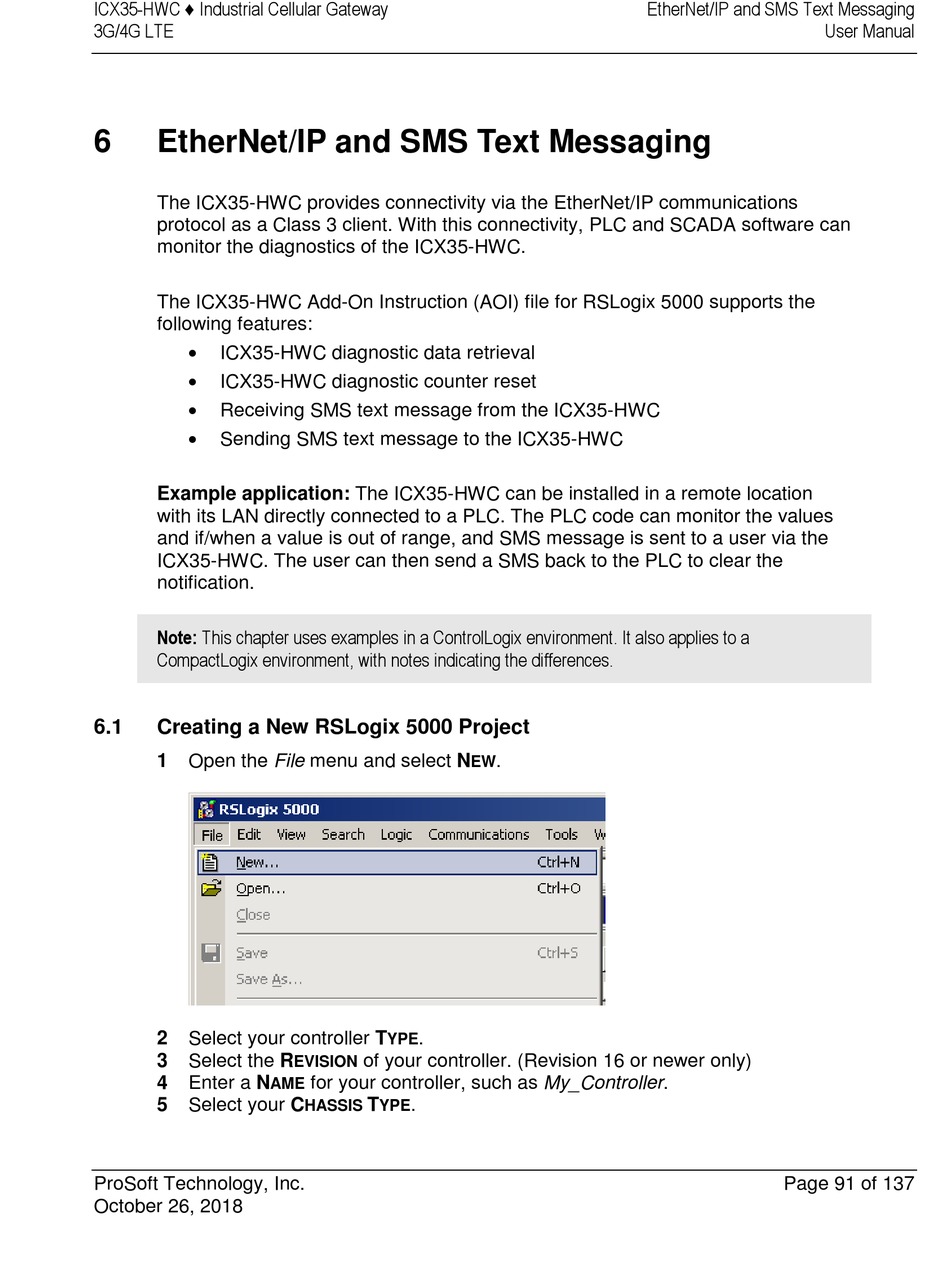

EtherNet/IP and SMS Text Messaging

The ICX35-HWC provides connectivity via the EtherNet/IP communications
protocol as a Class 3 client. With this connectivity, PLC and SCADA software can
monitor the diagnostics of the ICX35-HWC.
The ICX35-HWC Add-On Instruction (AOI) file for RSLogix 5000 supports the
following features:

ICX35-HWC diagnostic data retrieval

ICX35-HWC diagnostic counter reset

Receiving SMS text message from the ICX35-HWC

Sending SMS text message to the ICX35-HWC
Example application: The ICX35-HWC can be installed in a remote location
with its LAN directly connected to a PLC. The PLC code can monitor the values
and if/when a value is out of range, and SMS message is sent to a user via the
ICX35-HWC. The user can then send a SMS back to the PLC to clear the
notification.
Note: This chapter uses examples in a ControlLogix environment. It also applies to a
CompactLogix environment, with notes indicating the differences.
6.1

Creating a New RSLogix 5000 Project

1 Open the File menu and select N
2 Select your controller T
3 Select the R
4 Enter a N
AME
5 Select your C
ProSoft Technology, Inc.
October 26, 2018
EW
.
YPE
of your controller. (Revision 16 or newer only)
EVISION
for your controller, such as My_Controller.
T .
HASSIS YPE
EtherNet/IP and SMS Text Messaging
.
User Manual
Page 91 of 137
