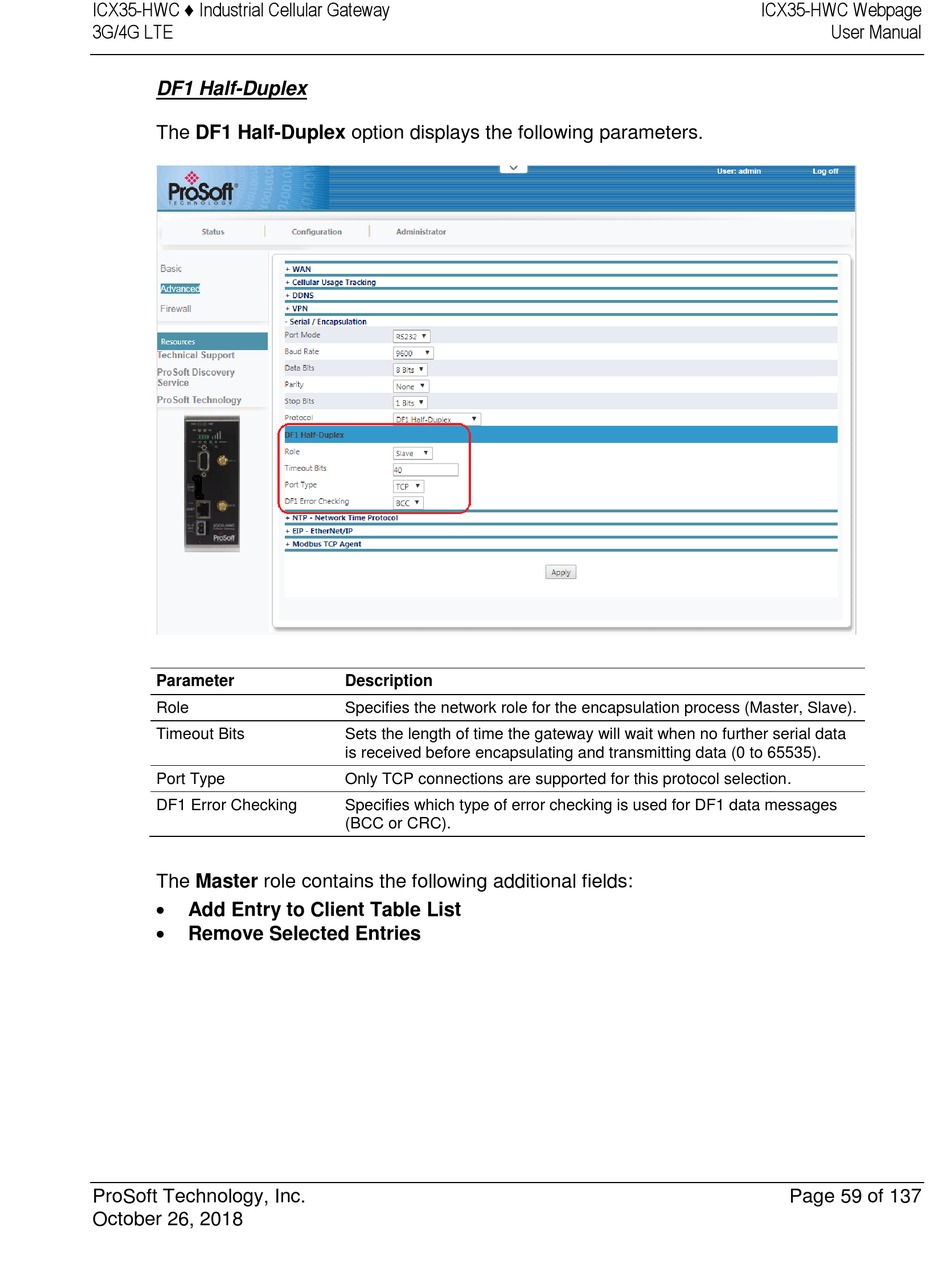

DF1 Half-Duplex
The DF1 Half-Duplex option displays the following parameters.
Parameter
Role
Timeout Bits
Port Type
DF1 Error Checking
The Master role contains the following additional fields:

Add Entry to Client Table List

Remove Selected Entries
ProSoft Technology, Inc.
October 26, 2018
Description
Specifies the network role for the encapsulation process (Master, Slave).
Sets the length of time the gateway will wait when no further serial data
is received before encapsulating and transmitting data (0 to 65535).
Only TCP connections are supported for this protocol selection.
Specifies which type of error checking is used for DF1 data messages
(BCC or CRC).
