ICX35-HWC Tech Notes (Example Configurations)
User Manual
To configure the ICX35-HWC, you must supply:

WAN IP – This number is supplied by the cellular provider.

Module Name

APN Name – This is provided by the cellular provider

LAN IP

End Device IP Address
To configure the end device, you must supply:

IP Address

Mask

Gateway IP Address

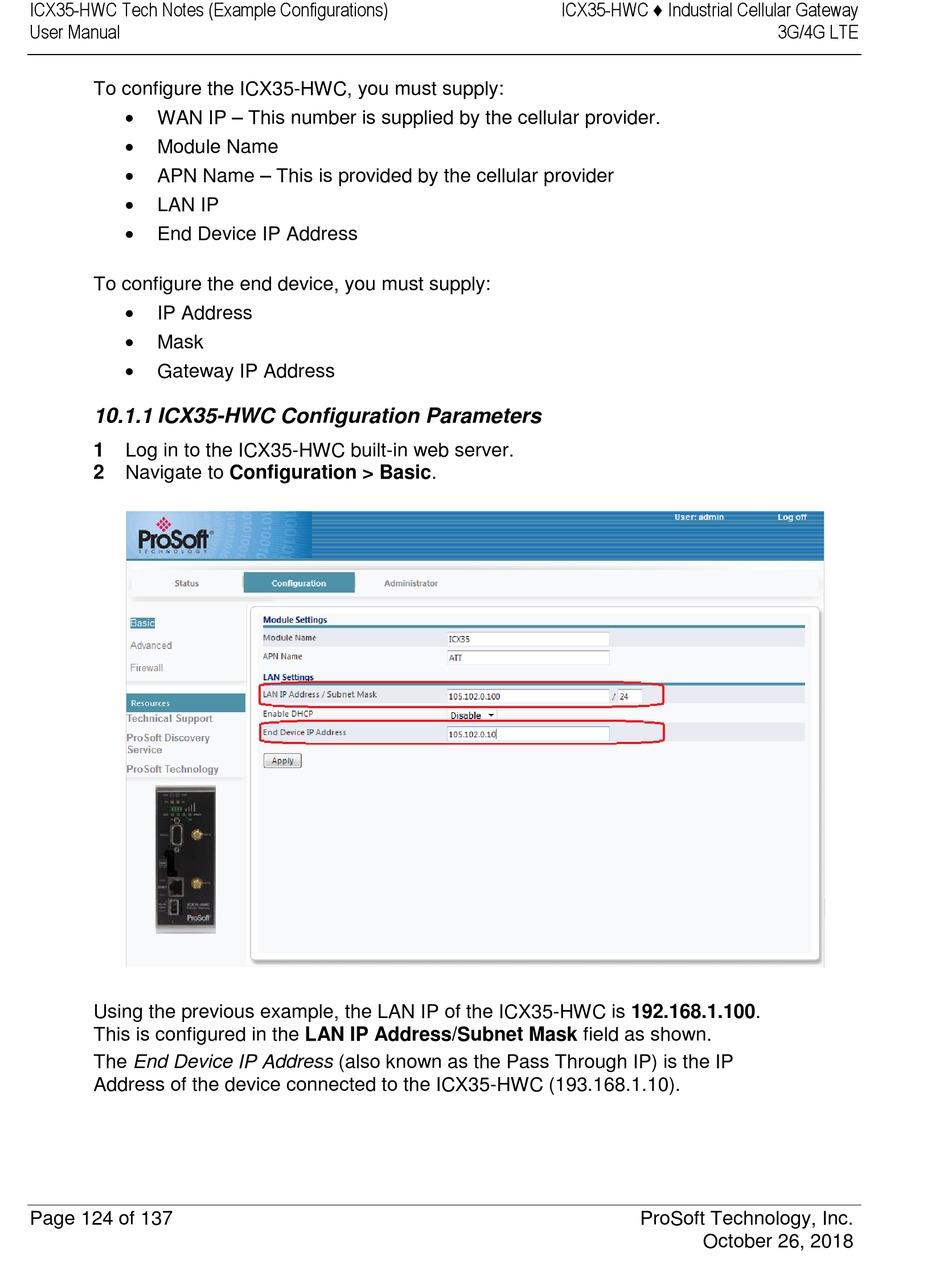

10.1.1 ICX35-HWC Configuration Parameters

1 Log in to the ICX35-HWC built-in web server.
2 Navigate to Configuration > Basic.
Using the previous example, the LAN IP of the ICX35-HWC is 192.168.1.100.
This is configured in the LAN IP Address/Subnet Mask field as shown.
The End Device IP Address (also known as the Pass Through IP) is the IP
Address of the device connected to the ICX35-HWC (193.168.1.10).
