In this scenario, Virtual OpenVPN addresses are assigned by the VPN server. If
the end device 172.020.000.220 wants to communicate with 192.168.000.211, it
must address the device through the ICX35-HWC VPN address. The ICX35-
HWC routes the request as it would a Pass Through device.
You must establish standard End Device-to-End Device communications before
attempting to configure an OpenVPN tunnel.

10.2.1 ICX35-1 Configuration Parameters

In this scenario, configure the ICX35-1 for Pass Through.

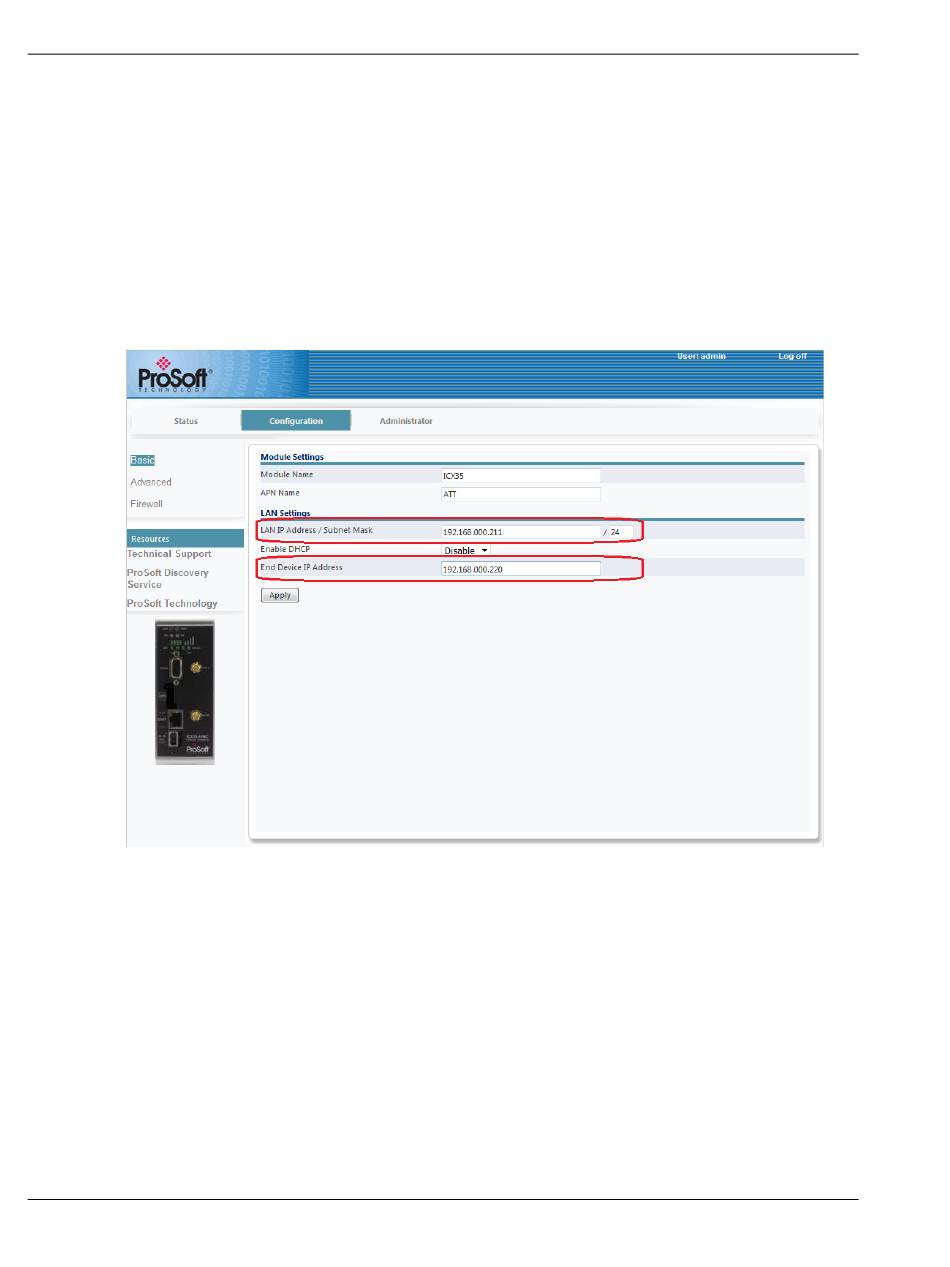

1 Log into the ICX35-1 internal web server.
2 Navigate to Configuration > Basic.
3 Enter the LAN IP of the ICX35-1 in the LAN IP Address/Subnet Mask field.
4 Enter the LAN IP of End Device 1 in the End Device IP Address field. This
address must match the IP address configured on the end device. In this
case, 192.168.000.211 as shown in the diagram.
5 Perform the same procedure on the ICX35-2 using the LAN IP of the ICX35-2
and the End Device IP as shown.
